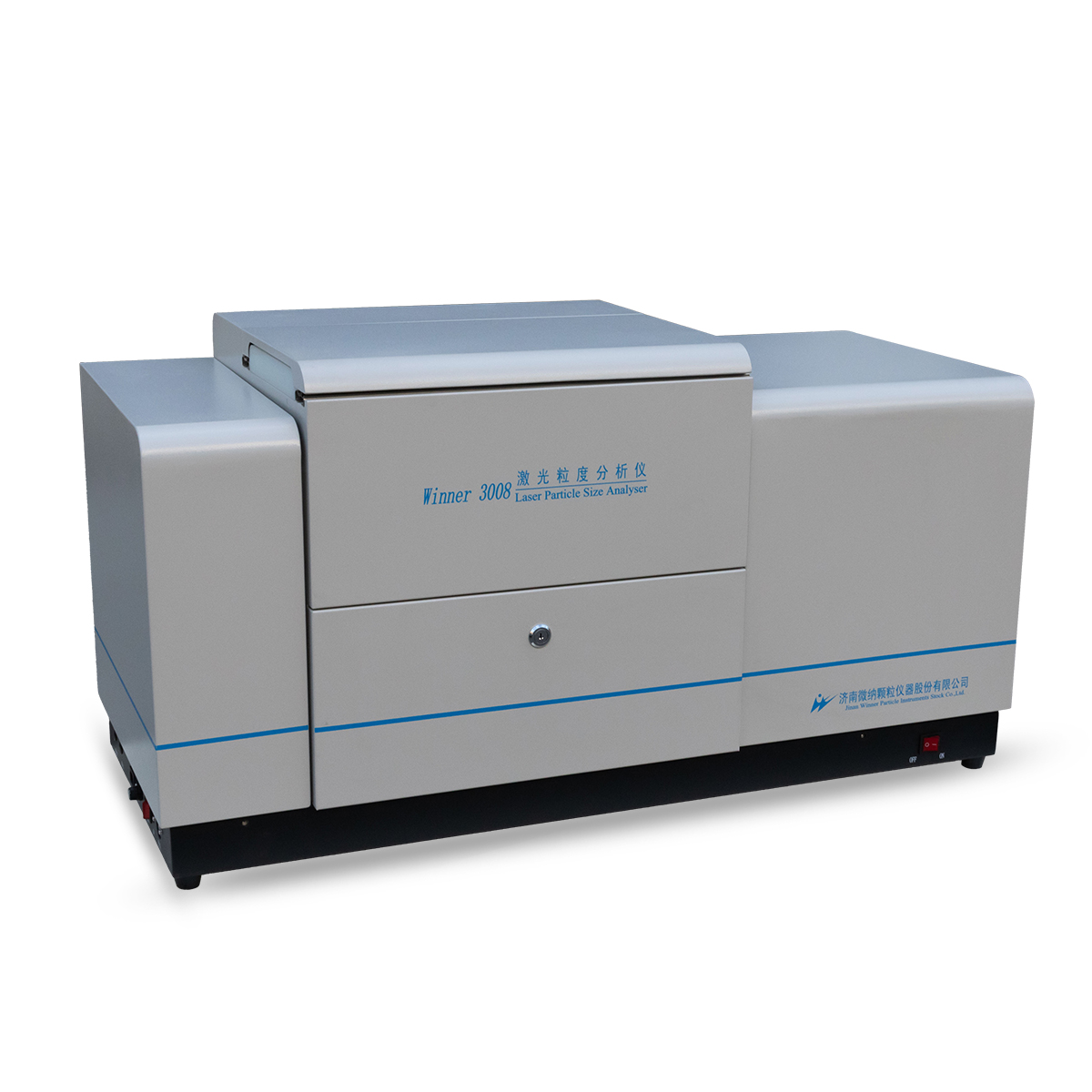

  • Winner2008B Wet Dispersion Laser Particle Size Analyzer

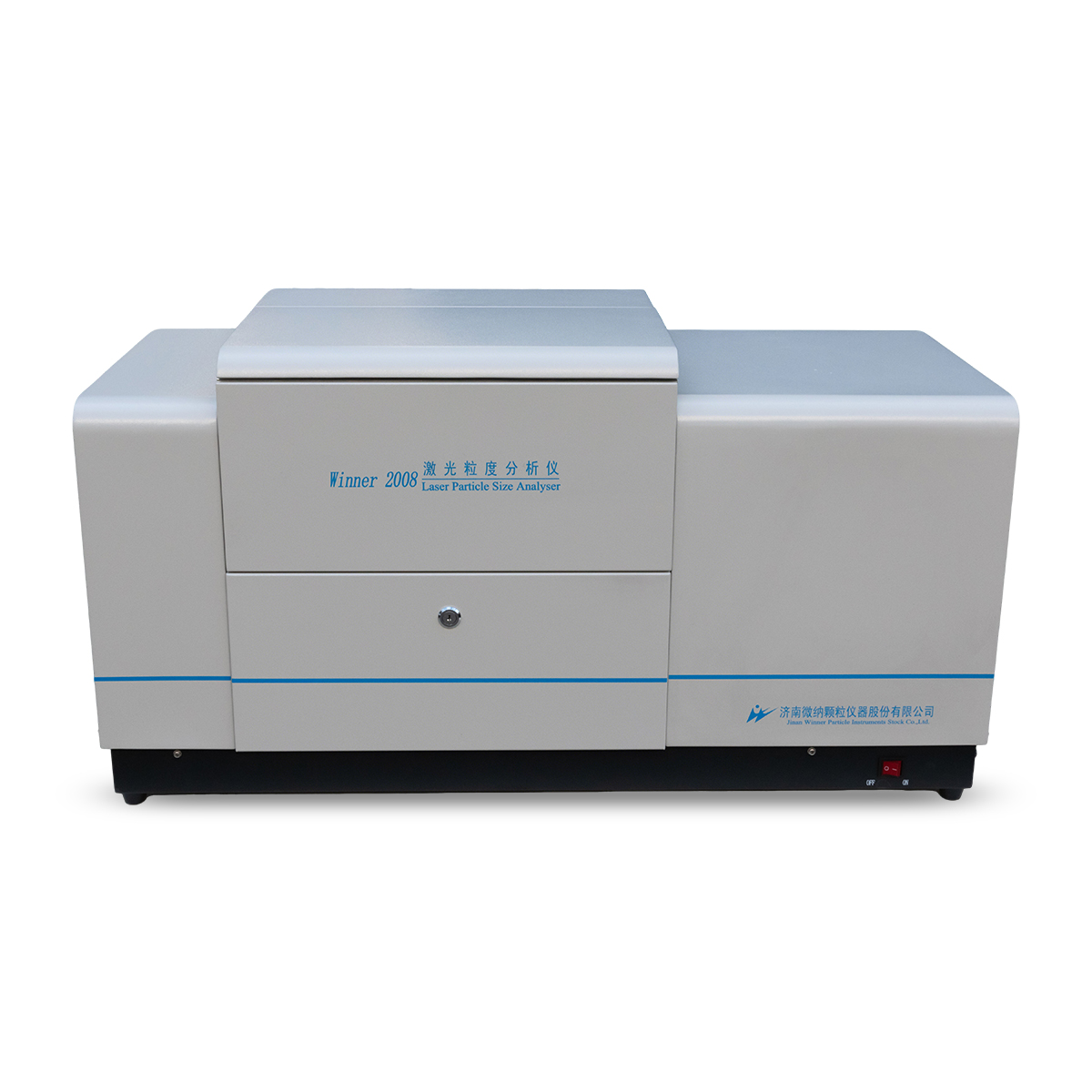

  • Winner2008B Wet Dispersion Laser Particle Size Analyzer

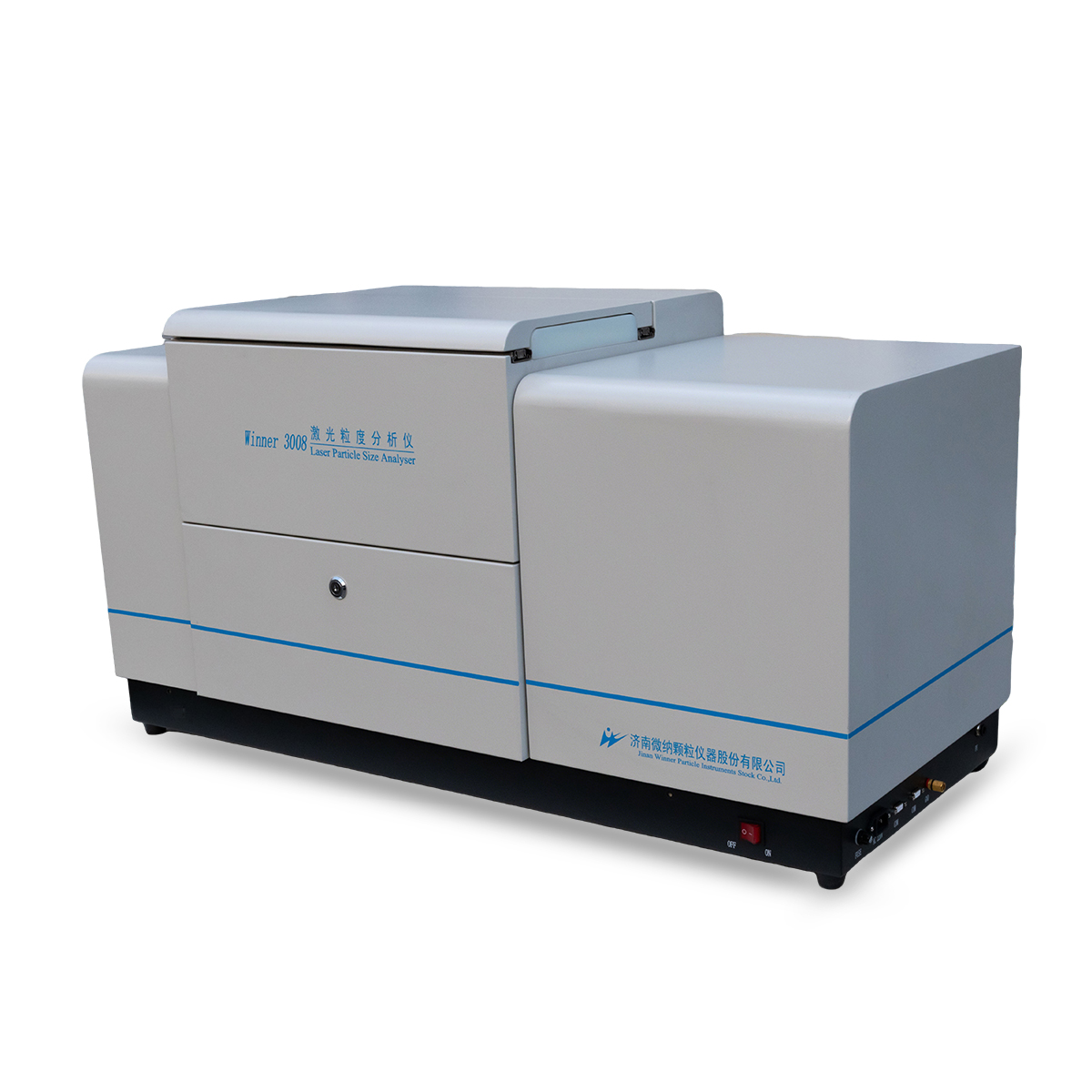

  • Winner2008B Wet Dispersion Laser Particle Size Analyzer

Winner2008B Wet Dispersion Laser Particle Size Analyzer

Winner2008A full automatic wet laser particle size analyzer adopt MIE scattering principle, measure size is from 0.01μm to 2000 μm, Which offer reliable and repeatable particle size analysis for a diverse range of applications.It use dual-beam& multiple spectral detection systems and side light scatter test technology to significantly improve precision and performance of test, on behalf of the domestic advanced level in the field.

Products Description

Brief introduction:

Winner2008A full automatic wet laser particle size analyzer adopt MIE scattering principle, measure size is from 0.01μm to 2000 μm, Which offer reliable and repeatable particle size analysis for a diverse range of applications.It use dual-beam& multiple spectral detection systems and side light scatter test technology to significantly improve precision and performance of test, on behalf of the domestic advanced level in the field.


Main Specifications:

Model NameWinner2008AWinner2008B
StandardISO13320-1:2009, GB/T19077.1-2016, Q/JWN001-2020
PrincipleMIE scattering principle
Measuring Range0.01μm-2000μm0.01μm-1200μm
Channels Number127127 (different photo detectors & optical light path)
Accuracy error<0.5% (Deviation of D50 on national standard sample)
Repeatability error<0.5% (Deviation of D50 on national standard sample )
Light sourceHigh performance He-Ne Laser (λ= 632.8nm, P>2MW)Lifetime>25000hours

Dispersion Method

(Can be upgraded to solvent type)

UltrasonicFrequency:40KHz Power:35W, Time: ≥1S ,Anti-dry function
StirRevolutions Speed: 0-300RPM (Adjustable)
CirculateRated Flow:8L/min Rated Power:10W
Sample PoolVolume:350mL
Micro-Sample PoolVolume: 10mL ( Available)
Operation ModeFull automatic/ manual control, freely choose
ResolutionFree distribution truly reflect particle size distribution
Optical bench alignment systemJapan Canon lens, Full automatic,precision is up to 0.1um
Software functionAnalysis modeFree Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc.
Statistic MethodVolume Distribution, Quantity Distribution
Statistic ComparisonSeveral Testing Results of samplesDifferent batches of samples testing result,Samples before and after processing, Test result of samples in different time.
User-defined AnalysisFigure out percentage according to the particle sizeFigure out particle size according to the percentageFigure out percentage according to the particle size rangeMeet demands of representation of particle test in different industries
Test ReportWord, Excel,Photo( Bmp), Text etc
Multiple-language SupportMultiple language Support
Intelligent operationAutomatically control water inflow, dispersion,test and analysis.Better Repeatability after remove human-factor
Testing speed<2min/time
Outer dimensionL66cm*W32cm*H40cm
Net weight65Kg


Main Features:

1)Winner Patent -Optical path design

Converging light Fourier transform light patented technology, make scattering light not be restricted to lens aperture. Double spectrum design make its precision achieves from 0.01μm to 2000μm,and Dual-laser orthogonal light make use of the semiconductor auxiliary laser extend the test angle from 45 degree to 135 degree, ensure receive all the angles of signals.


2) Expand Size Range

Winner2008A measurement range significantly expanded to 0.01um, particularly suitable for small samples of the user, the sub micron particle test results reached the international level


3)Full automatic built-in wet dispersion system

The ultrasonic dispersion, mechanical stirring and circulation channel reasonable integrated in the interior of the instruments, ensure the uniform dispersion and distribution of particles in the testing process, effectively avoid uneven distribution, large particle deposition phenomenon caused by long pipe line of outside dispersion system , to ensure the accuracy of the test results.


4) Intelligent Operation mode

With intelligent automatic mode of operation, to achieve a key test, as long as according to the prompt addition of sample, click the "test", all processes including water-supply, dispersion, circulation, testing, cleaning, data record, data analysis, save and print are automatically completed, not only reduce the testing workload, but also eliminate the interference of human factors, to further improve the accuracy and authenticity of testing results.


5)Automatic Optical path alignment system

The precision of four hybrid stepping motor in the automatic system of optical components, micro precision of 0.1um, the instrument of light path is always at its best to eliminate manually on the light path and the troubles and difficulties but also enhance the accuracy and stability of test results.


6)Authoritative calibration method

In the entire test range using the national standard materials for calibration, only a year calibration once the instrument can. Calibration method is simple and quick.


7) Unconstrained free fitting patent technique

Winner original unconstrained free fitting patent technology, particle size analysis is not affected by any functional constraints, truely refelect particle size distribution.


Instrument principle diagram

Winner-2008A Intelligent Laser Particle Size Analyzer


Adopt Patents Technology:

1.Optical bench design is protected by patent No.- ZL 2014 2 0378380.8,

2.Optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.

3.Mie scattering principle application patent No.- ZL 2013 2 0812021.4.

4.Dual laser beam orthogonal application is protected by patent No.-ZL 2007 2 0025702.0


Instrument Test operation interface:

After the background test, click on Energy spectrum test" in "test view". And the system will display "test view". Observe the Spectral curve and concentration, After the test result becomes stable, click the "save the results". The System will automatically save the test result at the preset time intervals


Winner-2008A Intelligent Laser Particle Size Analyzer

Energy Spectrum Test View


Test Report and Its Description:

Winner-2008A Intelligent Laser Particle Size Analyzer


1) D10 : Particle diameter, < 10% particle volume summation percent of total particle's volume

2) D50 : Particle diameter, < 10% particle volume summation percent of total particle's volume

3) D90 : Particle diameter, < 10% particle volume summation percent of total particle's volume

4) DAV:The average particle size of the particle swarm

5) S/V: Volume specific surface area; surface area per unit volume of particles


Particle size analysis diagram:

● Horizontal axis is the size of the particle, which is the logarithm distribution.

● Left column is the volume of the cumulative percentage, corresponding to the upward trend  curve

● Right column is the volume percentage of a certain interval, corresponding to the histogram or the ups and downs of the curve.

● The test result of data list is corresponding to the analysis chart.


Application:

Winner2008 laser particle size analyzer is widely used in mineral materials, cement, ceramics, chemicals, paint, emulsion, dyes, pigments, fillers, chemical products, catalysts, drilling mud, abrasive, lubricant, coal, sand, dust, bacteria, cells, food, additives, pesticides, explosives, graphite, photosensitive materials, fuel, and ink metal and non metal powder, calcium carbonate, kaolin, coal water slurry and other powder material.
