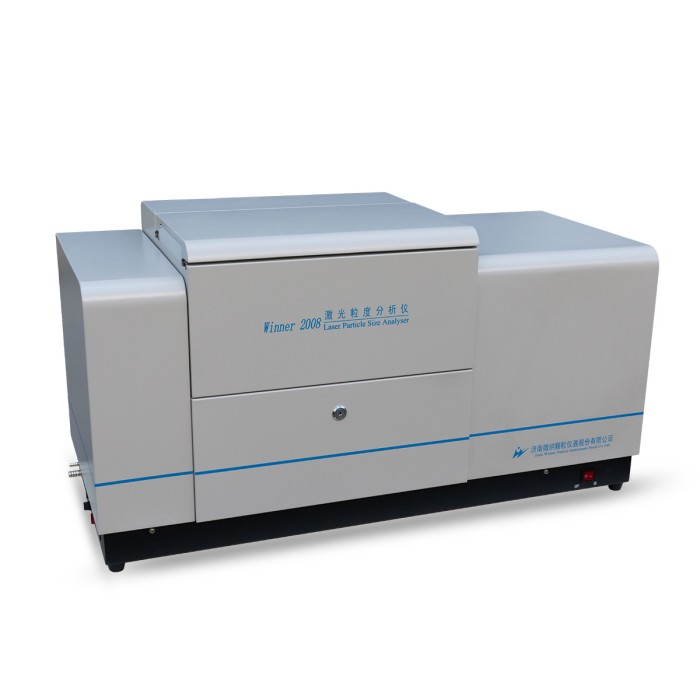

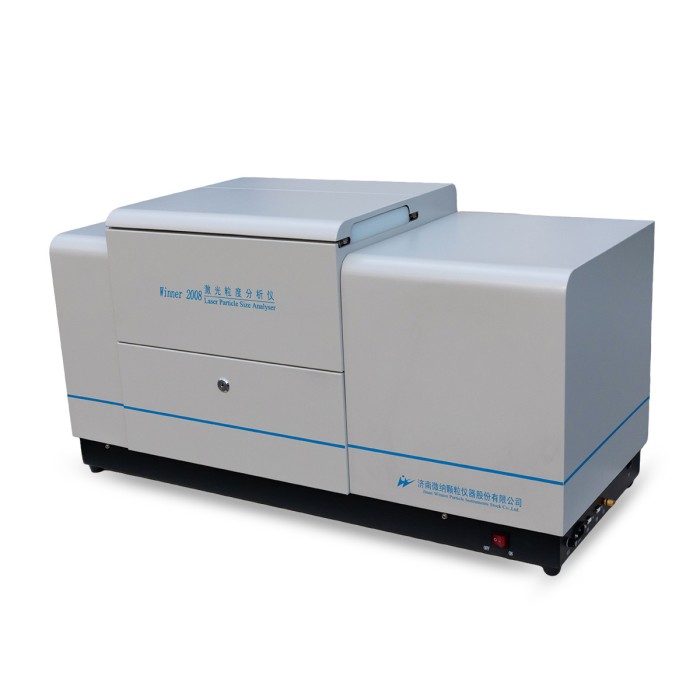

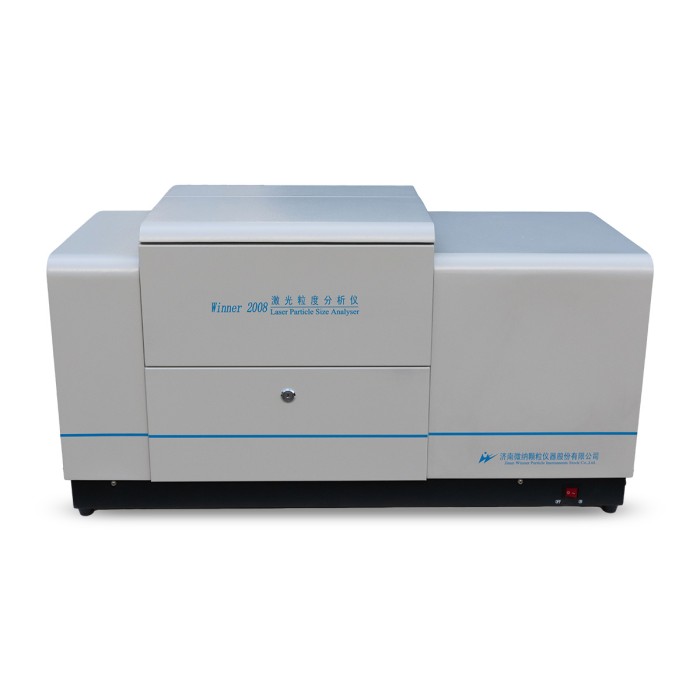

Winner2008A Fully Automatic Wet Dispersion Laser Particle Size Analyzer

Measurement Range: 0.01-2000μm

It is widely applicable to high-end application scenarios such as research institutes, university laboratories, and enterprise R&D centers and quality testing institutions.

Inquire Now Next Product

Products Description

Winner2008A fully automatic wet dispersion laser particle size analyzer adopts MIE scattering principle. The measurement size is from 0.01μm to 2000μm. It offers reliable and repeatable particle size analysis for a diverse range of applications. It uses dual-beam and dual-spectrum detection systems and side light scatter test technology to significantly improve precision and performance of test. It's the prior choice for industrial production quality control departments and research institutions.

Main Specifications

General

Measurement Size

Optics

Software Functions

Model Name	Winner2008A
Principle	Mie scattering
Detector Arrangement	Log-spaced array, test angle from 0.015 degree to 145 degree
Operation Mode	Full automatic / manual control, freely choose.
Full Test Speed per time	<2min Inverval time per test result: 500ms
Outer Dimension	1040mm440mm540mm
Net Weight	58kg

Measurement Range	0.01-2000μm
Number of Channels	106pcs
Accuracy Error	≤0.5% (CRM D50)
Repeatability Error	≤0.5% (CRM D50)
Dispersion	Ultrasonic: Frequency: f=40KHz, Power: p=60W (Time adjustable) Stir: Revolutions speed: 0-3000rpm (Adjustable) Circulate: Rated flow: 30L/min; Rated power: 70W Water level sensor (UK): Prevent water overflow and effectively protect the instrument. Sample Tank Volume: 10mL

Light Source	High performance semiconductor red laser (A=639nm), P＞3.0mW Auxiliary green solid semiconductor laser (A=405nm), P＞2.0mW (available)
Optical Bench Alignment System	Full automatic. Precision is up to 0.2um.
Optical Path	Converging light fourier transform optical path
Effective Focal Length	500mm
Laser Safety	Class 1

Analysis Pattern	Free distribution, R-R distribution, log-normal distribution, and statistical models by category.
Statistical Comparison	Statistical comparison of multiple test results. Users can compare and analyze test data from different batches of samples, before and after sample processing, or at different processing times, effectively guiding product quality and cost control.
Data Processing	The system performs intelligent statistical analysis and processing of test data, and outputs the most representative test results.
Custom Analysis	The system can customize the output of any characteristic particle size between D1 and D100, the cumulative percentage of particles larger or smaller than a certain particle size, and the cumulative percentage of a certain particle size range, so as to meet the different requirements of different industries for particle size testing and characterization methods.
Output	Typical particle size values, interval particle size distribution (i.e., differential distribution) data and graphs (histograms or curves), cumulative particle size distribution (i.e., integral distribution) data and curves, etc.
Test Report	Test reports can be exported in various formats such as Word, Excel, image (.bmp), text (.txt), and PDF, meeting different requirements for viewing test reports, data reprocessing, and article citation in any situation.
One-click Operation	Activate the automatic operation mode and complete all operations such as water intake, air bubble removal, dispersion, testing, cleaning, and data processing with a single button.
Language	Chinese and English interface. Other language interfaces can be added according to user requirements.
GMP	Optional

+ Advantages

(1) Smart operation mode

Smart operation mode supports one-button operation, click “Automatic Test” and follow the prompts to add samples, all other operations will be completed automatically. It not only reduces the workload of testers, but also eliminates the interference errors caused by human factors.

(2) Full built-in sample wet and dry dispersion system

It adopts a fully built-in dispersion system, which integrates mechanical stirring, ultrasonic dispersion, and pipeline circulation. The overall control coordination is good, and the pipeline is shortened to prevent secondary precipitation of large particles.

(3) Advanced optical path design

The converging light Fourier transform optical path of Winner patent is used to effectively improve the ability to distinguish submicron particles.

(4) Automatic optical alignment

The precision four-phase hybrid stepping motor is used to form the optical path automatic centering system, and the micro-motion accuracy reaches 0.1 micron. It keeps the instrument's optical path in the best state all the time, while eliminating thetroubles and difficulties caused by manual alignment of the optical path accuracy and stability of test results.

(5) Dual optical path design

The dual-spectrum design and dual-laser orthogonal light increase the measurement range, and the accuracy reaches 0.01um-2000um. The high-sensitivity, high-resolution photoelectric probe system ensures the collection of all particle scattered light signals and ensures the accuracy of test data.

(6) Unconstrained free fitting technique

Using the original unconstrained free fitting technology of Winenr, the particle size analysis is not limited by any function, and can truly reflect the distribution state of particles.

+ Test Principle

+ Application

Cement, ceramic, medicine, emulsion, dope, dye, padding, chemical products, catalyst, driling fuid, abrasive, lubricant, braize, cel, germ, food, additve, pesticide, explosive, graphite, photosensitive material, fuel, ink, metal powder, non-metal powder, calcium carbonate, kaolin, water-coal-slurry and other powder materials.

+ Patent Technology

(1). Optical bench design is protected by patent No.- ZL 2014 2 0378380.8.

(2). Three dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.

(3). MIE scattering principle application patent No.- ZL 2013 2 0812021.4.

(4). Dry particle size analyzer full sealed sample cuvette application is protected by patent No.- ZL.2011 2 0267646.8.

(5). Dual laser beam orthogonal application is protected by patent No.-ZL 2007 2 0025702.0.

(6). Powder dispersion pump design application is protected by patent No.-ZL 2007 2 0018648.7.

(7). Wet circulation installation is protected by patent No.-ZL2010 2 0593526.2.

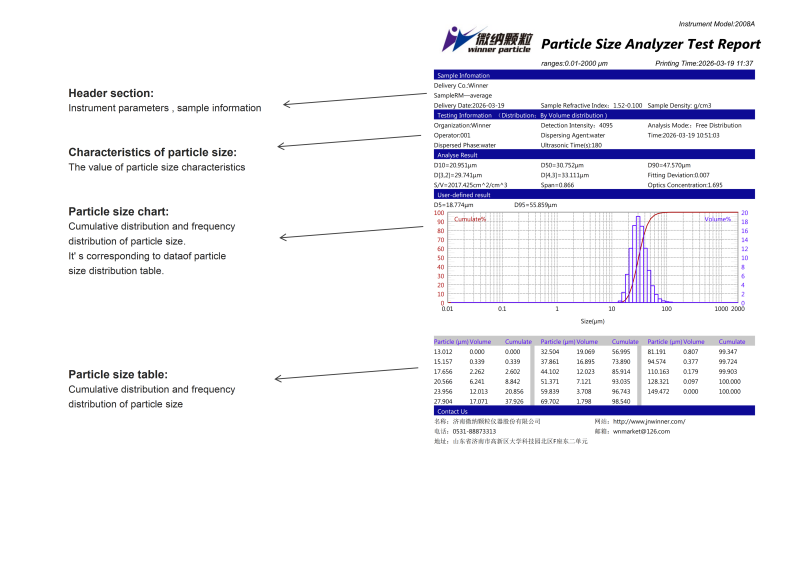

+Test Report
