Measurement Range: 0.1-450μm
It is widely applicable to high-end application scenarios such as research institutes, university laboratories, and enterprise R&D centers and quality testing institutions.
Products Description

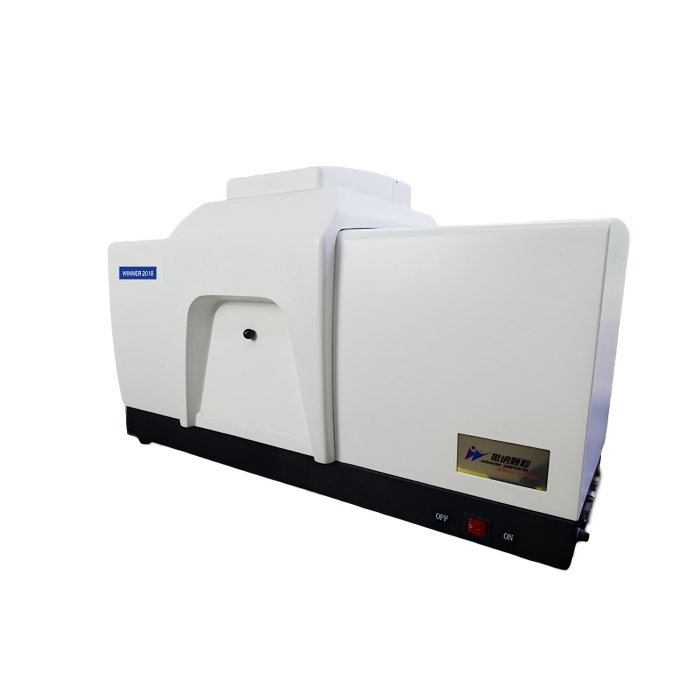

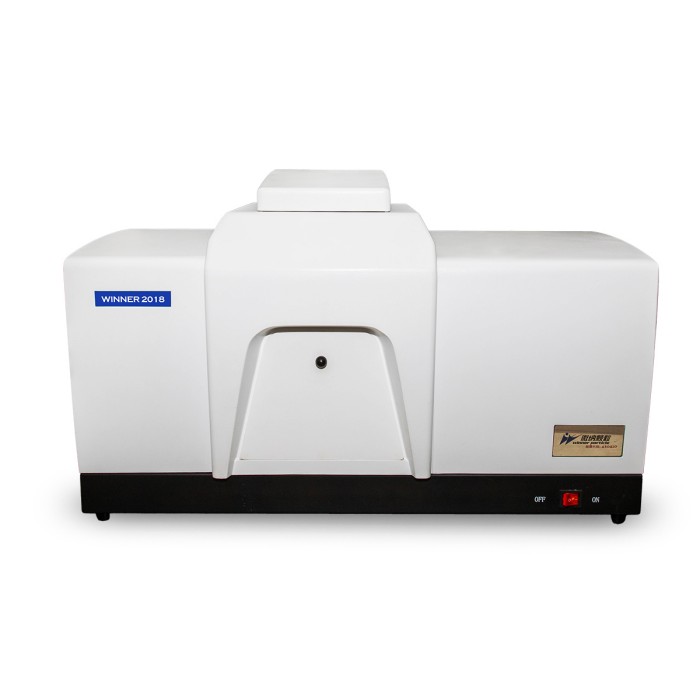

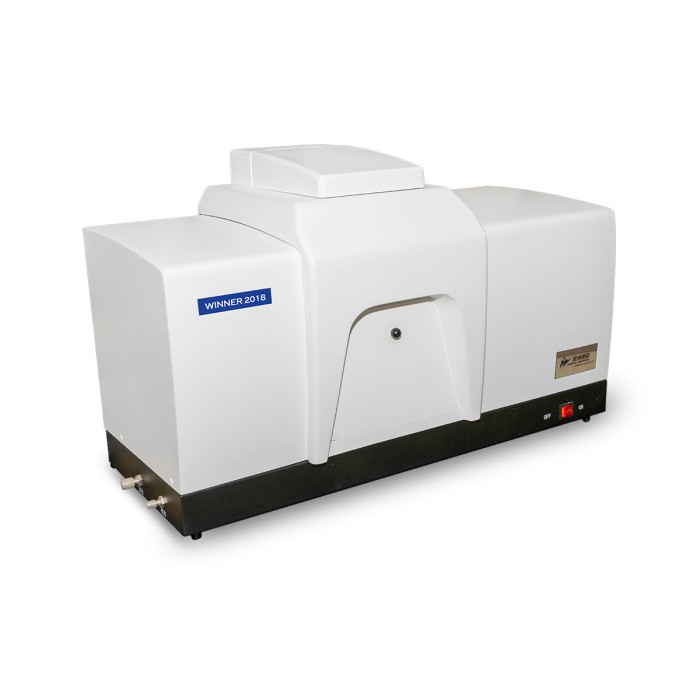

Winner2018 basic fully automatic wet laser particle size analyzer realizes one-key operation. Its measurement range is 0.1μm to 450μm, and it is more suitable for testing of materials with narrow particle size distribution.
As a popular product, this product is cost-effective. It adopts the MIE scattering principle, has fast test speed, accurate and stable test data.
Main Specifications
| Model Name | Winner2018 |
| Principle | Mie scattering |
| Test Speed | Fastest 10 seconds |
| Refractive Index | A wide range of refractive indices are available; any refractive index can be entered. |
| Sampling Frequency | Fastest data acquisition rate of 10kHz |
| Outer Dimension | 822mm*365mm*495mm |
| Net Weight | 40kg |
| Operation Mode | Software operation / Fully automatic operation mode (switchable) / SOP one-click fully automatic test |
| Measurement Range | 0.1-450μm |
| Number of Channels | 40pcs |
| Accuracy Error | ≤0.5% (CRM D50) |
| Repeatability Error | ≤0.5% (CRM D50) |
| Dispersion | Ultrasonic: Frequency: f=40KHz, Power: p=60W (Time adjustable) Stir: Revolutions speed: 0-3000rpm (Adjustable) Circulate: Rated flow: 8L/min; Rated power: 10W (Optional) Wet Method:Ultrasonic, mechanical stirring, and built-in circulating dispersion |
| Sample Tank Volume | 450ml |
| Light Source | High-performance laser λ=639nm, P＞2mW |
| Optical Bench Alignment System | Automatic alignment |
| Optical Path | Reverse Fourier (Folded optical path) |
| Laser Safety | Class 1 |
| Analysis Pattern | Free distribution, R-R distribution, log-normal distribution, and statistical models by category. |
| Statistical Comparison | Statistical comparison of multiple test results. Users can compare and analyze test data from different batches of samples, before and after sample processing, or at different processing times, effectively guiding product quality and cost control. |
| Data Processing | The system performs intelligent statistical analysis and processing of test data, and outputs the most representative test results. |
| Custom Analysis | The system can customize the output of any characteristic particle size between D1 and D100, the cumulative percentage of particles larger or smaller than a certain particle size, and the cumulative percentage of a certain particle size range, so as to meet the different requirements of different industries for particle size testing and characterization methods. |
| Output | Typical particle size values, interval particle size distribution (i.e., differential distribution) data and graphs (histograms or curves), cumulative particle size distribution (i.e., integral distribution) data and curves, etc. |

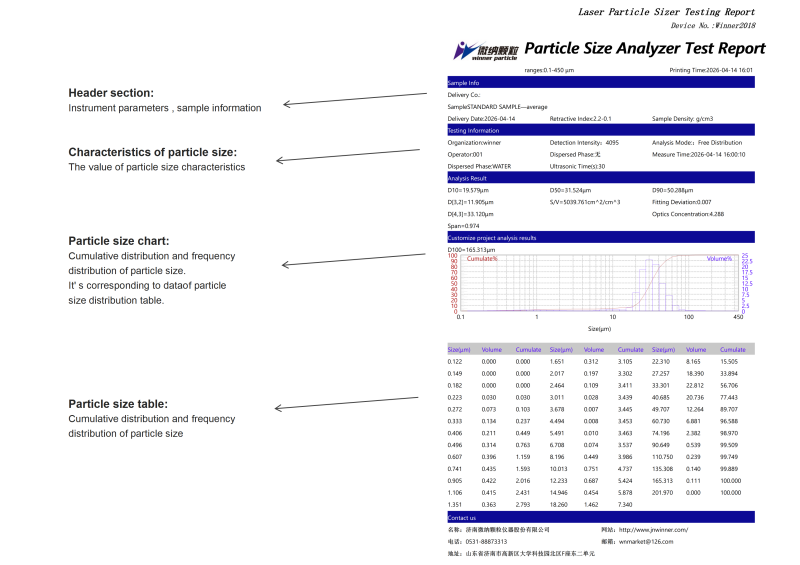

| Test Report | Test reports can be exported in various formats such as Word, Excel, image (.bmp), text (.txt), and PDF, meeting different requirements for viewing test reports, data reprocessing, and article citation in any situation. |
| One-click Operation | Activate the automatic operation mode and complete all operations such as water intake, air bubble removal, dispersion, testing, cleaning, and data processing with a single button. |
| Language | Chinese and English interface. Other language interfaces can be added according to user requirements. |
| GMP | Optional |
Smart operation mode supports one-button operation, click “Automatic Test” and follow the prompts to add samples, all other operations will be completed automatically. It not only reduces the workload of testers, but also eliminates the interference errors caused by human factors
It adopts a fully built-in dispersion system, which integrates mechanical stirring, ultrasonic dispersion, and pipeline circulation. The overall control coordination is good, and the pipeline is shortened to prevent secondary precipitation of large particles.

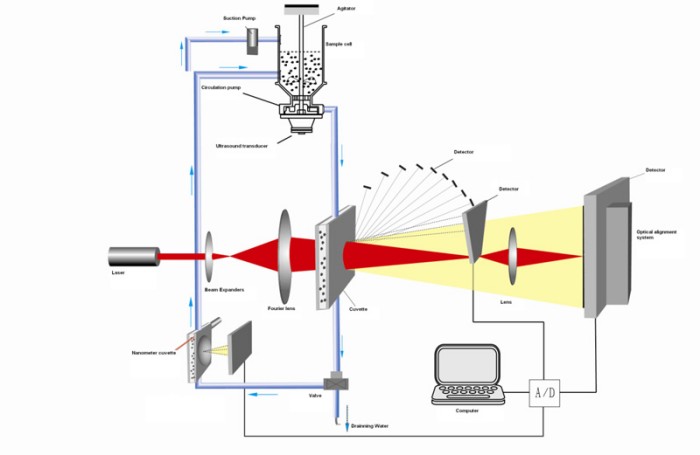

Using Winner patented concentrated light Fourier transform technology and dual-spectrum optical path design, scatteredlight is not constrained by the lens aperture.
The precision four-phase hybrid stepping motor is used to form the optical path automatic centering system, and the micro-motion accuracy reaches 0.1 micron. It keeps the instrument's optical path in the best state all the time, while eliminating thetroubles and difficulties caused by manual alignment of the optical path accuracy and stability of test results.
The ultrasonic cleaning function is added to the bottom of the sample window, which reduces the frequency of manual replacement and cleaning of the sample window, saves maintenance time. And it improves the cleanliness and service life of the sample window.
Using the original unconstrained free fitting technology of Winenr, the particle size analysis is not limited by any function, and can truly reflect the distribution state of particles.
(1). Optical bench design is protected by patent No.- ZL 2014 2 0378380.8.
(2). Three dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.
(3). MIE scattering principle application patent No.- ZL 2013 2 0812021.4.
(4). Dry particle size analyzer full sealed sample cuvette application is protected by patent No.- ZL.2011 2 0267646.8.
(5). Dual laser beam orthogonal application is protected by patent No.-ZL 2007 2 0025702.0.
(6). Powder dispersion pump design application is protected by patent No.-ZL 2007 2 0018648.7.
(7). Wet circulation installation is protected by patent No.-ZL2010 2 0593526.2.
