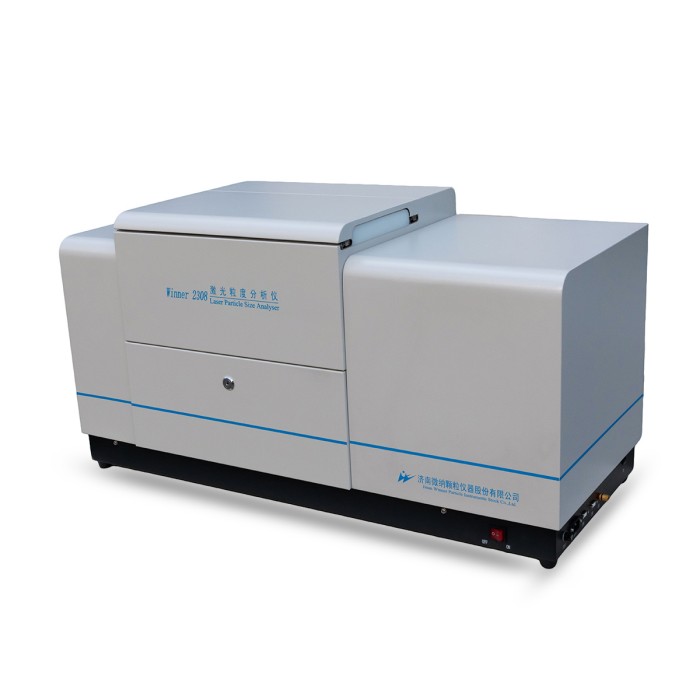

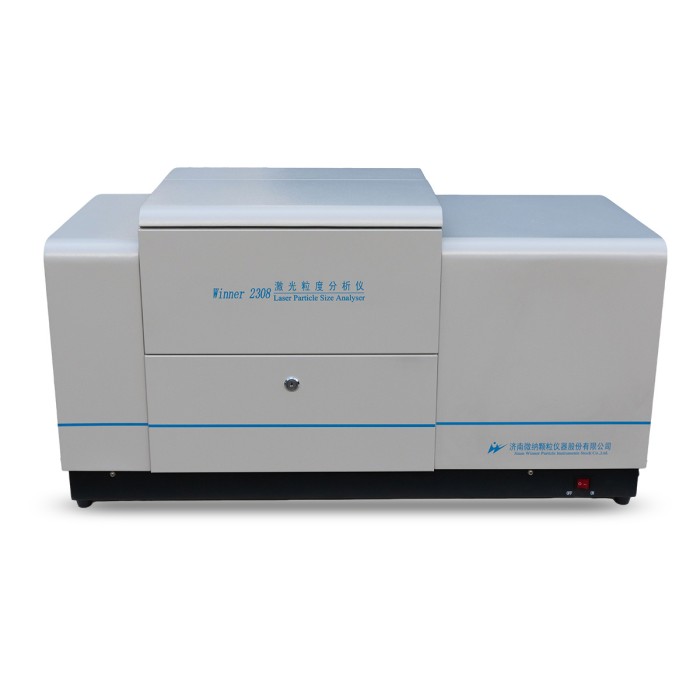

Winner2308A Intelligent Wet and Dry Integrated Laser Particle Size Analyzer

Measurement Range: Wet 0.01-2000μm Dry 0.1-2000μm

It is widely applicable to high-end application scenarios such as research institutes, university laboratories, and enterprise R&D centers and quality testing institutions.

Inquire Now Next Product

Products Description

Winner2308A intelligent full automatic wet and dry laser particle size analyzer adopts laser diffraction theory (Mie and Fraunhofer diffraction). The wet measurement size is from 0.01μm to 2000μm (dry 0.1μm-2000μm). It offers reliable and repeatable particle size analysis for a diverse range of applications. It uses dual-beam and dual-spectrum detection systems and side light scatter test technology to significantly improve precision and performance of test. It's the prior choice for industrial production quality control departments and research institutions.

Main Specifications

General

Measurement Size

Optics

Software Functions

Model Name	Winner2308A
Principle	Mie and Fraunhofer scattering
Detector Arrangement	Log-spaced array, test angle from 0.015 degree to 145 degree
Operation Mode	Full automatic / manual control, freely choose.
Full Test Speed per time	Wet: <2min; Dry: <1min Inverval time per test result: 500ms
Outer Dimension	1040mm440mm540mm
Net Weight	58kg

Measurement Range	Wet: 0.01-2000μm Dry: 0.1-2000μm
Number of Channels	106pcs
Accuracy Error	Wet: ≤0.5%; Dry: ≤1.0% (CRM D50)
Repeatability Error	Wet: ≤0.5%; Dry: ≤1.0% (CRM D50)
Wet Dispersion	Ultrasonic: Frequency: f=40KHz, Power: p=60W (Time adjustable) Stir: Revolutions speed: 0-3000rpm (Adjustable) Circulate: Rated flow: 30L/min; Rated power: 70W Water level sensor (UK): Prevent water overflow and effectively protect the instrument. Sample Tank Volume: 10mL
Dry Dispersion	Dry-turbulence dispersion patent technology, normal shock wave shear technique. Feeding speed: Adjustable (Variable speed knob) Dispersion medium: Compressed air. Pressure: 0 to 6 bar

Light Source	High performance semiconductor red laser (A=639nm), P＞3.0mW Auxiliary green solid semiconductor laser (A=405nm), P＞2.0mW (available)
Optical Bench Alignment System	Full automatic. Precision is up to 0.2um.
Optical Path	Converging light fourier transform optical path
Effective Focal Length	500mm
Laser Safety	Class 1

Analysis Pattern	Free distribution, R-R distribution, log-normal distribution, and statistical models by category.
Statistical Comparison	Statistical comparison of multiple test results. Users can compare and analyze test data from different batches of samples, before and after sample processing, or at different processing times, effectively guiding product quality and cost control.
Data Processing	The system performs intelligent statistical analysis and processing of test data, and outputs the most representative test results.
Custom Analysis	The system can customize the output of any characteristic particle size between D1 and D100, the cumulative percentage of particles larger or smaller than a certain particle size, and the cumulative percentage of a certain particle size range, so as to meet the different requirements of different industries for particle size testing and characterization methods.
Output	Typical particle size values, interval particle size distribution (i.e., differential distribution) data and graphs (histograms or curves), cumulative particle size distribution (i.e., integral distribution) data and curves, etc.
Test Report	Test reports can be exported in various formats such as Word, Excel, image (.bmp), text (.txt), and PDF, meeting different requirements for viewing test reports, data reprocessing, and article citation in any situation.
One-click Operation	Wet method: Activate the automatic operation mode and complete all operations such as water intake, air bubble removal, dispersion, testing, cleaning, and data processing with a single button. Dry method: Activate the automatic operation mode to complete all operations such as dust collection, air supply, feeding, testing, and data processing with a single click.
Language	Chinese and English interface. Other language interfaces can be added according to user requirements.
GMP	Optional

+ Advantages

(1) One-click switching mode between dry and wet

This instrument integrated wet and dry dispersion test in one, successfully resolved the problem of dry and wet technology integration, realize one key to switch.

(2) Full built-in sample wet and dry dispersion system

Wet dispersion system: Set mechanical stiring, ultrasonic dispersion and circulation path in one. SOP realizes one key operation.

Dry dispersion system: Turbulence dispersion patented technology and normal shock shearing effect make particles sufficient dispersion, ensure good test.

(3) Smart operation mode

The intelligent automatic mode of operation achieves a key test. As long as according to the prompt addition of sample, click the "test", all process will be complete automatically.

(4) Advanced optical path design

Using Winner patented concentrated light Fourier transform technology and dual-spectrum optical path design, scatteredlight is not constrained by the lens aperture.

(5) Dual optical path design

The dual-spectrum design and dual-laser orthogonal light increase the measurement range, and the accuracy reaches 0.01um~2000um (wet method) and 0.1-2000um (dry method). The high-sensitivity, high-resolution photoelectric probe system ensures the collection of all particle scattered light signals and ensures the accuracy of test data.

(6) Unconstrained free fitting technique

Using the original unconstrained free fitting technology of Winenr, the particle size analysis is not limited by any function, and can truly reflect the distribution state of particles.

+ Test Principle

+ Application

Solid powder, suspension and emulsion. For example, chemicals, magnetic materials, medicine, cement, coatings, food, pesticides, nuclear industry, electronics, battery materials, paper, metallurgy, ceramics, building materials, cosmetics, abrasives, metal and non-metal powders, calcium carbonate, talc, kaolin, oxidation, aluminum, rare earth, cemented carbide, catalysts, foaming agents, refractory materials, fillers, graphite, pigments, etc.

Winner2309A Large-range Modular Wet and Dry Laser Particle Size Analyzer

+ Patent Technology

(1). Optical bench design is protected by patent No.- ZL 2014 2 0378380.8.

(2). Three dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.

(3). MIE scattering principle application patent No.- ZL 2013 2 0812021.4.

(4). Dry particle size analyzer full sealed sample cuvette application is protected by patent No.- ZL.2011 2 0267646.8.

(5). Dual laser beam orthogonal application is protected by patent No.-ZL 2007 2 0025702.0.

(6). Powder dispersion pump design application is protected by patent No.-ZL 2007 2 0018648.7.

(7). Wet circulation installation is protected by patent No.-ZL2010 2 0593526.2.

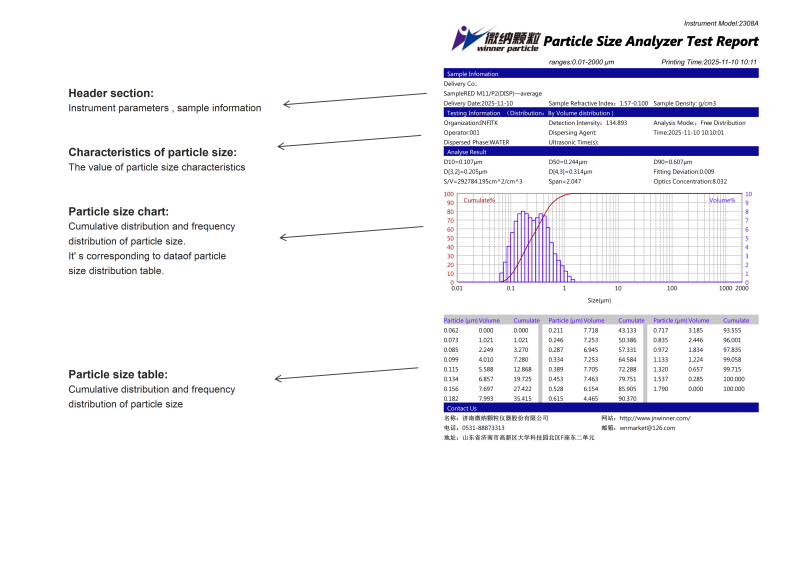

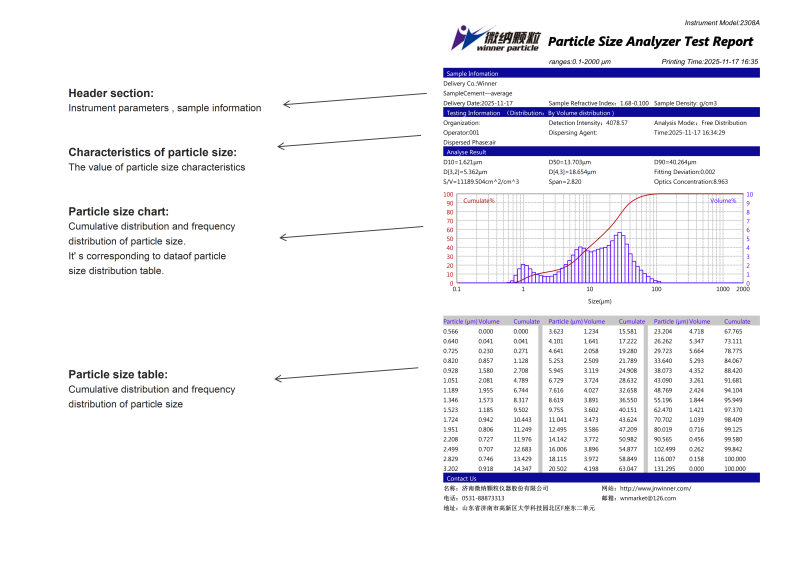

+Test Report
