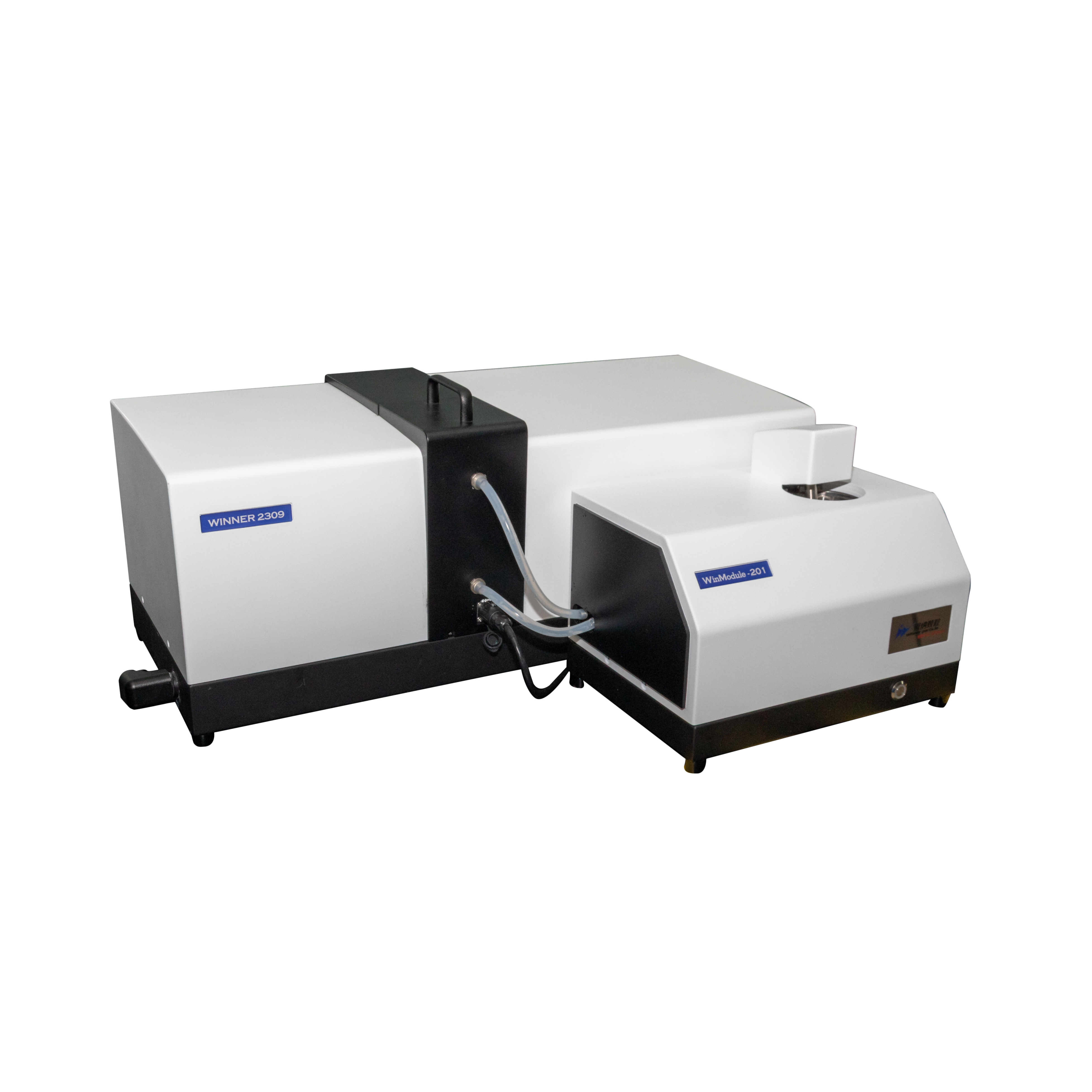

Winner2309 WinModule-201 Intelligent Wet Measurement Laser Particle Size Analyzer

Winner2309 WinModule-201 Intelligent Wet Measurement Laser Particle Size Analyzer

The particle size testing range: 0.01-3500μm/0.01-2800μm/0.01-2000μm

It is mainly used to test the particle size distribution of metal powder, non-metal powder, other powders and emulsion, etc.

Inquire Now

Products Description

Winner2309 WinModule-201 Intelligent Wet Measurement Laser Particle Size Analyzer, is intelligent full automatic laser particle size analyzer, that adopts the most advanced international MIE scattering principle and Fraunhofer diffraction principle. The particle size testing range is 0.01-2000μm (Wet) and 0.1-2000μm (Dry). High sensitive and high-resolution photoelectric probe system and imported Canon lens optical path ensure the good accuracy and repeatability of particle size distribution. It is equipped with independent dry and wet dispersion modules. It can be used to detect the particle size distribution of powder particles that are easily reacted with water or easily deformed in liquids (dry dispersion), as well as the particle size distribution of samples that are conventionally dispersed in liquids (wet dispersion). It is widely used in industrial production quality control departments and research institutions.

1. Main Specifications

Model Name		Winner2309C
Principle		Laser light scattering
Analysis		Mie and Fraunhofer scattering
Detector Arrangement		Log-spaced array, test angle from 0.015 degree to 145 degree
Red Light Source		Max.4.0MW Fiber, 639nm
Optical Path		Reverse Fourier(Folded optical path)
Laser Safety		Class 1
Injector		Wet: WinModule-201; Dry: WinModule-301
Measuring Range		Wet: 0.01μm-2000μm; Dry: 0.1μm-2000μm
Silicon Photodetectors		Wet: 106pcs; Dry: 106pcs
Accuracy Error		Wet≤0.5%; Dry≤1.0% (CRM D50)
Repeatability Error		Better than 0.5% variation, better than 1% variation
Reproducibility Error		Better than 0.5% variation, better than 1% variation
Wet Dispersion	Ultrasonic	Frequency:40KHz Max Power:60W Ultrasonic time:adjustable
	Stir	Revolutions Speed: 0-3000RPM (Adjustable)
	Circulate	Rated Flow: 1L-8L/min Rated Power: 120W
	Anti-overflow Sensor (UK)	Prevent water overflow and effectively protect the instrument.
	Sample Tank	Volume: 600mL
	Micro-Sample Cuvette	Volume: 10mL(optional), suitable for testing precious samples and corrosive samples.
Dry Dispersion		Dry-turbulence dispersion patent technology, normal shock wave shear technique.
Feeding Speed		Adjustable (Variable speed knob)
Operation Mode		Full automatic or manual control, freely choose.
Dispersion Medium		Compressed Air, pressure: 0 to 6 bar
Optical Bench Alignment System		Full automatic, precision is up to 0.2μm
Full Test Speed per Time		Wet: <2 min Dry : <1min Inverval time per test result: 500ms
Outer Dimension		L870×W350×H325mm, L400×W350×H375mm, L255×W240×H250cm
Environmental Requirement:		Temperature: 5-35°C Humidity: ＜85%
Storage Temperature		-20°C to +50°C
Net Weight		32kg+16kg+8kg

2. Main Features

1)Wet and dry, unique separated dispersion module

The instrument adopts a modular design for automatic dry and wet dispersion. Customers can freely assemble it according to the test requirements of sample characteristics. It is simple, convenient and fast.

2) Operation mode

Intelligent full automatic operation system and manual operation, freely choose.

Choose automatic mode, very easy and simple to learn,support SOP operation.

3) Optical path design

Adopting the patented inverse Fourier (folded optical path) technology, the reception of scattered light from sample particles is not limited by the focal length of the optical path. The test angle range is 0.015-145 degrees, which effectively improves the measurement range and the resolution of the instrument. The optical path is sealed and has good dustproof performance.

4) Automatic optical path alignment system

It is composed of precise four phase hybrid stepper motor, Its inching precision is reach to micron level,make optimum optical paths to ensure accurate and stable test.

5) Automatic sample dispersion system

The modular design of dry and wet dispersion shortens the circulation pipeline and prevents the precipitation of large particles. It is not only conducive to the uniform dispersion of samples, but also reduces maintenance costs and is conducive to the cleaning and maintenance of equipment.

6) Instrument software

The unique unconstrained free fitting technology collects scattering data during the measurement process and has the ability to automatically analyze multi-modal particle groups. It is not constrained by any function. The analysis result depends entirely on the distribution of the scattering spectrum, which maximizes the fitting accuracy and truly reflects the particle size distribution of all samples. Particles below 2μm are tested in 12 particle size grades with extremely high physical resolution.

3. Software Function

1. Analysis Mode

Free Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc. meet different demands of particle size statistic in different industries.

2. Statistic Method

Volume Distribution, Quantity Distribution.

3. Statistic Comparison

Statistic Several Testing Results to compare and analyze. Get difference by compare test result of different batches of samples, samples before and after processing, and different time. Have great practical significance to industrial raw materials quality control.

4. User-defined Analysis

Figure out percentage according to the particle size.

Figure out particle size according to the percentage.

Figure out percentage according to the particle size range.

Meet demands of representation of particle test in different industries.

5. Test Report

Word, Excel, Photo( Bmp), Text etc.

6. Multi-language Support

Chinese&English (Others are available).

7. Intelligent Operation Mode

Automatically control water inflow, dispersion,test and analysis.

Better Repeatability after remove human-factor.

4. Test Principles

Winner2309A Large-range Modular Wet and Dry Laser Particle Size Analyzer

5. Application

Winner2309A Large-range Modular Wet and Dry Laser Particle Size Analyzer

6. Patent Technology

1. Optical bench design is protected by patent No.- ZL 2014 2 0378380.8.

2. Three dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.

3. MIE scattering principle application patent No.- ZL 2013 2 0812021.4.

4. Dry particle size analyzer full sealed sample cuvette application is protected by patent No.- ZL.2011 2 0267646.8.

5. Dual laser beam orthogonal application is protected by patent No.-ZL 2007 2 0025702.0.

6. Powder dispersion pump design application is protected by patent No.-ZL 2007 2 0018648.7.

7. Wet circulation installation is protected by patent No.-ZL2010 2 0593526.2.
