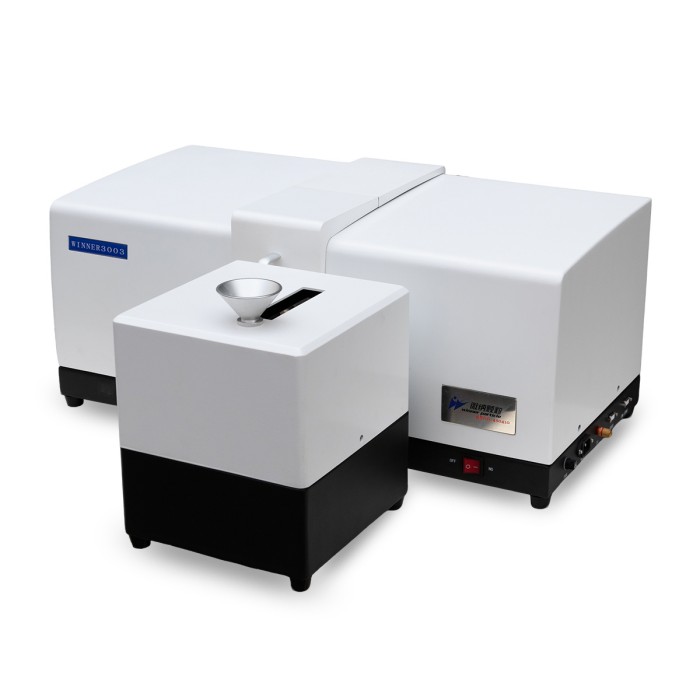

Winner3003 Basic Dry Laser Particle Size Analyzer

Measurement Range: 0.1-300μm

It is widely applicable to high-end application scenarios such as research institutes, university laboratories, and enterprise R&D centers and quality testing institutions.

Inquire Now Next Product

Products Description

Winner3003 is a basic dry dispersion laser particle size analyzer. It uses the scientific structure design and a new generation of dispersion device, and its dispersion effect is better than similar instruments. Based on the MIE scattering theory, it employs a converging Fourier transform optical path and is equipped with a high-performance laser and a high-sensitivity photodetector ring to ensure the repeatability and accuracy of the test results.

It uses air as dispersion medium, and uses turbulent dispersion principle with high precision feeding device, patent powder spray pump and oil-free silent gas source ensuring the samples to be fully dispersed. It's fit for any dry powder materials, especially the powder that takes chemical reaction with water or changes its shape in liquid. Compared to the wet laser particle size analyzer, it's with the same accuracy and repeatability.

Main Specifications

General

Measurement Size

Optics

Software Functions

Model Name	Winner3003
Principle	Mie scattering
Test Speed	Fastest 10 seconds
Refractive Index	A wide range of refractive indices are available; any refractive index can be entered.
Sampling Frequency	Fastest data acquisition rate of 10kHz
Outer Dimension	Main unit: 765mm450mm325mm Dry module: 260mm245mm295mm
Net Weight	Main unit: 26kg Dry module: 7kg
Operation Mode	SOP Fully automated operation mode

Measurement Range	0.1-300μm
Number of Channels	40pcs
Accuracy Error	≤1.0% (CRM D50)
Repeatability Error	≤1.0% (CRM D50)
Dispersion	Turbulent dispersion, automatic sample introduction, one-click testing.

Light Source	High-performance laser λ=639nm, P＞2mW
Optical Bench Alignment System	Automatic alignment
Optical Path	Reverse Fourier (Folded optical path)
Laser Safety	Class 1

Analysis Pattern	Free distribution, R-R distribution, log-normal distribution, and statistical models by category.
Statistical Comparison	Statistical comparison of multiple test results. Users can compare and analyze test data from different batches of samples, before and after sample processing, or at different processing times, effectively guiding product quality and cost control.
Data Processing	The system performs intelligent statistical analysis and processing of test data, and outputs the most representative test results.
Custom Analysis	The system can customize the output of any characteristic particle size between D1 and D100, the cumulative percentage of particles larger or smaller than a certain particle size, and the cumulative percentage of a certain particle size range, so as to meet the different requirements of different industries for particle size testing and characterization methods.
Output	Typical particle size values, interval particle size distribution (i.e., differential distribution) data and graphs (histograms or curves), cumulative particle size distribution (i.e., integral distribution) data and curves, etc.
Test Report	Test reports can be exported in various formats such as Word, Excel, image (.bmp), text (.txt), and PDF, meeting different requirements for viewing test reports, data reprocessing, and article citation in any situation.
One-click Operation	Activate the automatic operation mode to complete all operations such as dust collection, air supply, feeding, testing, and data processing with a single click.
Language	Chinese and English interface. Other language interfaces can be added according to user requirements.
GMP	Optional

+ Advantages

(1) Intelligent operating system enables one-click testing

Simply place the sample in, and all processes, including dust removal, air supply, and material feeding, will be completed automatically. It not only reduces workload but also eliminates errors caused by human factors, further improving the accuracy of testing and the authenticity of test results.

(2) Sclentific and automatic dry dispersing system

Turbulence dispersion patented technology and Normalshock shearing effect make particles sufficient dispersion. The dispersion core part uses wearable ceramics, which not only improves dispersion system's working life, but also ensures moreaccurate and stable testing result.

(3) Automatic optical alignment

It's composed of precise four phase hybrid stepper motor. Its inching precision is reach to micron level, so light path is always in a good state.

(4) Advanced optical path design

Converging light Fourier transform light patented technology, it makes scattering light not be restricted to lens aperture. Use main detector and large angle auxiliary detector to efficiently collect all angles of scattering light in the testing range. This ensures good testing accuracy and reliability in the whole range.

(5) Unconstrained free fitting technique

Unique unconstrained free fitting technology makes particle analysis not be restricted by any functions. Truly particles distribution can be reflected, and the accuracy of testing result can be guaranteed.

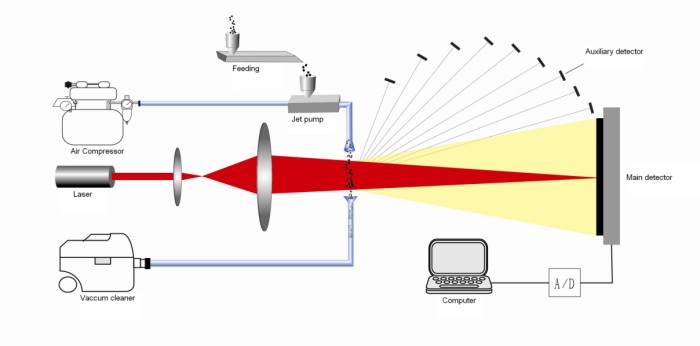

+ Test Principle

+ Application

Winner3003 Dry laser particle size analyzer is used in cement, ceramics, pharmaceuticals, dyes, pigments, fillers, chemical products, catalysts, coal dust, additives, pesticides, explosives, graphite, photographic materials, fuel, metal and non-metal powder, carbonated calcium, kaolin and other powder industry. Particularly for materials which occurs chemical reaction, the shape change and the loss in the liquid, such as herbs, magnetic materials and relatively wide distribution and larger particles powders, have more unique applicability and practicality.

Winner3006 Universal Dry Laser Particle Size Analyzer

+ Patent Technology

(1). Optical bench design is protected by patent No.- ZL 2014 2 0378380.8.

(2). Three dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.

(3). MIE scattering principle application patent No.- ZL 2013 2 0812021.4.

(4). Dry particle size analyzer full sealed sample cuvette application is protected by patent No.- ZL.2011 2 0267646.8.

(5). Dual laser beam orthogonal application is protected by patent No.-ZL 2007 2 0025702.0.

(6). Powder dispersion pump design application is protected by patent No.-ZL 2007 2 0018648.7.

(7). Wet circulation installation is protected by patent No.-ZL2010 2 0593526.2.

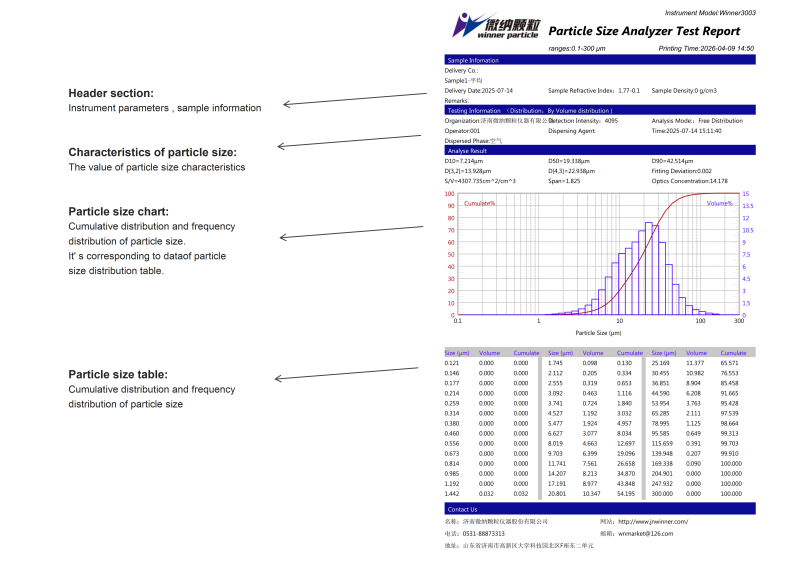

+Test Report
