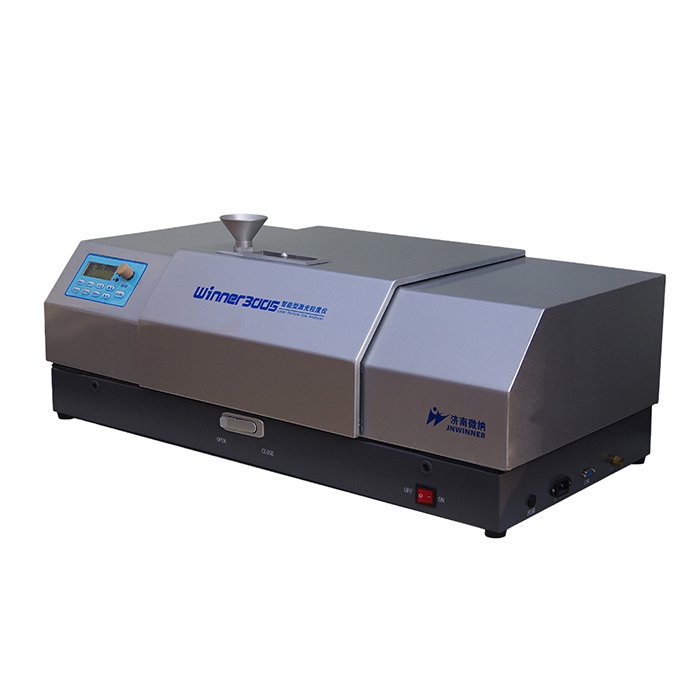

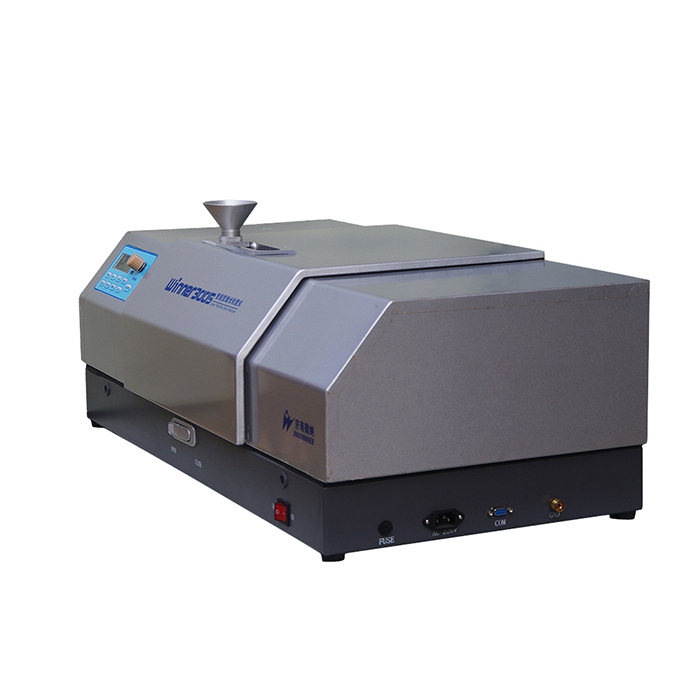

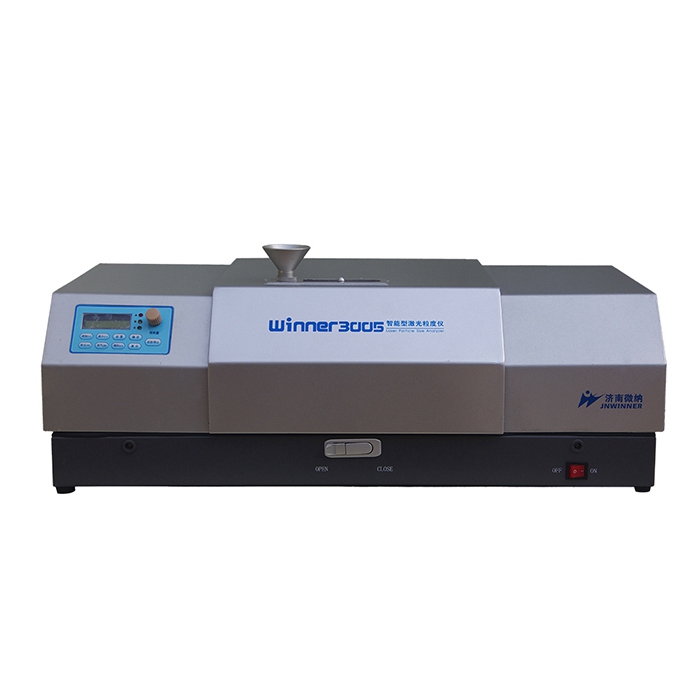

Winner3005 Intelligent Dry Laser Particle Size Analyzer

Overview:

Winner3005 automatic laser particle size analyzer for powders particle size test, Intelligent full automatic operation modes. MIE scattering principle as basic, Converging light Fourier transform optical path, Highly stable He-Ne laser and High sensitive ring photoelectric detector,guarantee good repeatability and accuracy.

It use air as dispersion medium, and use turbulent dispersion principle with High precision feeding device, patent powder spray pump and oil-free silent gas source guaranteeing the samples to be fully dispersed. It's fit for any dry powder materials, especially good for the powder that takes chemical reaction with water or changes its shape in liquid.

Main Specifications:

Main Features:

1) Advanced testing light path.

Converging light Fourier transform light patented technology, make scattering light not be restricted to lens aperture. Use main detector and large angle auxiliary detector efficiently collect all angles of scattering light in the testing range, ensure good testing accuracy and reliability in the whole range.

2)Scientific dry powders dispersion system

Turbulence dispersion patented technology and Normal shock shearing effect, make particles sufficient dispersion, Adopt wearable ceramics improve dispersion system's working life.

3)Human-based operation mode, very simple to use

Manual and Full automatic, easy choose.

4)High precision-automatic Three dimension light path alignment system

It's composed of precise four phase hybrid stepper motor, Its inching precision is reach to 0.01 micron level, so light path is always in a good state.

5)Intelligent particle size distribution data analysis

Analysis software collect large quantity of particle information in high speed, and inverse particle distribution by unconstrained free fitting technology, then intelligent statistics and analysis of testing data, ensure accuracy and repeatability of the output.

6) The results not only show particle distribution,the cumulative value curve and typical particle sizes( D10, D50, D90.), but also support user-defined analyze result, such as any features particle diameter from D0 to D100,Cumulative percent(greater than or less than a certain particle diameter).

7) Users can design the test report output and display forms according to industry requirements.

Application:

Winner3005 is widely used for cement, ceramic, medicine, dope, dye, padding, chemical products, catalyst, braize, dust, additive, pesticide, explosive, graphite, photosensitive material, fuel, metal and nonmetal powder, calcium carbonate, kaolin and other powder materials.

It has unique applicability and practicability, especially for those occurs chemical reactions, change shapes and loss in liquid, such as Chinese herbal medicine, magnetic materials and powder industry with wide distribution and large particle size.

Patents Technology:

● Optical bench design is protected by patent No.- ZL 2014 2 0378380.8,

● Three dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.

● MIE scattering principle application patent No.- ZL 2013 2 0812021.4.

● Dry particle size analyzer full sealed sample cuvette application is protected by patent No.- ZL.2011 2 0267646.8.

● Powder dispersion pump design application is protected by patent No.-ZL 2007 2 0018648.7

Demo Test Report:

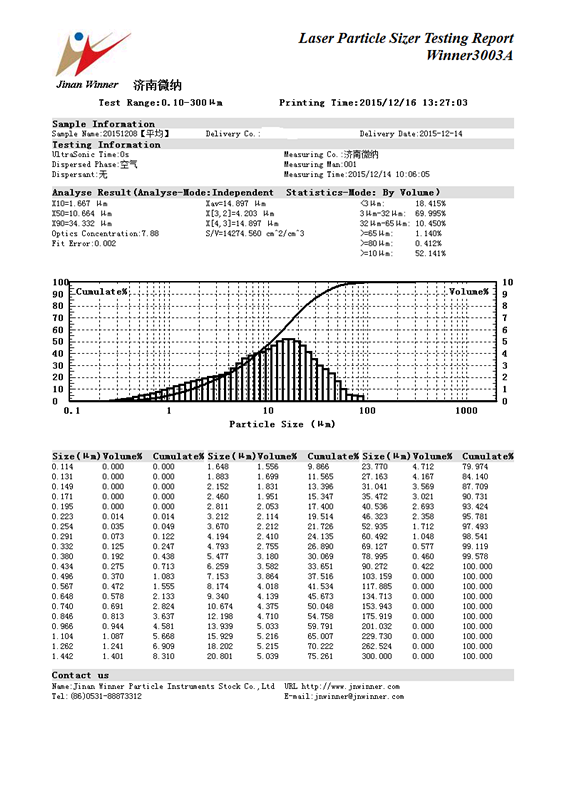

Report Interpretation

1) X10=A, means ≤A particle size's particle volume content occupy 10% of all the particles.

2) X50=B, means ≤B particle size's particle volume content occupy 50% of all the particles.

3) X90=C, means ≤C particle size's particle volume content occupy 90% of all the particles.

4) DAV: Average particle size of particles group

5) S/V: Specific surface area, surface to volume ratio/ Surface area per unit volume

6) X[3,2] Weighted average surface area

7) X[4,3] Volume weighted average

8) Particle Size Analysis Chart illustration:

√ The transverse is the particle size value, and the value is logarithmic distribution.

√ The left column is the volume of the cumulative percentage, the corresponding curve is upward trend.

√ The right column is the percentage of the volume of a certain interval, corresponding to the histogram or undulating curve.

√ The data list is corresponding to the test result of analysis chart.
