Winner3008B Fully Automatic Dry Dispersion Laser Particle Size Analyzer

Measurement Range: 0.1-1200μm

It is widely applicable to high-end application scenarios such as research institutes, university laboratories, and enterprise R&D centers and quality testing institutions.

Inquire Now Next Product

Products Description

Winner3008A Fully Automatic Dry Dispersion Laser Particle Size Analyzer

Winner3008B is intelligent laser particle size analyzer with dry dispersion unit, manual and full automatic operation modes. MIE scattering principle as basic, converging light Fourier transform light path, high-performance laser and high sensitive ring photoelectric detector, guarantee good repeatability and accuracy.

It uses air as dispersion medium, and uses turbulent dispersion principle with high precision feeding device, patent powder spray pump and oil-free silent gas source ensuring the samples to be fully dispersed. It's fit for any dry powder materials, especially the powder that takes chemical reaction with water or changes its shape in liquid. Compared to the wet laser particle size analyzer, it's with the same accuracy and repeatability.

Main Specifications

General

Measurement Size

Optics

Software Functions

Model Name	Winner3008B
Principle	Mie scattering
Detector Arrangement	Log-spaced array, test angle from 0.015 degree to 145 degree
Operation Mode	Full automatic / manual control, freely choose.
Full Test Speed per time	<1min Inverval time per test result: 500ms
Outer Dimension	1040mm440mm540mm
Net Weight	58kg

Measurement Range	0.1-1200μm
Number of Channels	84pcs
Accuracy Error	≤1.0% (CRM D50)
Repeatability Error	≤1.0% (CRM D50)
Dispersion	Dry-turbulence dispersion patent technology, normal shock wave shear technique.
Feeding Speed	Adjustable (Variable speed knob))
Dispersion Medium	Compressed air. Pressure: 0 to 6 bar

Light Source	High performance semiconductor red laser (A=639nm), P＞3.0mW Auxiliary green solid semiconductor laser (A=405nm), P＞2.0mW (available)
Optical Bench Alignment System	Full automatic. Precision is up to 0.2um.
Optical Path	Converging light fourier transform optical path
Effective Focal Length	500mm
Laser Safety	Class 1

Analysis Pattern	Free distribution, R-R distribution, log-normal distribution, and statistical models by category.
Statistical Comparison	Statistical comparison of multiple test results. Users can compare and analyze test data from different batches of samples, before and after sample processing, or at different processing times, effectively guiding product quality and cost control.
Data Processing	The system performs intelligent statistical analysis and processing of test data, and outputs the most representative test results.
Custom Analysis	The system can customize the output of any characteristic particle size between D1 and D100, the cumulative percentage of particles larger or smaller than a certain particle size, and the cumulative percentage of a certain particle size range, so as to meet the different requirements of different industries for particle size testing and characterization methods.
Output	Typical particle size values, interval particle size distribution (i.e., differential distribution) data and graphs (histograms or curves), cumulative particle size distribution (i.e., integral distribution) data and curves, etc.
Test Report	Test reports can be exported in various formats such as Word, Excel, image (.bmp), text (.txt), and PDF, meeting different requirements for viewing test reports, data reprocessing, and article citation in any situation.
One-click Operation	Activate the automatic operation mode to complete all operations such as dust collection, air supply, feeding, testing, and data processing with a single click.
Language	Chinese and English interface. Other language interfaces can be added according to user requirements.
GMP	Optional

+ Advantages

(1) Human-based operation mode

Manual and full automatic, easy choose.

(2) Scientific dispersion system

Turbulence dispersion patented technology and normal shock shearing effect make particles sufficient dispersion. Adopt wearable ceramics to improve dispersion system's working life.

(3) Automatic optical alignment

It's composed of precise four phase hybrid stepper motor. Its inching precision is reach to micron level, so light path is always in a good state.

(4) Advanced optical path design

Converging light Fourier transform light patented technology, it makes scattering light not be restricted to lens aperture. Use main detector and large angle auxiliary detector to efficiently collect all angles of scattering light in the testing range. This ensures good testing accuracy and reliability in the whole range.

(5) Precision test report

The results not only show particle distribution, the cumulative value curve and typical particle sizes (D10, D50, D90.), but also support user-defined analyze result, such as any features particle diameter from D0 to D100, cumulative percent (bigger than or less than a certain particle diameter).

(6) Unconstrained free fitting technique

Analysis software collects large quantity of particle information in high speed, and inverses particle distribution by unconstrained free fitting technology. Then it performs intelligent statistics and analysis on test data to ensure the accuracy and repeatability of the output results.

+ Test Principle

+ Application

Winner3008B is widely used for cement, ceramic, medicine, dope, dye, padding, chemical products, catalyst, braize, dust, additive, pesticide, explosive, graphite, photosensitive material, fuel, metal and non-metal powder, calcium carbonate, kaolin, coffee and other powder materials.
It has unique applicability and practicabiity, especially for those occurs chemical reactions, change shapes and lossin liquid. For example, chinese herbal medicine, magnetic materials and powder industry with wide distribution and large particle size.

+ Patent Technology

(1). Optical bench design is protected by patent No.- ZL 2014 2 0378380.8.

(2). Three dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.

(3). MIE scattering principle application patent No.- ZL 2013 2 0812021.4.

(4). Dry particle size analyzer full sealed sample cuvette application is protected by patent No.- ZL.2011 2 0267646.8.

(5). Dual laser beam orthogonal application is protected by patent No.-ZL 2007 2 0025702.0.

(6). Powder dispersion pump design application is protected by patent No.-ZL 2007 2 0018648.7.

(7). Wet circulation installation is protected by patent No.-ZL2010 2 0593526.2.

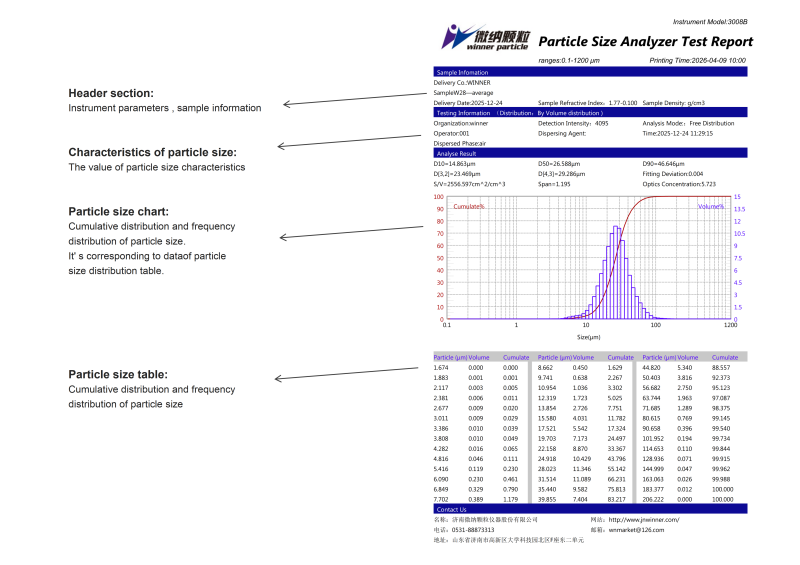

+Test Report
