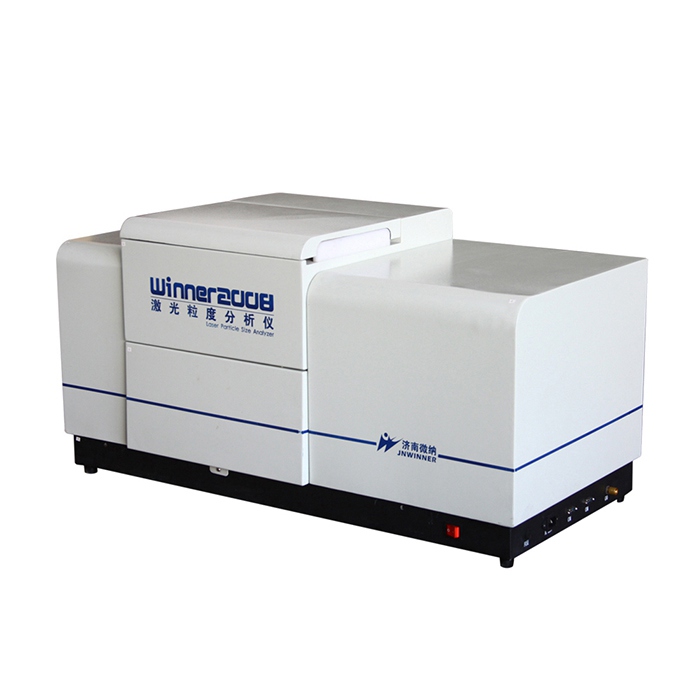

Automatic wet dispersion laser particle size analyzer
Full computer control
Automatic optical alignment
Automatic ultrasonic, circulate, clean
Products Description
OVERVIEW:
Winner2008A full automatic wet laser particle size analyzer measure size is from 0.01 to 2000 micron, Which offer reliable and repeatable particle size analysis for a diverse range of applications.It use dual-beam& multi-spectral detection systems and side light scatter test technology to significantly improve precision and performance of test, on behalf of the domestic advanced level in the field.
MAIN SPECIFICATIONS:
Model Name | Winner2008A |
Standard | GB/T19077-22016/ ISO 13320:2009；Q/0100JWN001-2024 |
Measuring Range | 0.01μm-2000μm |
Channels Number | 127 pcs (Highly sensitive photoelectric probe) |
Accuracy | <0.5% (Deviation of D50 on national standard sample) |
Repeatability | <0.5% (Deviation of D50 on national standard sample ) |
Reproducibility | <0.5% (Deviation of D50 on national standard sample ) |
Light source | High performance semiconductor laser (λ= 632.8nm, P>4.0MW) Auxiliary: Semiconductor laser:λ= 650nm, P>10MW |
Sample Pool | Volume:1L |
Ultrasonic | Frequency:40KHz Power:50W |
Stir | Revolutions Speed: 0-3000RPM (Adjustable) |
Circulate | Rated Flow:30L/min Rated Power:70W |
Dispersion method | Auto Wet method: a dispersion method integrating ultrasonic, circulation and stirring, with built-in dispersion design to prevent large particles from settling. |
Analysis Software | Winner unconstrained free fitting analysis software |
Software function | Analysis modes includes free distribution, R-R distribution, lognormal distribution, and statistical mode by mesh |
Self-test function | Automatically monitor the working status of the instrument, including optical path alignment, sample window cleanliness, laser intensity, flushing effect, automatic control of sample concentration, etc. |
Customized analysis | Customize the output of any characteristic particle size between D1~D100, the cumulative percentage greater than or smaller than a certain particle size, the cumulative percentage of a certain particle size interval, etc., to meet the needs of different industries for particle size testing characterization methods. different requirements |
Test report form | Word, Excel, pictures (.bmp), text (.txt), etc. |
Overflow prevention device | The diffuser has a built-in highly sensitive water level sensor imported from the UK to prevent water overflow and protect the internal devices of the instrument. |
Operation Mode | Full automatic software control |
Optical Calibration System | Full automatic |
Test Speed | 10S-120S |
Volume | L104cm×W44cm×H54cm |
Net Weight | 58Kg |
MAIN FEATURES:
1)Full built-in dispersion system set mechanical stirring, ultrasonic dispersion, and circulation path in one, Big power-circulating pump and Optimization design of pipeline,effectively prevent large particle sediment.
2) Optical Calibration System is composed of precise four phase hybrid stepper motor, Its inching precision is reach to micron level, so light path is always in a good state..
3)Original Unconstrained free fitting technology make particle analysis not be restricted by any functions, truly reflect particles distribution.
4)Converging light Fourier transform light patented technology, make scattering light not be restricted to lens aperture. Double spectrum design and Dual-laser orthogonal light increase the measurement rang, and its precision achieves from 0.01μm to 2000μm.
APPLICATION
Cement, ceramic, medicine, emulsion, dope, dye, padding, chemical products, catalyst, drilling fluid, abrasive, lubricant, braize, cell, germ, food, additive, pesticide, explosive, graphite, photosensitive material, fuel, ink, metal and nonmetal powder, calcium carbonate, kaolin, water-coal-slurry, mineral, non-mineral and other powder materials.
