  • Winner2309A Dry Wet Laser Particle Size Analyzer

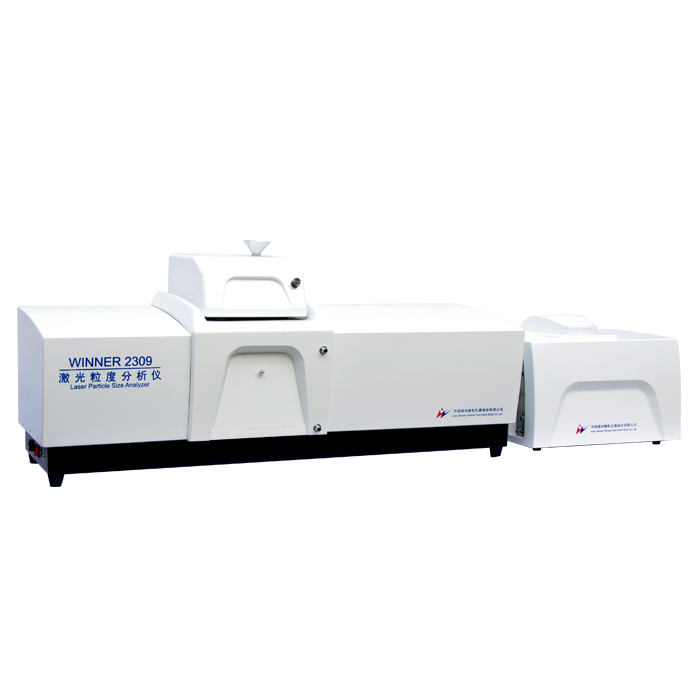

Winner2309A Dry Wet Laser Particle Size Analyzer


Winner2309 is intelligent full automatic laser particle size analyzer,adopt MIE scattering principle, which is integrated model of wet and dry dispersion system. It’s the prior choice for industrial production quality control departments and research institutions which have more types of particles and wide particle size distribution.


Products Description

1. OVERVIEW


  Winner2309 intelligent full automatic laser particle size analyzer,adopt MIE scattering principle, which is integrated model of wet and dry dispersion units. It’s the prior choice for industrial production quality control departments and research institutions which have more types of particles and wide particle size distribution.




2. MAIN SPECIFICATIONS



ModelWinner2309AWinner2309B
StandardISO 13320-1:1999;GB/T19077.1-2308;Q/0100JWN001-2013
PrincipleMIE Scattering Principle
Measuring Range0.01μm -2000μm0.01μm -1200μm
Detector Channels Number

Dry:100    Wet:127

Dry:80     Wet:97

Accuracy error<1% (Deviation of D50 on national standard sample)
Repeatability error<1% (Deviation of D50 on national standard sample )
Light sourceHe-Ne laser (λ= 632.8nm, P>2.0MW Service time>25000hour)
DispersionDry-turbulence dispersion mode, normal shock wave shear technique
Operation ModeManual & Full automatic
FeedingAutomatic vibration feeding
Optical Calibration SystemAutomatic
Software functionAnalysis modeFree Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc.
Statistic MethodVolume Distribution, Quantity Distribution
Statistic ComparisonSeveral Testing Results of samplesDifferent batches of samples testing result,Samples before and after processing, Test result of samples in different time.
User-defined AnalysisFigure out percentage according to the particle sizeFigure out particle size according to the percentageFigure out percentage according to the particle size rangeMeet demands of representation of particle test in different industries
Test ReportWord, Excel,Photo( Bmp), Text etc
Multiple language SupportMultiple language Support
Intelligent operationBetter Repeatability after remove human-factor
Test Speed<1min per time
Power supply220V
VolumeL92cm×W44cm×H50cm
Net Weight70Kg


3. MAIN FEATURES


 1)Wet and dry dispersion unit, This instrument integrated wet and dry dispersion test in one, successfully resolved the  problem of dry and wet technology integration, realize one key to switch.


2) Intelligent full automatic operation system and manual operation, freely choose.  Choose automatic mode, very easy and simple to learn,support one key operation.


3) Optical Path System patented technologyConverging light Fourier transform path system, enables scattering light be not restricted to the lens aperture limit, and the dual laser orthogonal light use auxiliary semiconductor laser to expand the measurement range by enlarge scattering angle from 45 degrees to 135 degrees.


4) Automatic Optical path alignment System,which is composed of precise four phase hybrid stepper motor, Its inching precision is reach to micron level,make optimum optical paths to ensure accurate and stable test.


5) Built-in  Dry Disprsion sample dispersion unit, set mechanical stirring, ultrasonic dispersion, and circulation path in one, It ensures particles uniform dispersion and distribution,avoids many bad phenomenon, such as uneven distribution of particles, large particles deposit because of the long outer dispersing system tube,  And it guarantees the representativeness of test result.


6)Instrument SoftwareOriginal Unconstrained free fitting technology collect scattering data during the measurement process, make particle size analysis not be restricted by any functions, truly reflect particle size distribution.


4. Application

Winner2309A Dry Wet Laser Particle Size Analyzer
