  • Winner3009 Automatic Wide Range Dry Laser Particle Size Analyzer

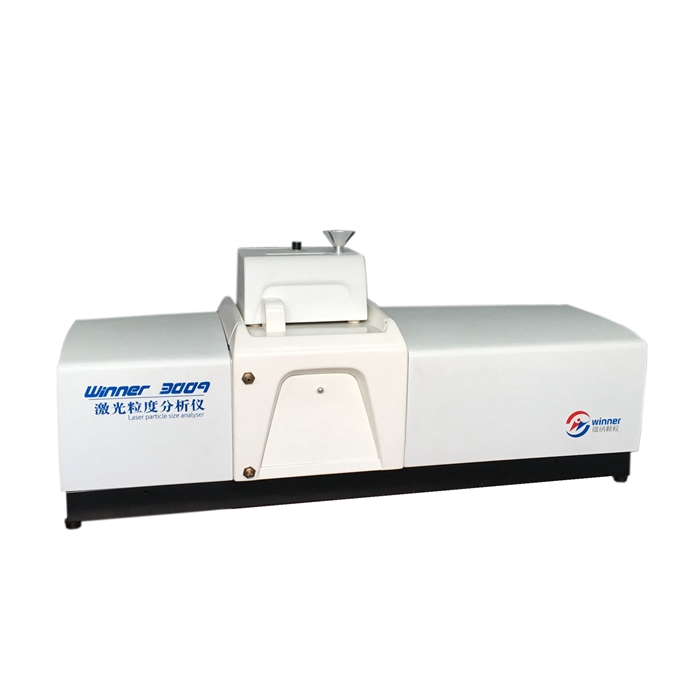

Winner3009 Automatic Wide Range Dry Laser Particle Size Analyzer

 Winner3009 intelligent dry laser particle size analyzer, use compresed air as disperison manual and full automatic operation modes. MIE scattering principle as basic, Converging light Fourier transform light path, Highly stable He-Ne laser and High sensitive ring photoelectric detector,guarantee good repeatability and accuracy.


Products Description



Overview


Winner3009 intelligent dry laser particle size analyzer, manual and full automatic operation modes. MIE scattering principle as basic, Converging light Fourier transform light path, Highly stable He-Ne laser and High sensitive ring photoelectric detector,guarantee good repeatability and accuracy. It use air as dispersion medium, and use turbulent dispersion principle with High precision feeding device, patent powder spray pump and oil-free silent gas source guaranteeing the samples to be fully dispersed. It’s fit for any dry powder materials, especially the powder that takes chemical reaction with water or changes its shape in liquid. Compared to the wet laser particle size analyzer, It’s with the same accuracy and repeatability.


Main Specifications


ModelWinner3009
StandardISO 13320-1:2009;GB/T19077.1-2016;Q/0100JWN001-2020
Measuring Range0.1-2000μm
Channels Number100
Accuracy   <0.5%   (Deviation of  D50 on national standard sample)
Repeatability<0.5%   (Deviation of  D50 on national standard sample )
Light sourceHe-Ne laser (λ= 632.8nm,  P>2.0MW)
DispersionDry-turbulence dispersion mode, normal shock wave shear technique
Operation ModeManual & Full automatic
Operation temperature+5°C to +40°C
FeedingAutomatic vibration feeding
Optical Calibration SystemAutomatic
Software functionAnalysis modeFree Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc.
Statistic MethodVolume Distribution, Quantity Distribution
Statistic ComparisonSeveral Testing Results of samplesDifferent batches of samples testing result,Samples before and after processing, Test result of samples in different time.
User-defined AnalysisFigure out percentage according to the particle sizeFigure out particle size according to the percentageFigure out percentage according to the particle size rangeMeet demands of representation of particle test in different industries
Test ReportWord, Excel,Photo( Bmp), Text etc
Multi-language SupportMulti-language Support
Intelligent operation Automatically control water inflow, dispersion,test and analysis.Better Repeatability after remove human-factor
Test Speed<1min for each time
Power supply220V
VolumeL105cm×W44cm×H54cm
Net Weight58Kg


 Main Features


1) Advanced testing optical path.Converging light Fourier transform light patented technology, make scattering light not be restricted to lens aperture. Use main detector and large angle auxiliary detector efficiently collect all angles of scattering light in the testing range, ensure good testing accuracy and reliability in the whole range.


2)Scientific dispersion systemTurbulence dispersion patented technology and Normal shock shearing effect, make particles sufficient dispersion, Adopt wearable ceramics improve dispersion system’s working life.


3)Human-based operation modeManual and Full automatic, easy choose.


4)High precision-automatic optical path calibration systemIt’s composed of precise four phase hybrid stepper motor, Its inching precision is reach to micron level, so light path is always in a good state.


5)Intelligent data analysis-winner unique software supportAnalysis software collect large quantity of particle information in high speed, and inverse particle distribution by unconstrained free fitting technology, then intelligent statistics and analysis of testing data, ensure accuracy and repeatability of the output.


6) The results not only show particle distribution,the cumulative value curve and typical particle sizes( D10, D50, D90.), but also support user-defined analyze result, such as any features particle diameter from D0 to D100,Cumulative percent(bigger than or less than a certain particle diameter).


7) Users can design the test report output and display forms according to industry requirements.


Application

Winner3009 Automatic Wide Range Dry Laser Particle Size Analyzer
