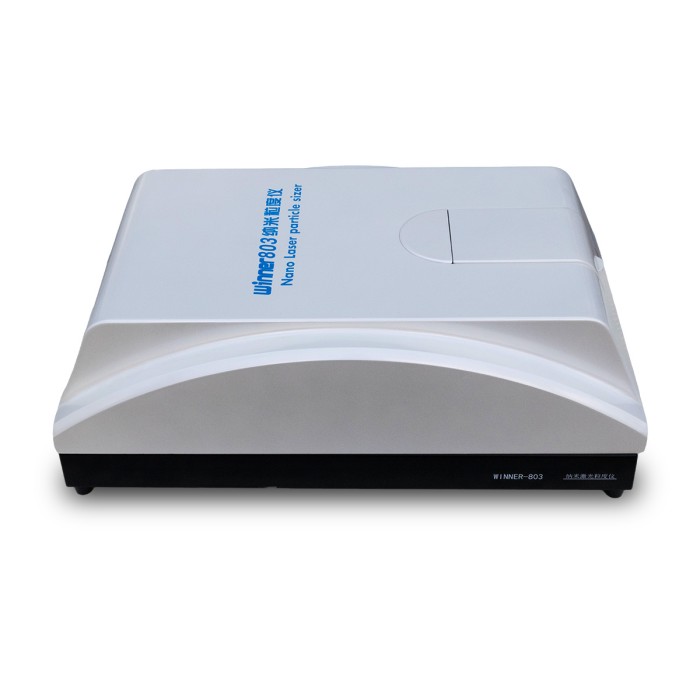

Winner803 Photon Correlation DLS Nanoparticle Size Analyzer

Measurement Range: 0.3-10000nm

It is widely applicable to high-end application scenarios such as research institutes, university laboratories, and enterprise R&D centers and quality testing institutions.

Inquire Now Next Product

Products Description

Winner803 dynamic light scattering nanometer particle size analyzer which based on the dynamic light scattering principle. Based on Brownian motion principle, smaller particle, faster speed, bigger particle, more slowly. It adopt great performance of Japan HAMAMATSU photomultiplier and self-developed high speed digital correlator as core parts, Get diffusion coefficient by test scattering light change in some angle, and calculate particle diameter and distribution according to stokes-Einstein equation. The machine is with characters of fast calculation, high resolution ration, good accuracy and repeatability. It's widely used in company product lab research and university use, especialy good for testing particle size distribution of coloured particles.

Main Specifications

General

Measurement Size

Optics

Software Functions

Model Name	Winner803
Sample Cell Volume	101040mm (1-4ml)
Temperature Control Range	5-90℃
Temperature Control Accuracy	±0.1℃
Operating Mode	SOP settings, fully automated testing, one-click automatic testing, and one-click switching between Chinese and English.
Outer Dimension	600380230mm
Net Weight	12kg

Measurement Range	0.3-10000nm (Reference to sample)
Measurement Concentration	0.1mg/ml-100mg/ml (Reference to sample)
Accuracy Error	≤1% (CRM D50)
Repeatability Error	≤1% (CRM D50)
Test Speed	＜5min
Digital Correlator	10^11 dynamic linearity. Maximum 10,000 channels.
Delay Time	100ns-10ms

Light Source	Main light source: Semiconductor laser λ=635nm，P=1-40mW (Adjustable) Auxiliary light source: Blue laser λ=405nm，P=＞2mW
Detector	Photomultiplier tube (PMT)
Scattering Angle	90°

Statistical Comparison	Statistical comparison of multiple test results. Users can compare and analyze test data from different batches of samples, before and after sample processing, or at different processing times, effectively guiding product quality and cost control.
Data Processing	The system performs intelligent statistical analysis and processing of test data, and outputs the most representative test results.
Custom Analysis	The system can customize the output of any characteristic particle size between D1 and D100, the cumulative percentage of particles larger or smaller than a certain particle size, and the cumulative percentage of a certain particle size range, so as to meet the different requirements of different industries for particle size testing and characterization methods.
Output	Typical particle size values, interval particle size distribution (i.e., differential distribution) data and graphs (histograms or curves), cumulative particle size distribution (i.e., integral distribution) data and curves, etc.
Test Report	Test reports can be exported in various formats such as Word, Excel, image (.bmp), text (.txt), and PDF, meeting different requirements for viewing test reports, data reprocessing, and article citation in any situation.
Language	Chinese and English interface. Other language interfaces can be added according to user requirements.
GMP	GMP (Optional)

+ Advantages

(1) Dual-wavelength laser, automatic switching

Exclusively using dual-wavelength (A= 450nm, A= 532nm) laser to build the optical system. The correlation spectrum detection system is not only small size, but also has strong anti-interference ability, thus ensuring the stability of the test. For some samples with absorbance properties, which can not be detected by traditional single-wavelength laser, it can be tested effectively.

(2) Advanced test principle

Dynamic light scattering principle and photon correlation spectrum technology, according to Brownian motion speed of particle to test particle size, different size of particles have different speed, when laser illuminate these particles, it will make scattering light happendifferent speed of fluctuations-downs.
Photo correlation spectrum method will analyze these particle size according to Photon fluctuations -downs in particular direction.

(3) High resolution

Using PCR technology test nanometer-scale particle size, must be able to distinguish nanosecond signal fluctuations. The core components of the instrument is CR256 digital correlator developed by Winner. Its resolution speed can reach up to 8ns.

(4) High sensitivity and noise-signal ratio

Detector is composed of imported HAMAMATSU photomultiplier, so ensure good accuracy.

(5) High speed data collection and calculation

Self-developed patent product-CR256 digital correlation, it could finish dynamic scattering light intensity collection and auto correlative function real time calculation, Data processing speed is up to 162M, effectively reflect dynamic scattering light information of different sizes of particles.

(6) High stable optical path system

Photon correlation spectrum detect system adopts optical-fibre technology, smaller size and high anti-interference and reliability.

(7) High precision constant temperature control system

Semiconductor temperature control technology, precision control within 0.1°C. It makes samples be in a constant state throughout the testing process, prevent testing error because temperature change will change liquid viscosity and Brownian movement speed.

(8) Precision test report

Output parameters: Real particle size distribution, freely set D10-D100, D[4,3), D[3,2], D[2,11], D[1,0] and specific surface area.

+ Test Principle

+ Application

Nano metallic oxide, Nano metallic powder, Nano ceramic material, protein, polymer latex, preparation of pharmaceutical, water/oil emulsion, paint, coating material, pigment, ink, toner, cosmetics and other fields of research, preparation and application of nano materials.

+ Patent Technology

(1). Optical bench design is protected by patent No.- ZL 2014 2 0378380.8.

(2). Three dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.

(3). MIE scattering principle application patent No.- ZL 2013 2 0812021.4.

(4). Dry particle size analyzer full sealed sample cuvette application is protected by patent No.- ZL.2011 2 0267646.8.

(5). Dual laser beam orthogonal application is protected by patent No.-ZL 2007 2 0025702.0.

(6). Powder dispersion pump design application is protected by patent No.-ZL 2007 2 0018648.7.

(7). Wet circulation installation is protected by patent No.-ZL2010 2 0593526.2.

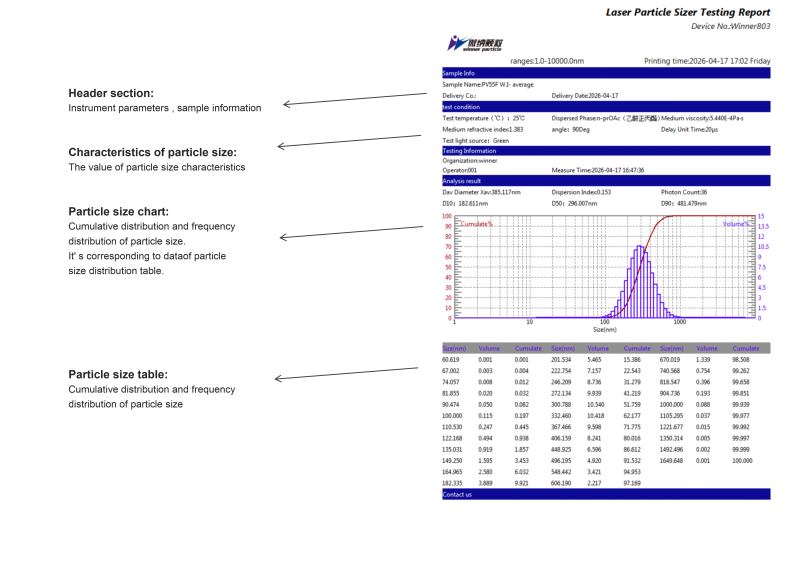

+Test Report
