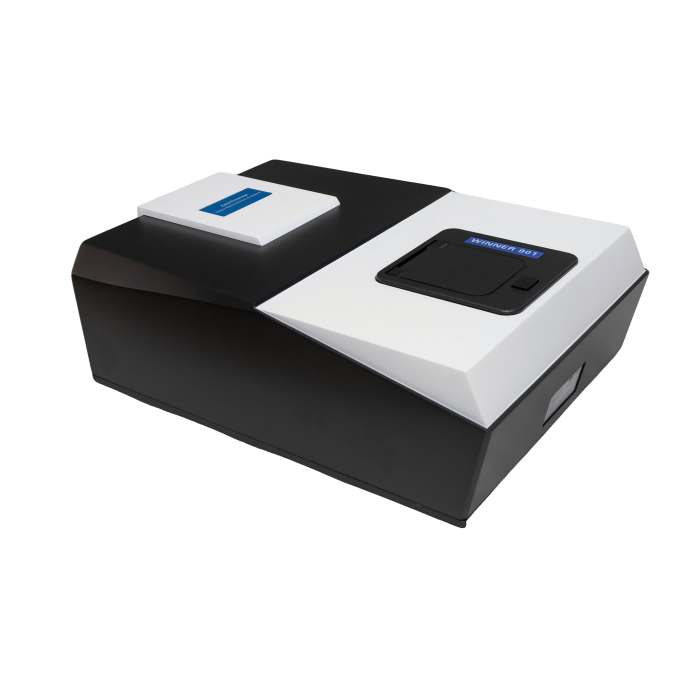

Winner901 Photon Correlation DLS Nanoparticle Size and Zeta Potential Analyzer

Measurement Range: 1-10000nm; -500-+500mV

It is widely applicable to high-end application scenarios such as research institutes, university laboratories, and enterprise R&D centers and quality testing institutions.

Inquire Now Next Product

Products Description

Winner901 Nano Particle Size and Potential Analyzer is a new high-end dynamic light scattering particle size analyzer product launched by Winner Particle, which has dual testing capabilities of zeta potential and nano-particle size.

Winner901 uses electrophoretic light scattering technology to measure zeta potential and obtain isoelectric point. Compared with other instruments of the same type at home and abroad, it has significant advantages, and can be used in various experiments in conjunction with the laser particle size distribution analyzer.

Main Specifications

General

Measurement Size

Optics

Software Functions

Model Name	Winner901
Principle	Electrophoretic light scattering
Sample Cell Volume	101040mm (1-4ml); 101060mm, 1ml
Temperature Control Range	5-90℃
Temperature Control Accuracy	±0.1℃
Operating Mode	SOP settings, fully automated testing, one-click automatic testing, and one-click switching between Chinese and English.
Outer Dimension	600380230mm
Net Weight	12kg

Measurement Range	1-10000nm (Reference to sample); -500mV—+500mV
Measurement Concentration	0.1mg/ml-100mg/ml (Reference to sample)
Accuracy Error	≤1% (CRM D50)
Repeatability Error	≤1% (CRM D50)
Electrophoretic Mobility Range	>±20μm.cm/V.s
Highest Conductivity	200mS/cm (Reference to sample)
Test Speed	＜5min
Digital Correlator	10^11 dynamic linearity. Maximum 10,000 channels.
Delay Time	100ns-10ms

Light Source	Semiconductor laser λ=635nm，P=1-40mW (Adjustable)
Detector	Photomultiplier tube (PMT)/High performance (APD)
Scattering Angle	90°; 18°

Data Processing	The system performs intelligent statistical analysis and processing of test data, and outputs the most representative test results.
Output	Typical particle size values, interval particle size distribution (i.e., differential distribution) data and graphs (histograms or curves), cumulative particle size distribution (i.e., integral distribution) data and curves, etc.
Test Report	10^11 dynamic linearity, up to 10,000 channels.
Language	Chinese and English interface. Other language interfaces can be added according to user requirements.

+ Advantages

(1) Test principle

Using the principle of electrophoretic light scattering and photon correlation spectroscopy, the size of particle Zeta potential wasdetermined according to the electrophoretic movement speed of particles in liquid. The population velocity of the electrophoretic motion of the particles, and the amount of Doppler shift of the scattered light caused by the laser irradiation of these particles, varies. Photon correlation spectroscopy analyzes the size of particle Zeta potential according to the frequency shift.

(2) Ultra-high-speed data acquisition

The core component of the instrument is through the HA1024 digital correlator, which can complete the collection of electrophoretic scattered light intensity and the calculation of the auto-correlation function in real time, so as to effectively reflect the information of the electrophoretic movement speed of the particles and lay the foundation for the accuracy of the Zeta potential test results.

(3) High sensitivity signal-to-noise ratio

Using professional-grade high-performance photomultiplier tubes, it has extremely high sensitivity and signal-to-noise ratio to photon signals.

(4) High speed data collection and calculation

Using semiconductor temperature control technology, the temperature control accuracy is as high as 0.1 °C, so that the sample is always in a constant temperature state during the whole test process, avoiding the test deviation caused by the change of liquid viscosity and Brownian motion caused by temperature changes, and ensuring the accuracy and stability of the test results.

(5) Stable optical path system

The optical path system constructed by the optical frequency shifting device and the optical fiber coupling technology makes the detection system not only small in size, but also has strong anti-interference ability, thus ensuring the stability of the test.

+ Application

+ Patent Technology

(1). Optical bench design is protected by patent No.- ZL 2014 2 0378380.8.

(2). Three dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.

(3). MIE scattering principle application patent No.- ZL 2013 2 0812021.4.

(4). Dry particle size analyzer full sealed sample cuvette application is protected by patent No.- ZL.2011 2 0267646.8.

(5). Dual laser beam orthogonal application is protected by patent No.-ZL 2007 2 0025702.0.

(6). Powder dispersion pump design application is protected by patent No.-ZL 2007 2 0018648.7.

(7). Wet circulation installation is protected by patent No.-ZL2010 2 0593526.2.

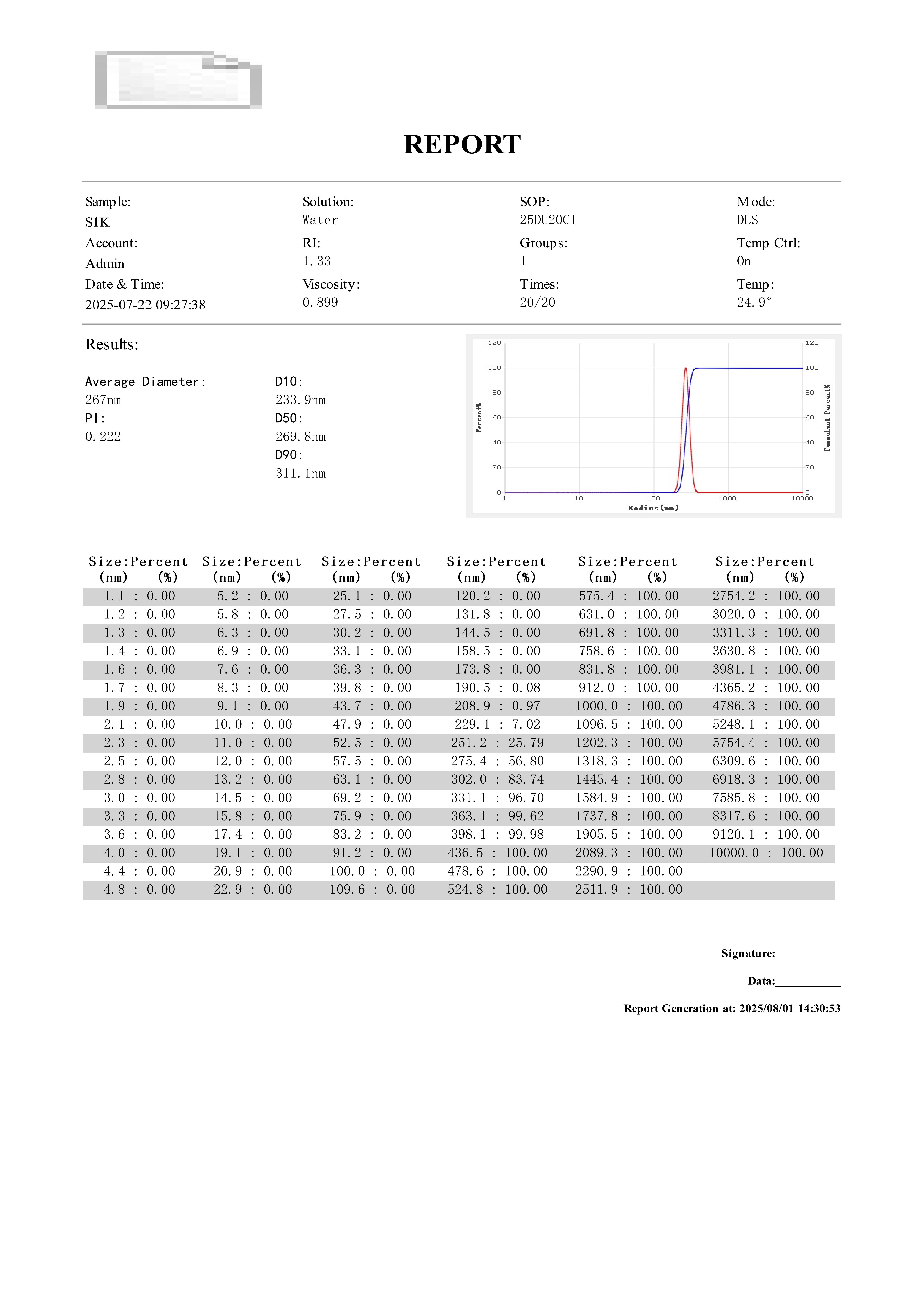

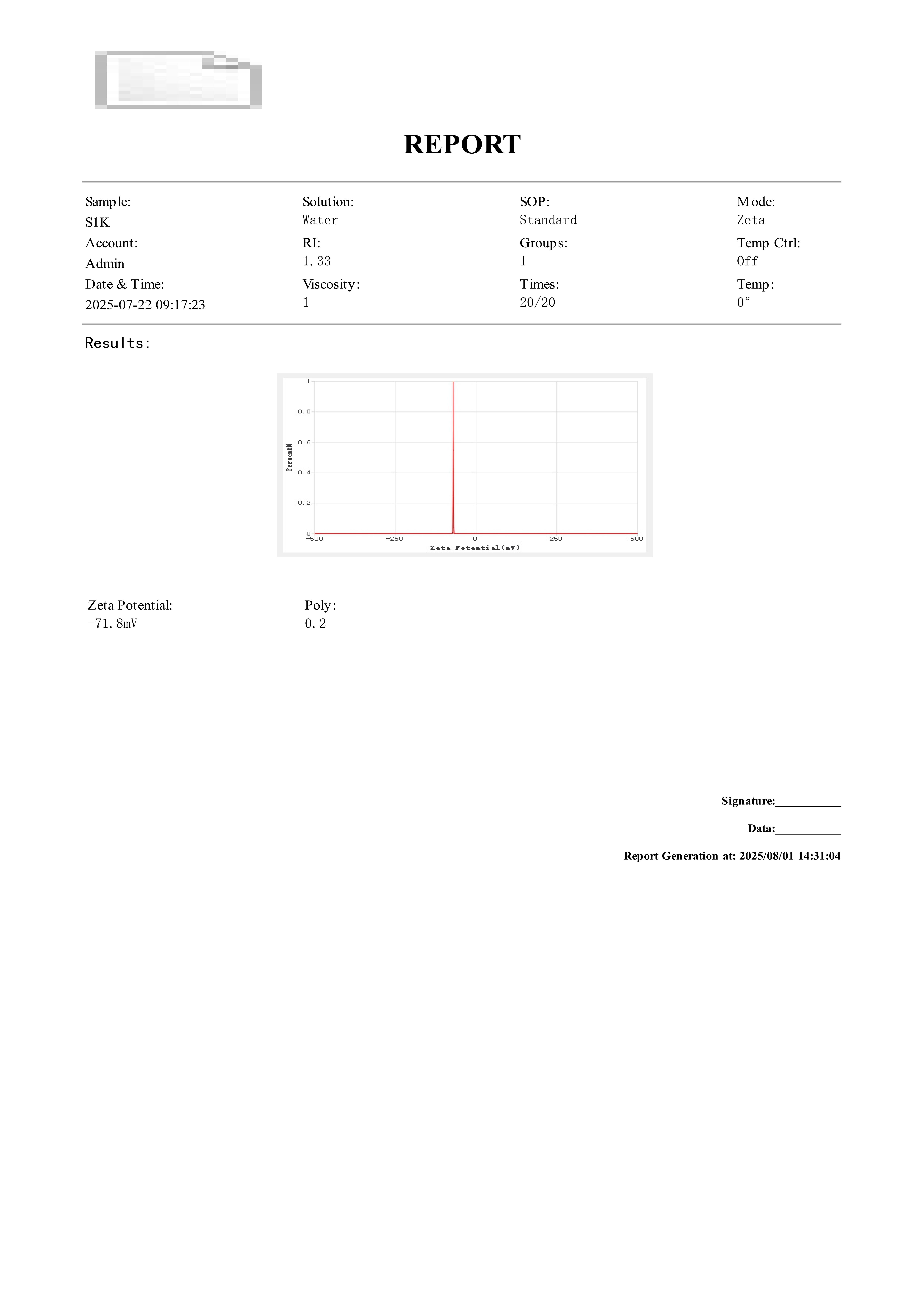

+Test Report
