Winner100D Dynamic Wet Particle Image Analyzer

Measurement Range: 5-3000μm (Customizable)

It is widely applicable to high-end application scenarios such as research institutes, university laboratories, and enterprise R&D centers and quality testing institutions.

Inquire Now Next Product

Products Description

Winner100D is a newly launched exclusive dynamic particle image analyzer by Winner Particle. It measures particle size distribution and morphology in the range of 5 μm to 3000 μm, in compliance with the international standard ISO/DIS 13322-2. The instrument can capture, store and process real-time images of sample particles. With a larger sampling volume and statistical mode, the analysis results are more representative and reproducible.

Main Specifications

General

Measurement Size

Optics

Output Analysis Parameter

Model Name	Winner100D
Execution Standards	ISO/DIS-13322-2
Outer Dimension	Main unit: 700mm300mm450mm Wet module: 415mm350mm380mm
Net Weight	Main unit: 15kg Wet module: 15kg

Measurement Range	5-3000μm (Customizable)
Accuracy Error	≤1.0% (Deviation of D50 on national standard sample)
Repeatability Error	≤1.0% (Deviation of D50 on national standard sample)
Feeding Method	Auto wet dispersion system
Dispersion Method	The built-in integrated circulation dispersion in the sample tank, combined with ultrasonic dispersion and external ultrasonic dispersion at the sample window, forms a dual ultrasonic synergistic dispersion system, which can significantly improve the dispersion effect.
Number of Particles Analyzed	＞100000 pcs/min
High Speed Imaging Module	Maximum frame rate 120 frames/S

Lens Group	HD telecentric lens (specification is optional)
Optical Lighting	Highlight parallel light source

Particle Size	Particle size distribution, typical value, maximum particle size, proportion of a specific particle size range, proportion greater than or smaller than a certain particle size.
Particle Size Morphology	Aspect ratio and distribution, circularity and distribution, particle image
Particle Count	The number of all particles participating in the detection

+ Advantages

(1) Particle morphology analysis

Offer Sphericity, circularity, roundness, aspect ratio, sphericity and other particle morphology prepositional parameters, and also add self-developed software for for particle circularity (roundness) computation module. The analysis of the particle circularity in line with US oil and gas standards: API_RP58. And geological plates suitable for this abrasive, oil and gas and other industry standards.

(2) Compared with the static sample preparation method of the static imager, Winner100D can measure the massive particle data, which is of great significance for the representativeness of the particle data.

(3) Higher clarity

The combination of wide field, far-reaching central light path and constrained plane sampling window can effectively improve the clarity of particle sample photos.

+ Application

Winner100D wet dynamic image particle size analyzer is widely used in non-metallic minerals, ceramics, coatings, inks, pigments, fillers, pharmaceuticals, food, lithium battery materials, abrasives, metal powders, cement, chemical powders, water treatment, geological exploration, research institutes and universities and other fields.

It can realize real-time particle size, particle shape, concentration and particle count analysis of particles in suspension, meeting diverse testing demands from routine production quality control to high-end scientific research.

+ Analysis Software Function

1. Task management mechanism: according to the task management, ensure that the data management is in good order.

2. Video acquisition: Video and pictures are collected at any time to retain the required video data.

3. Scale calibration: Through scale calibration operation, the actual size can be correlated, so that the actual size value can be obtained directly on the image.

4. Picture batch processing mode: With this mode, it can process while collecting, without memory limitation, and get more accurate data by processing a large number of pictures.

5. Tool Set for Automatic Particle Processing: 12 Automatic Processing Tools: Automatic Elimination of Particle Adhesion, Automatic Elimination of Miscellaneous Points, Automatic Elimination of Incomplete Boundary Particles, Automatic Filling of Hollow Areas of Particles, Automatic Smoothing of Particle Edges, etc.

6. Software output parameter:

Particle size: particle size distribution, D10, D50, D90, Dmax, typical particle size (customizable); Customizable: interval content, greater than / less than content, particle gradation;

Particle shape: aspect ratio and distribution, circularity and distribution, particle image, particle count

7. Software other functions:

Custom header display for Logo and operator information;

Customizable setting and elimination of particle size, circularity and aspect ratio;

Interval gradation and custom gradation settings;

Dual-lens automatic switching, electric focus adjustment;

Real-time concentration detection and particle count display on test interface;

Manual / automatic control for circulation module;

Image saving function, etc.

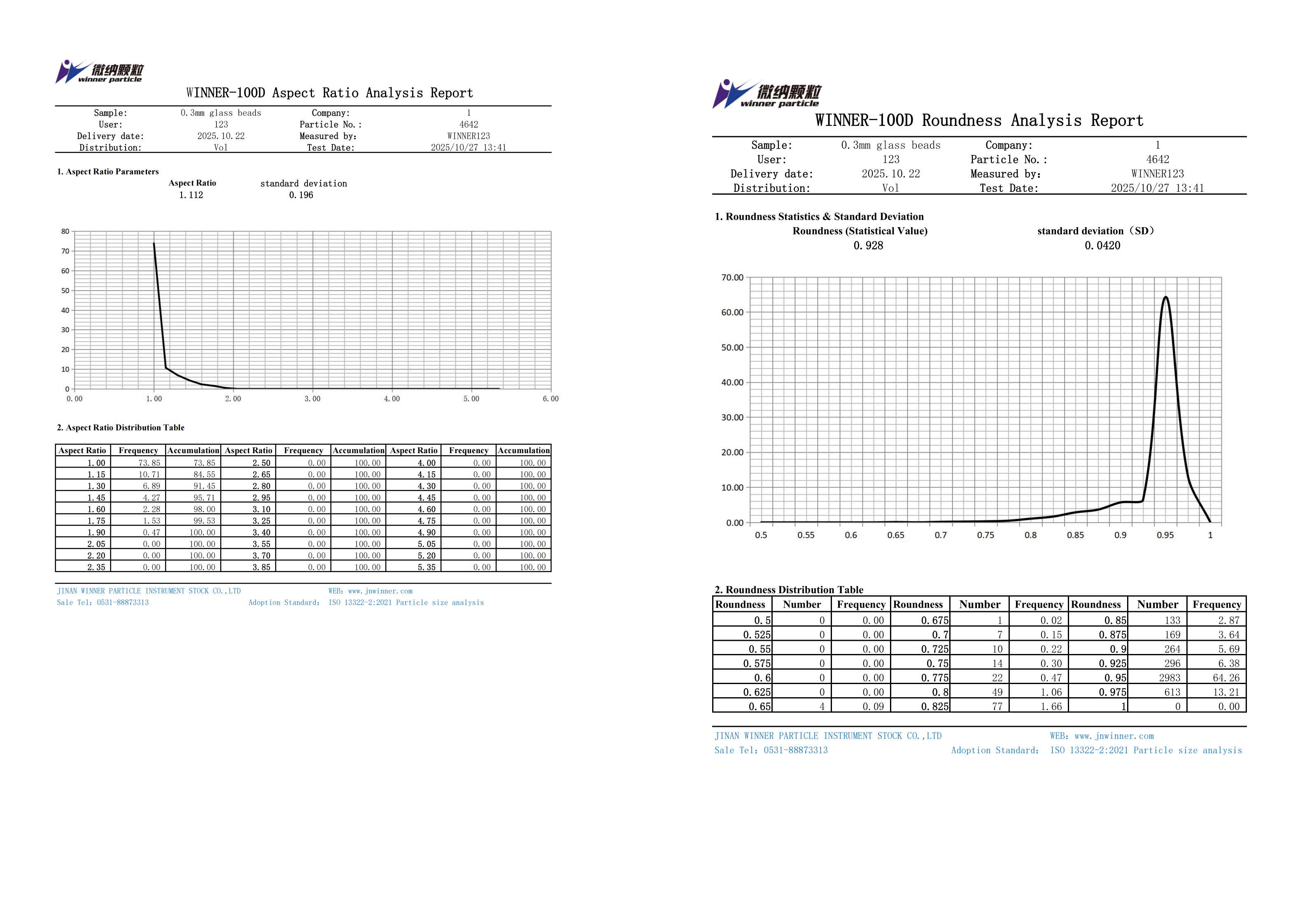

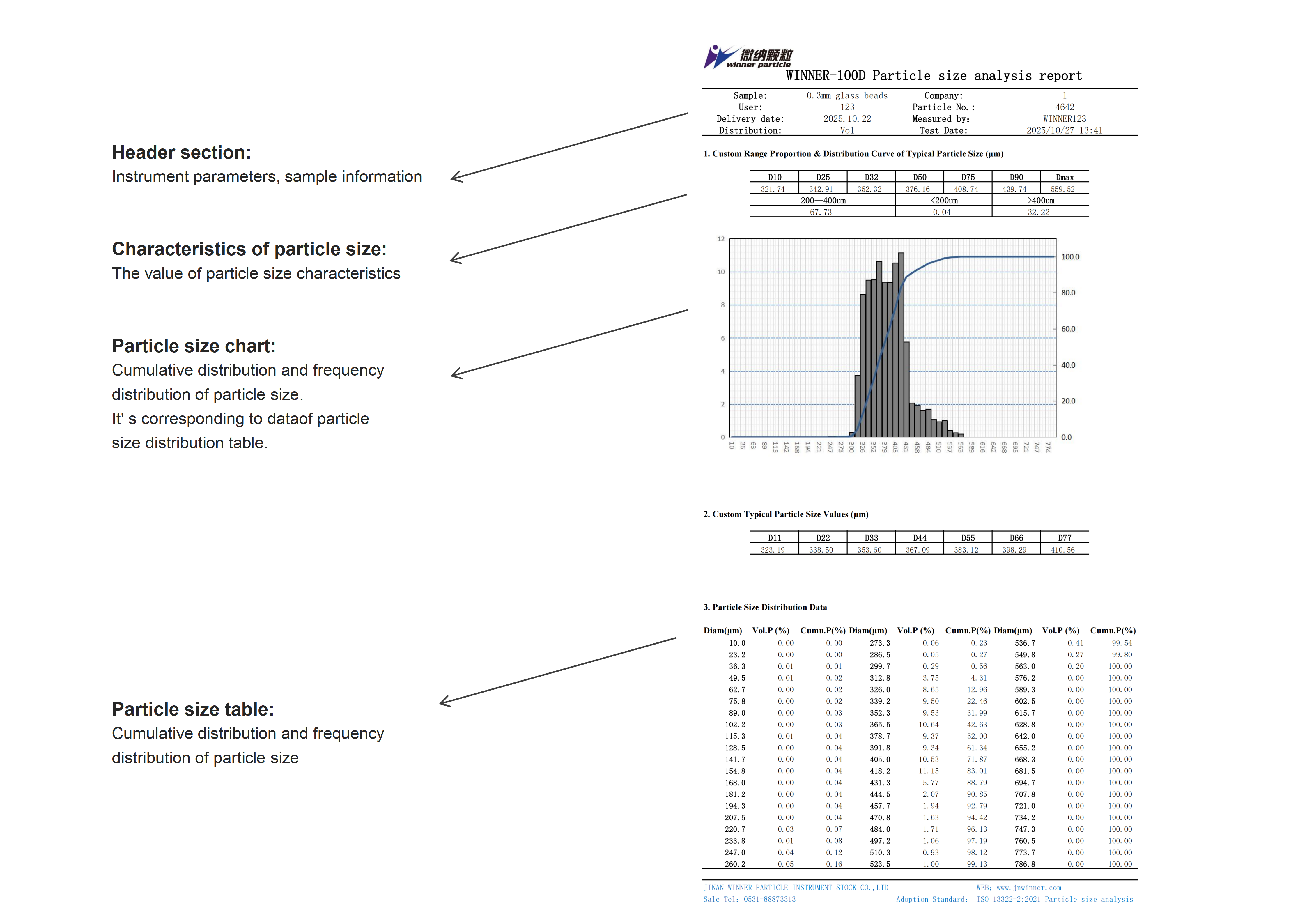

+Test Report
