PT Winner219 is a newly launched exclusive automatic particle image analyzer by Winner Particle, which support dynamic and static two models for test particlesize distribution and morphology in 5μm-10000μm. Standard model only supports static mode.
Measurement Range: 5-10000μm (Particle size testing range)
It is widely applicable to high-end application scenarios such as research institutes, university laboratories, and enterprise R&D centers and quality testing institutions.
Products Description
Winner219 is a newly launched exclusive automatic particle image analyzer by Winner Particle, which support dynamic and static two models for test particlesize distribution and morphology in 5μm-10000μm. Standard model only supports static mode.
Main Specifications
| Model Name | Winner2119 |
| Execution Standards | ISO/DIS-13322-2 |
| Outer Dimension | 500mm*420mm*680mm |
| Net Weight | 28kg |
| Measurement Range | 5-10000μm (Particle size testing range) |
| Maximum Magnification | 2000 |
| Accuracy Error | ≤1.0% (Deviation of D50 on national standard sample) |
| Repeatability Error | ≤1.0% (Deviation of D50 on national standard sample) |
| 2D Mobile Platform | Standard stroke 100*100mm (Customizable) |
| Electric Focusing | 60mm stroke |
| Distributed Method | Dispersant (dry), wet dispersion |
| Light Source | Low-angle LED reflective light source and high-brightness parallel LED transmissive light source. |
| High-speed Imaging | 5-megapixel high-speed industrial camera |
| Particle Size | Includes typical particle size values such as particle size distribution, D10, D50, and D90 (which can be customized), and maximum particle size. |
| Customizable | Range content, content greater than or less than a certain particle size, particle size distribution. |
| Particle Morphology | Aspect ratio and distribution, roundness and distribution, and particle images. |
| Particle Count | Calculate the number of particles. |
| Other Functions | Customizable headers display logos, tester information, and task management mechanisms. Standard index distribution gradation is available and can be customized. |
| Language | Chinese and English interface. Other language interfaces can be added according to user requirements. |
| Smart Mode | It features an intelligent operation mode that can automatically control the testing process. This not only reduces the workload of testers but also improves repeatability. |

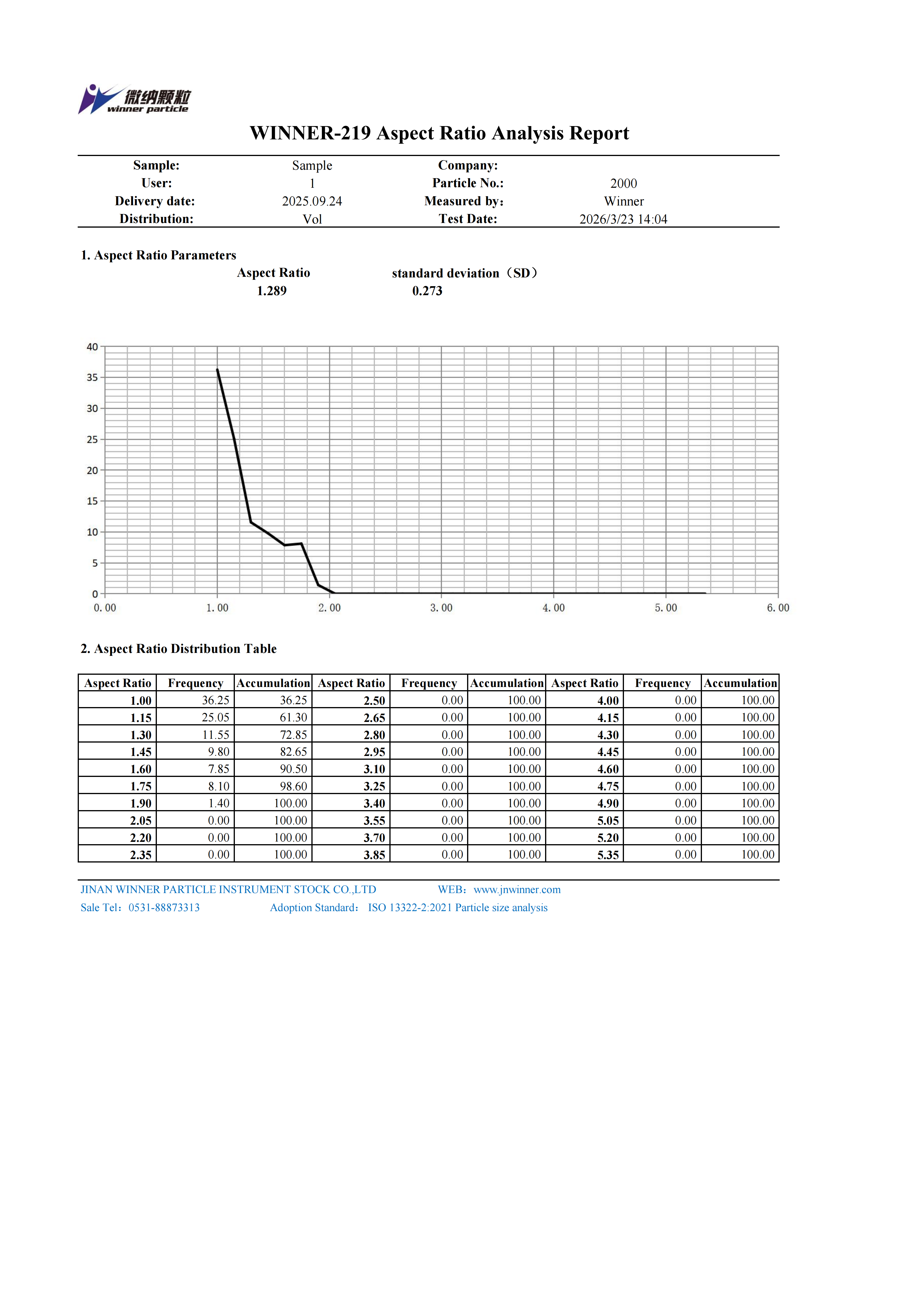

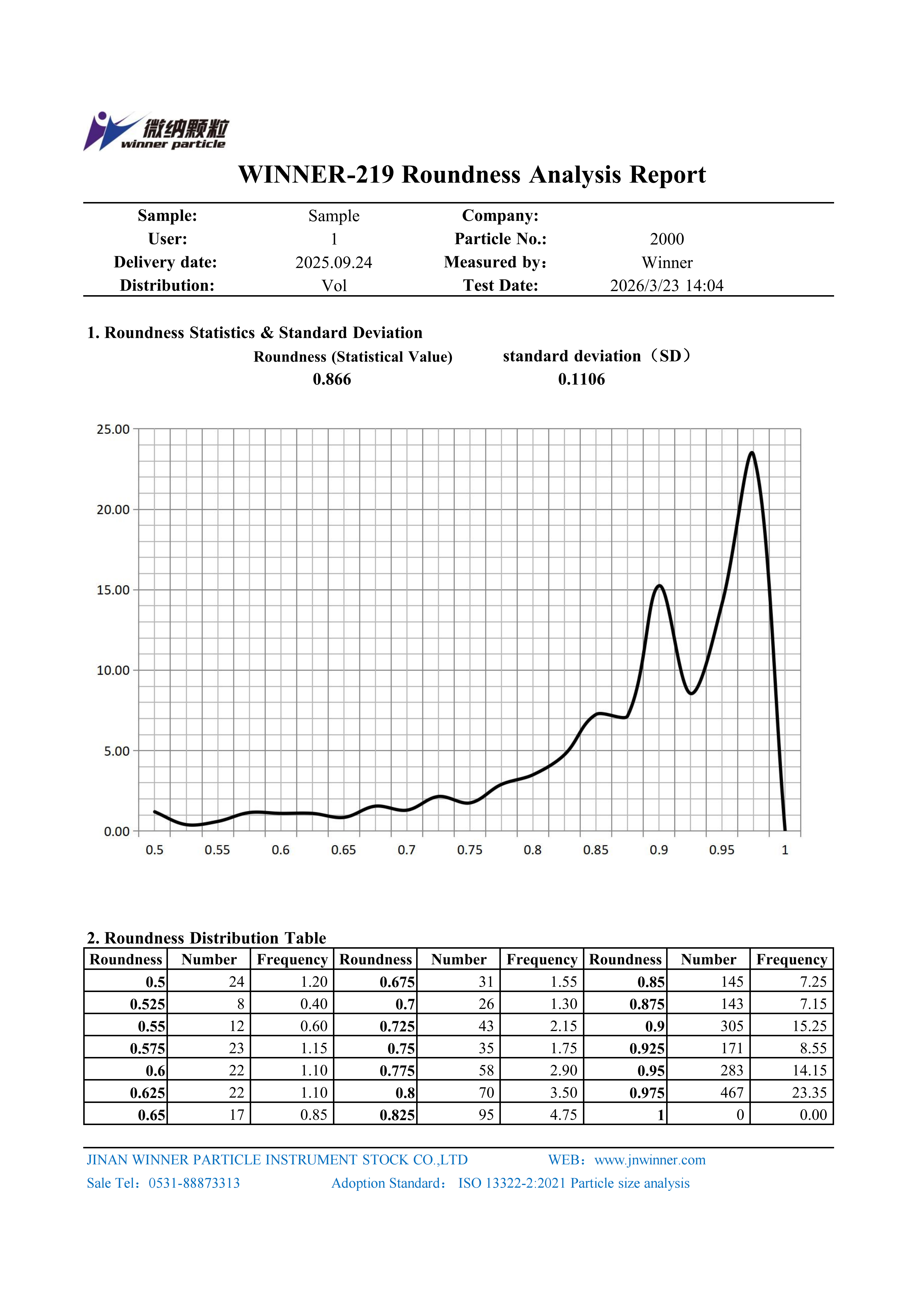

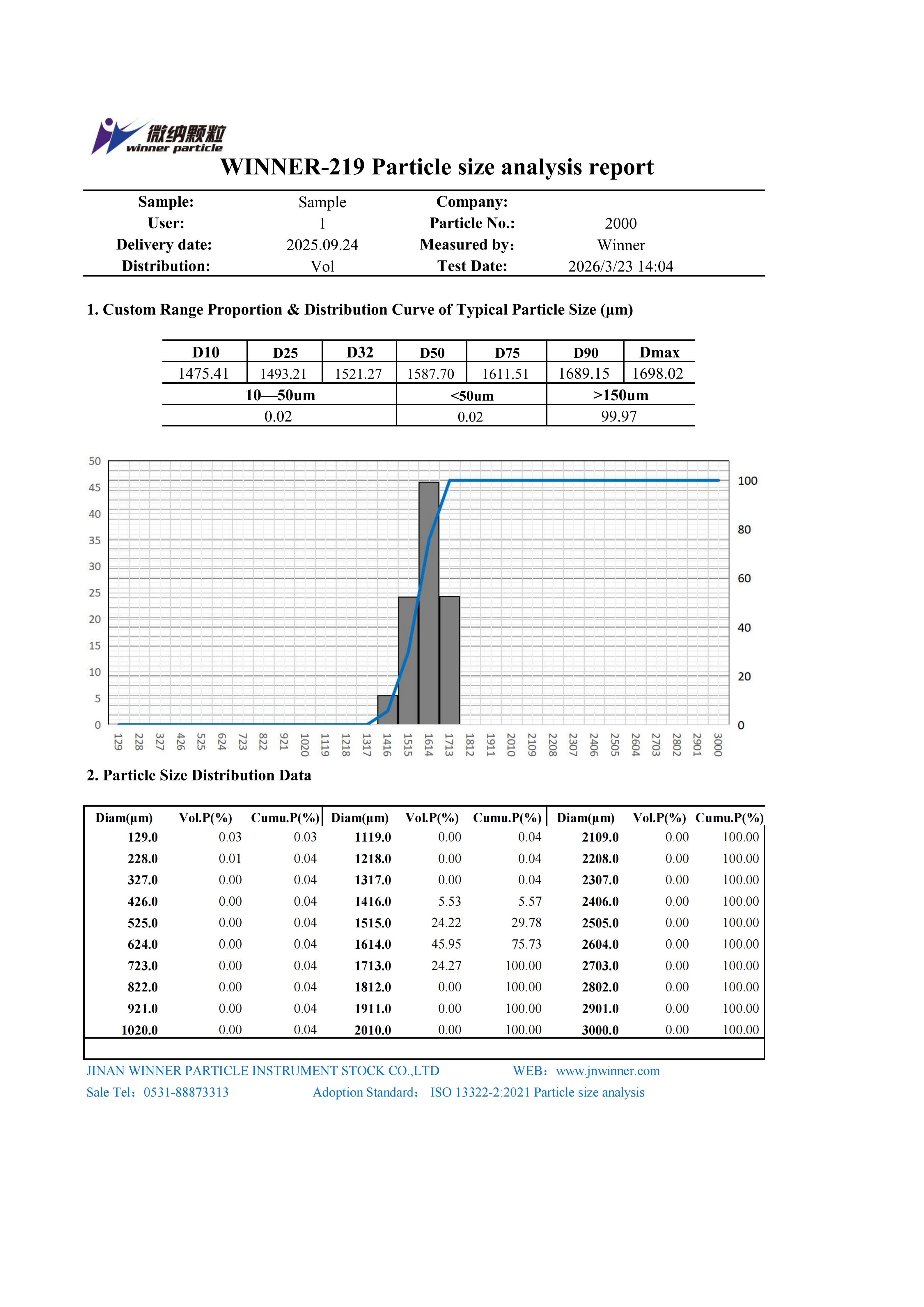

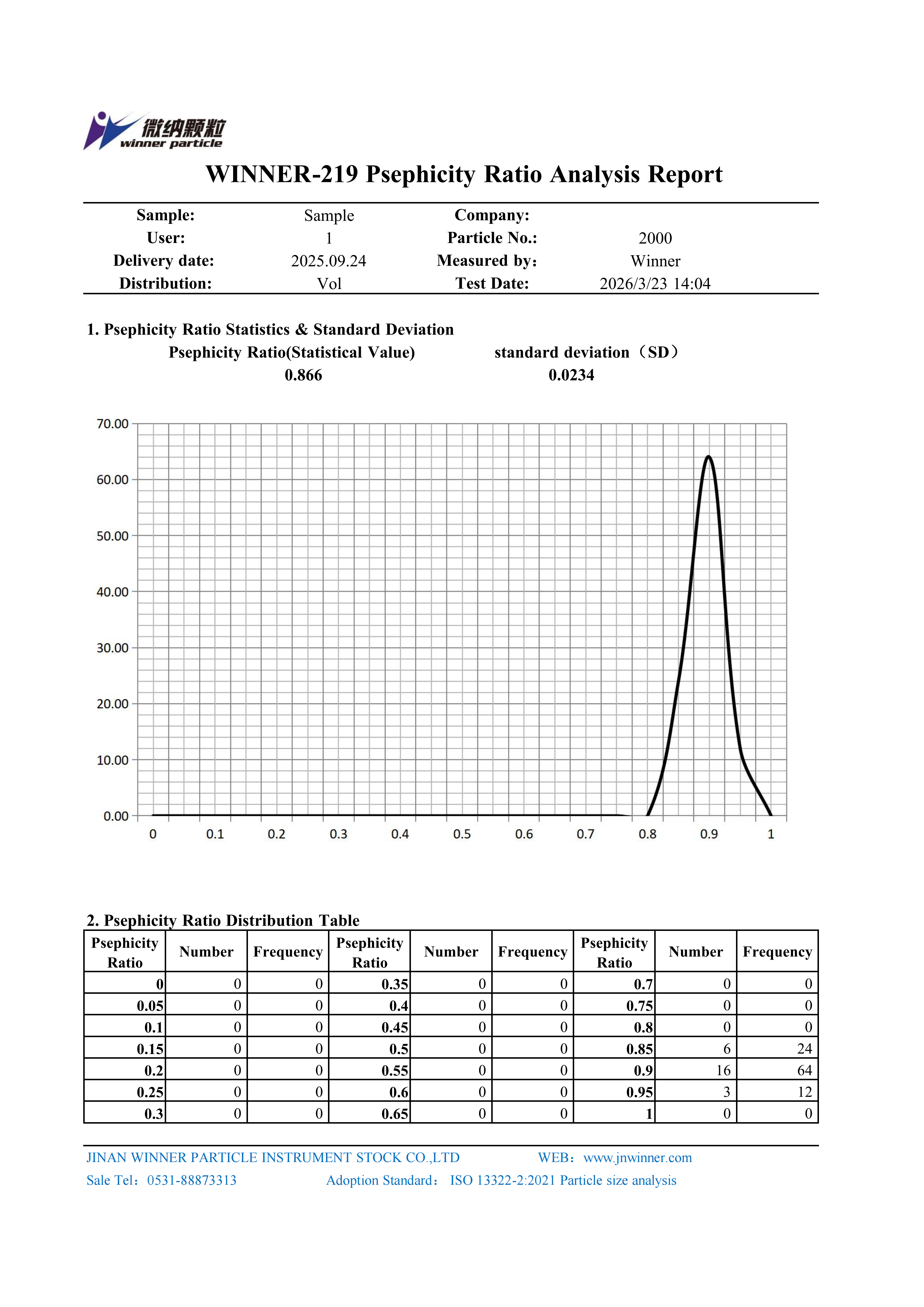

| Output Items | Particle size distribution report, roundness distribution report, aspect ratio distribution report. Can be exported to Excel, PDF, etc. |
Offer sphericity, circularity, roundness, aspect ratio, sphericity and other particle morphology prepositional parameters, and also addself-developed software for for particle circularity (roundness) computation module. The analysis of the particle circularity in line with US oil and gas standards: API_RP58. And geological plates suitablefor this abrasive, oil, gas and other industry standards.
Static mode: Get the best observation results, clearly see the status of the sample surface by Image system.
Dynamic mode: It is avallable for customized need. the particles keep fast going through the sample cuvette to collect large numbers of sample data, which sove the problem o image analyzer low representation. I add seff-cleaning accessories of sample window and the onine version of the software. Simple line detection could be achieved also.
High-precision three-axis control mechanism could automatically control platform movement and focus adjustment, I could more effectively to take photos, ensure select all the information of samples.
Customize route, the acquisition of memory multi-point auto-focus, memory-focus and other functions.
(1). Optical bench design is protected by patent No.- ZL 2014 2 0378380.8.
(2). Three dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.
(3). MIE scattering principle application patent No.- ZL 2013 2 0812021.4.
(4). Dry particle size analyzer full sealed sample cuvette application is protected by patent No.- ZL.2011 2 0267646.8.
(5). Dual laser beam orthogonal application is protected by patent No.-ZL 2007 2 0025702.0.
(6). Powder dispersion pump design application is protected by patent No.-ZL 2007 2 0018648.7.
(7). Wet circulation installation is protected by patent No.-ZL2010 2 0593526.2.
