Measurement Range: 10-10000μm (Customizable)
It is widely applicable to high-end application scenarios such as research institutes, university laboratories, and enterprise R&D centers and quality testing institutions.
Products Description

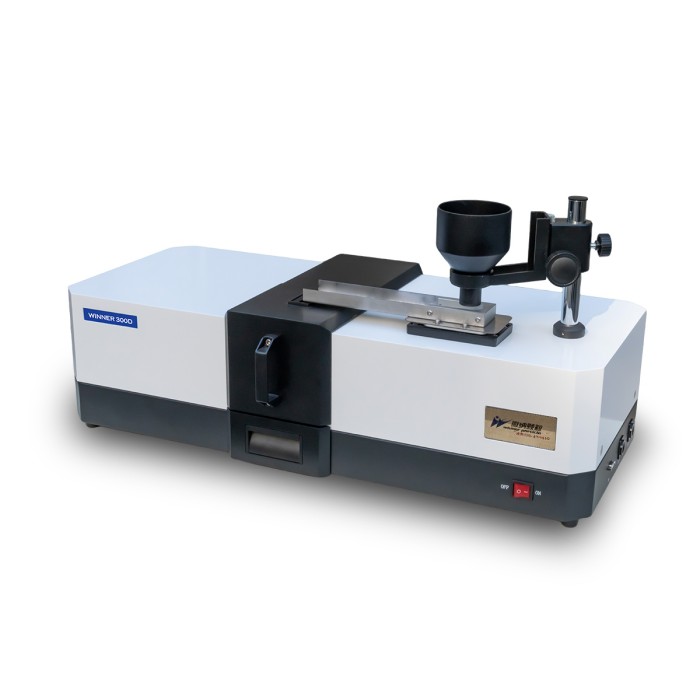

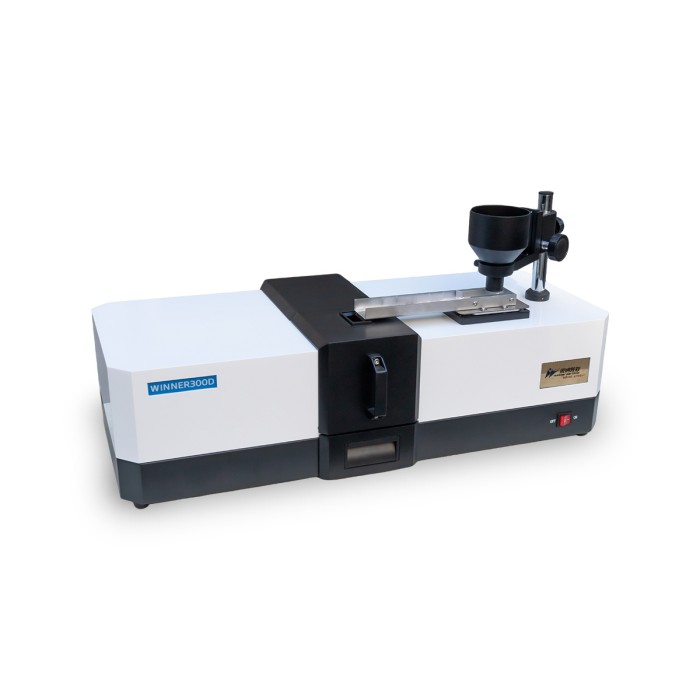

Winner300D is a newly launched exclusive dynamic dry particle image analyzer by Winner Particle, which test particle size distribution and morphology in 10-10000 μm (Implement International standard:ISO/DIS-13322-2 ). The image of sample particles can be captured in real time, stored and processed. The amount of sample is larger than statistic mode, the analysis result is more representative and reproducible.
Main Specifications
| Model Name | Winner300D |
| Execution Standards | ISO/DIS-13322-2 |
| Outer Dimension | 684mm*360mm*500mm |
| Net Weight | 24kg |
| Power Supply | 220V/50Hz 100w |
| Measurement Range | 10-10000μm (Customizable) |
| Accuracy Error | ≤1.0% (Deviation of D50 on national standard sample) |
| Repeatability Error | ≤1.0% (Deviation of D50 on national standard sample) |
| Feeding Method | The speed is adjusted and converted using electromagnetic pulse vibration at 150 levels. |
| Dispersion Method | Electromagnetic vibration and ultrasonic dispersion |
| Number of Particles Analyzed | ＞100000 pcs/min |
| Lens Group | High-definition telecentric lens (specification is optional) |
| Optical Lighting | Highlight parallel light source |
| High-speed Imaging | 5-megapixel high-speed industrial camera |
| Particle Size | Includes typical particle size values such as particle size distribution, D10, D50, and D90 (which can be customized), and maximum particle size. |
| Customizable | Range content, content greater than or less than a certain particle size, particle size distribution. |
| Particle Morphology | Aspect ratio and distribution, roundness and distribution, and particle images. |
| Particle Count | Calculate the number of particles. |
| Other Functions | Customizable headers display logos, tester information, and task management mechanisms. Standard index distribution gradation is available and can be customized. |
| Language | Chinese and English interface. Other language interfaces can be added according to user requirements. |

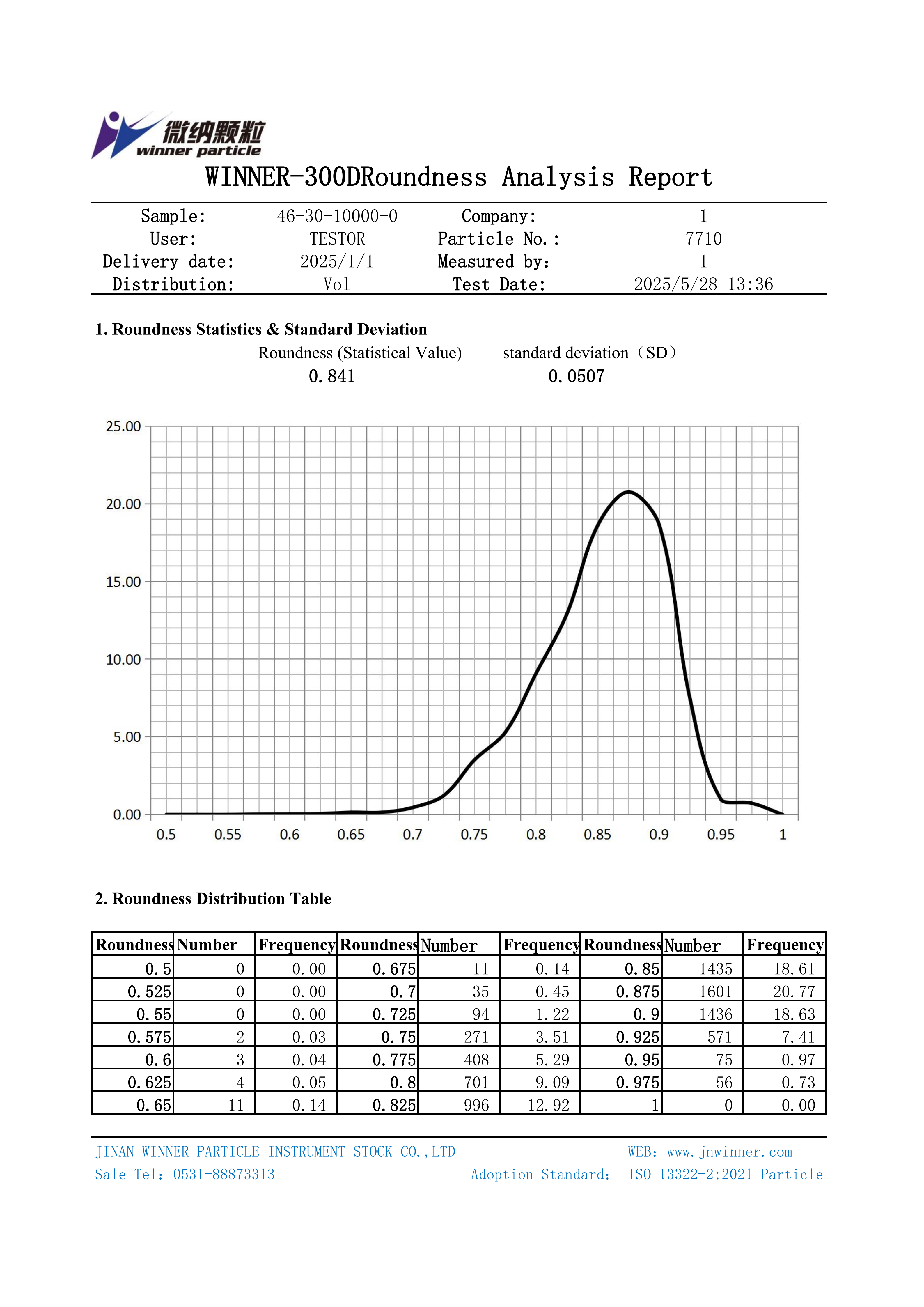

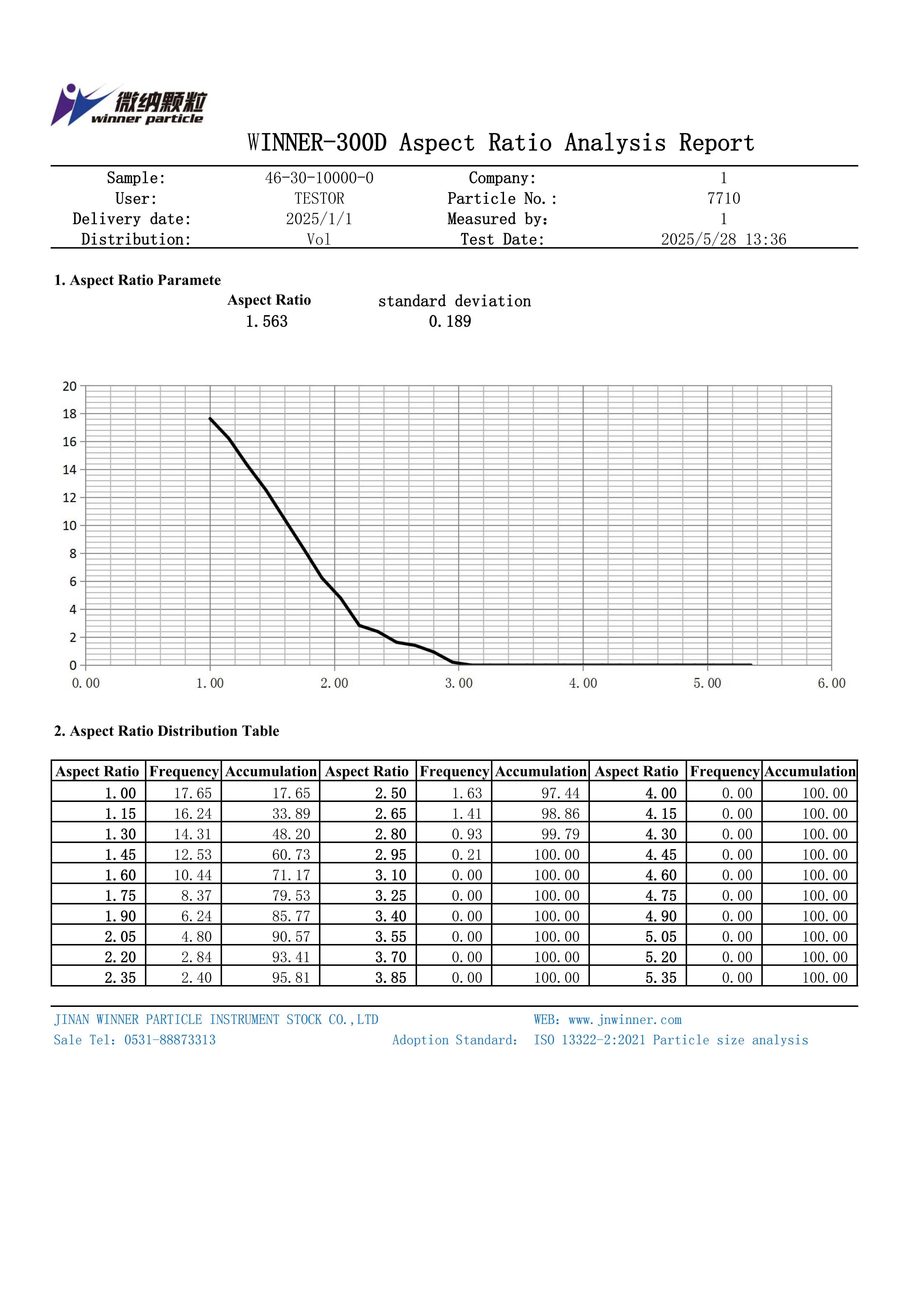

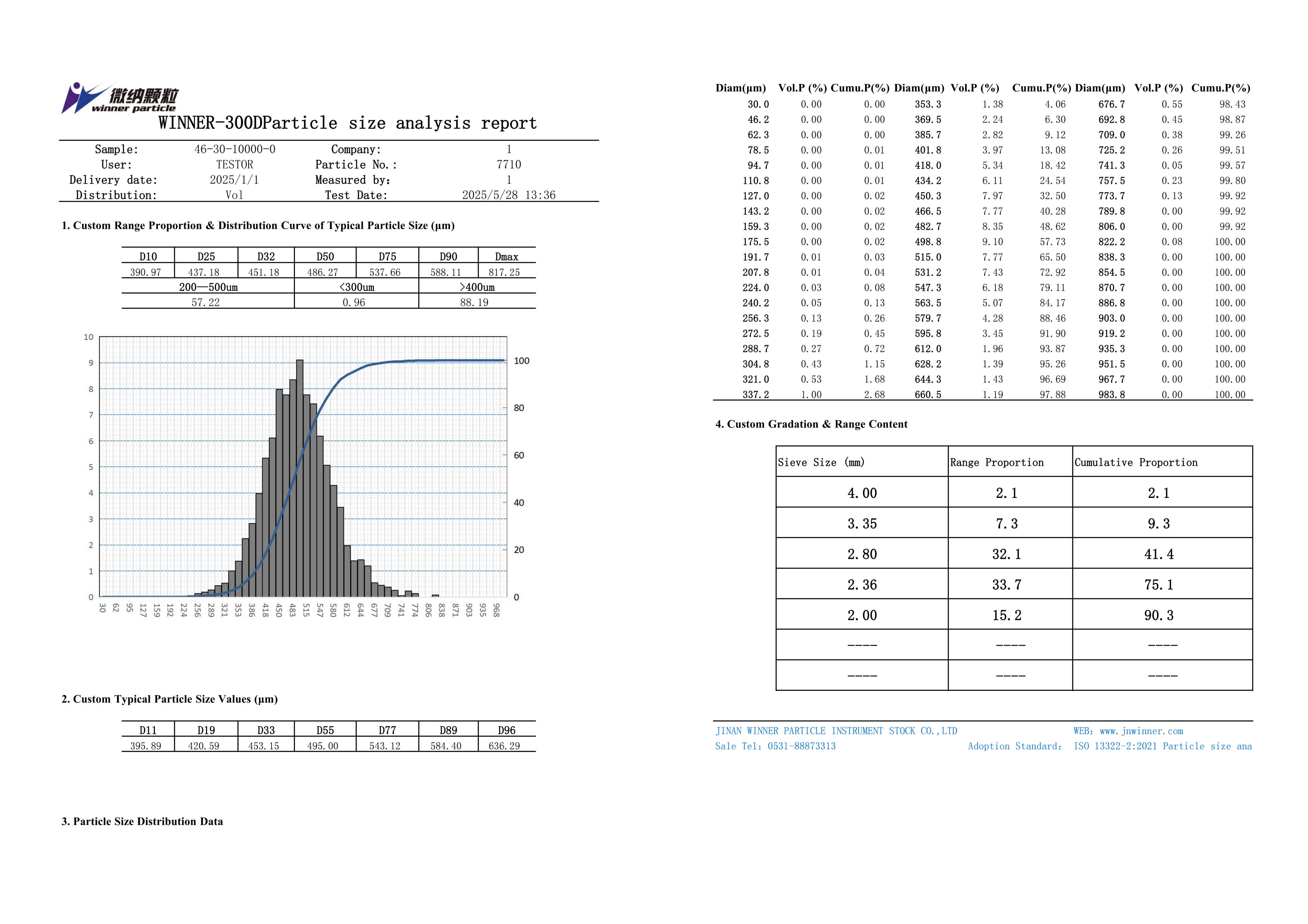

| Output Items | Particle size distribution report, roundness distribution report, aspect ratio distribution report. Can be exported to Excel, PDF, etc. |
Offer sphericity, circularity, roundness, aspect ratio, sphericity and other particle morphology prepositional parameters, and also addself-developed software for for particle circularity (roundness) computation module. The analysis of the particle circularity in line with US oil and gas standards: API_RP58. And geological plates suitablefor this abrasive, oil, gas and other industry standards.
Compared with the static sample preparation method of the static imager, Winner300D can measure the massive particle data, which is ofgreat significance for the representativeness of the particle data.
The combination of wide field, far-reaching central light path and constrained plane sampling window can effectively improve the clarity of particle sample photos.
On-line testing is available (by installing on-line sampling device, on-line testing can be realized, and the state changes of samples in different sampling periods can be obtained).
(1). Optical bench design is protected by patent No.- ZL 2014 2 0378380.8.
(2). Three dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.
(3). MIE scattering principle application patent No.- ZL 2013 2 0812021.4.
(4). Dry particle size analyzer full sealed sample cuvette application is protected by patent No.- ZL.2011 2 0267646.8.
(5). Dual laser beam orthogonal application is protected by patent No.-ZL 2007 2 0025702.0.
(6). Powder dispersion pump design application is protected by patent No.-ZL 2007 2 0018648.7.
(7). Wet circulation installation is protected by patent No.-ZL2010 2 0593526.2.
