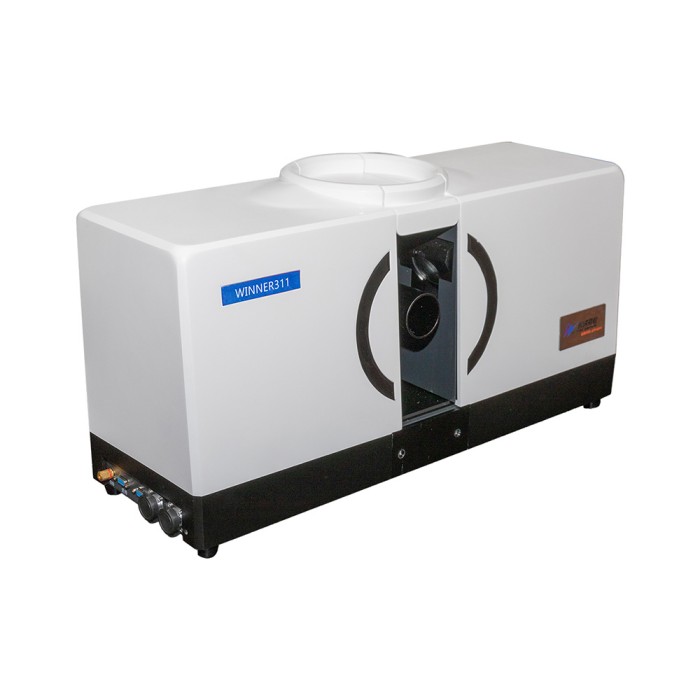

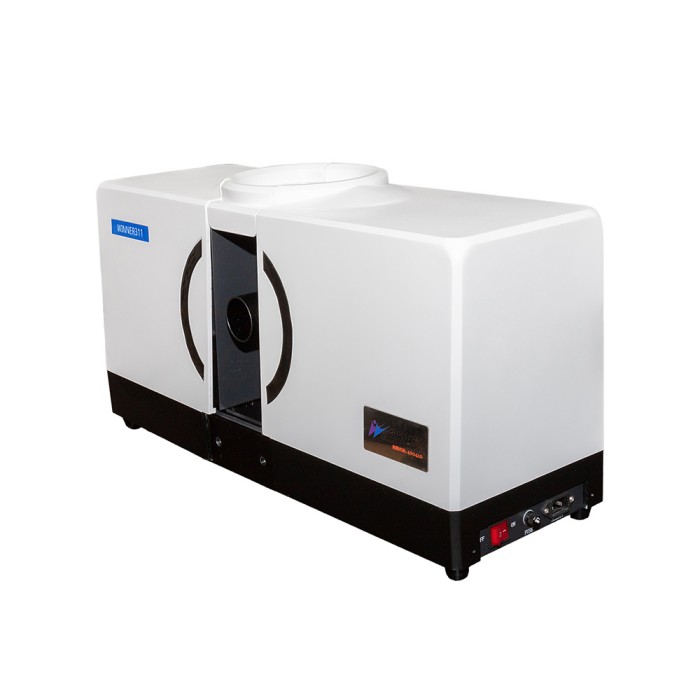

Winner311 Spray Laser Particle Size Analyzer

Measurement Range: 0.1-100μm

It is widely applicable to high-end application scenarios such as research institutes, university laboratories, and enterprise R&D centers and quality testing institutions.

Inquire Now Next Product

Products Description

Winner311PRO is a new generation desktop spray particle size analyzer designed and developed mainly for droplet particle size testing of small sprayequipment. It incorporates more unique Winner technologies, innovative design of external automatic mobile platform, opticalpath. The design is more optimized, the detection channels are wider distributed, the algorithm is more stable, and the application is more intelligent.

It integrates a number of patent technologies including lens protection devices. It can measure droplets particles in the air without touch. It's mainly applied to medical atomizer, atomization medicine, various aerosol, spray and other small spray equipment, especially suitable for the national pharmacopoeia for inhalation aerosol,orally inhaled and nasal drug products, spray, powder mist and other particle size distribution testing requirements.

Main Specifications

General

Measurement Size

Optics

Software Functions

Model Name	Winner311
Principle	Fraunhofer diffraction principle
Instrument Structure	All-in-one instrument
Sampling Mode	Open Style
Outer Dimension	L720W620H370mm
Net Weight	30kg

Measurement Range	0.1-100μm
Number of Channels	80pcs
Accuracy Error	≤1.0% (CRM D50)
Repeatability Error	≤1.0% (CRM D50)
Testing Area Length	60mm (Adjustable)

Light Source	Semiconductor laser λ=650nm, P>2mW
Optical Bench Alignment System	Automatic alignment

Analysis Pattern	Free distribution, R-R distribution, log-normal distribution, and statistical models by category.
Statistical Methods	Volume distribution and quantity distribution are used to meet the different statistical requirements of different industries for particle size distribution.
Statistical Comparison	It allows for statistical comparison and analysis of multiple test results. It clearly demonstrates the differences between different batches of samples, samples before and after processing, and test results from different time periods. This has significant practical implications for the quality control of industrial raw materials.
Custom Analysis	User-defined analysis parameters. Calculate percentages based on particle size, particle size based on percentages, or percentages based on particle size ranges to meet the characterization methods of particle size testing in different industries.
Test Report	Test reports can be exported in various formats such as Word, Excel, image (.bmp), text (.txt), and PDF, meeting different requirements for viewing test reports, data reprocessing, and article citation in any situation.
Language	Chinese and English interface. Other language interfaces can be added according to user requirements.
Function	GMP, Angle testing (Optional)

+ Advantages

(1) Using the patented software analysis technology of unconstrained free fitting, it truly reflects the particle size distribution

(2) Exquisite structural design

The test area adopts a tubular open structure, which is small in size, flexible in placement, and convenient for testing.

(3) New structure, new optical path, higher testing accuracy

The use of single-beam parallel light path and dual-lens dual-array detector technology increases the number of detectors and makes the optical path layout more reasonable. Ensure high-density collection of scattered light at different angles, extend the lower limit of measurement, improve the resolution of the instrument, and ensure the droplet size test is accurate within the full range.

(4) Unique air flow protection device

Airflow protection system can effectively protect the lens to avoid droplet pollution of the lens in the testing process. Prolong the service life of the instrument.

(5) Spraying triggers particle size test, instant test, instant data

(6) There are three software distribution modes, free distribution, R-R distribution, and Log distribution. It can meet the particlesize testing of various industries

(7) External automatic mobile platform

The test position can be set by SOP, and samples at different distances can be tested respectively. The position and distance of the spray are fixed. One-click arrival and one-click return make the test more intelligent and convenient. It can effectively reduce the error of manual testing and effectively. Reduces the error inrepeatability of test results.

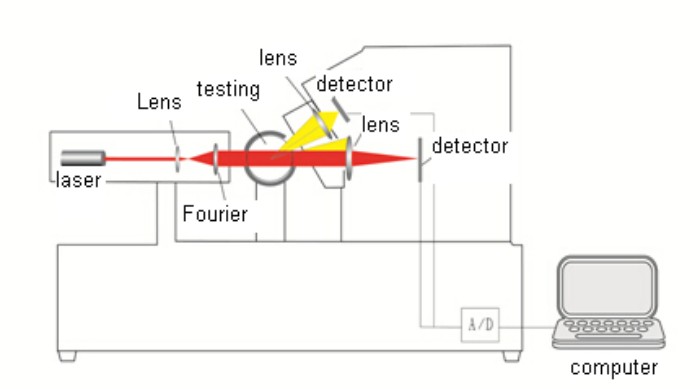

+ Test Principle

Winner311PRO Spray Laser Particle Size Analyzer

+ Application

Medical Nebulizer, Nasal Spray, Respiratory Nebulizer, Ultrasonic Sprayer, Facial Steamer, Aromatherapy, Facial Steamer, Anesthesia Nebulizer, Oxygen Concentrator.

+ Patent Technology

(1). Optical bench design is protected by patent No.- ZL 2014 2 0378380.8.

(2). Three dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.

(3). MIE scattering principle application patent No.- ZL 2013 2 0812021.4.

(4). Dry particle size analyzer full sealed sample cuvette application is protected by patent No.- ZL.2011 2 0267646.8.

(5). Dual laser beam orthogonal application is protected by patent No.-ZL 2007 2 0025702.0.

(6). Powder dispersion pump design application is protected by patent No.-ZL 2007 2 0018648.7.

(7). Wet circulation installation is protected by patent No.-ZL2010 2 0593526.2.

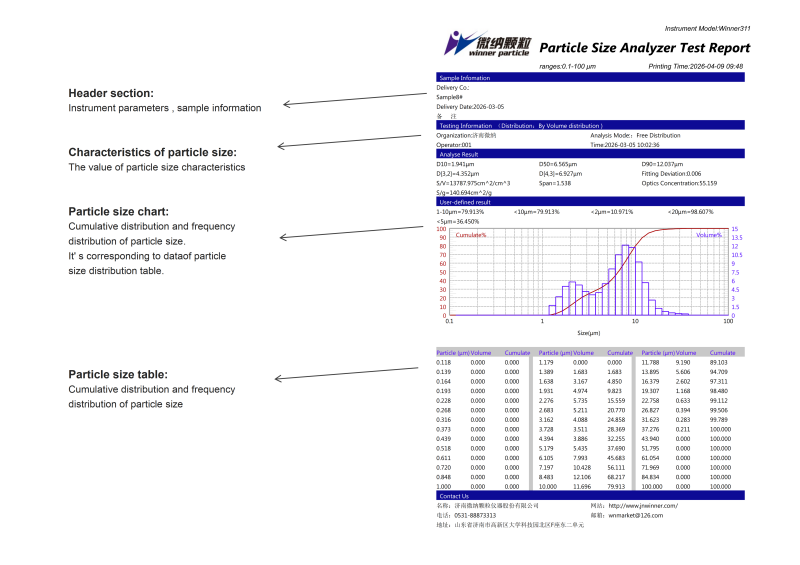

+Test Report
