Winner311PRO Intelligent Spray Laser Particle Size Analyzer

Measurement Range: 0.1-100μm

It is widely applicable to high-end application scenarios such as research institutes, university laboratories, and enterprise R&D centers and quality testing institutions.

Inquire Now Next Product

Products Description

Winner311PRO Intelligent spray Laser Particle Size Analyzer

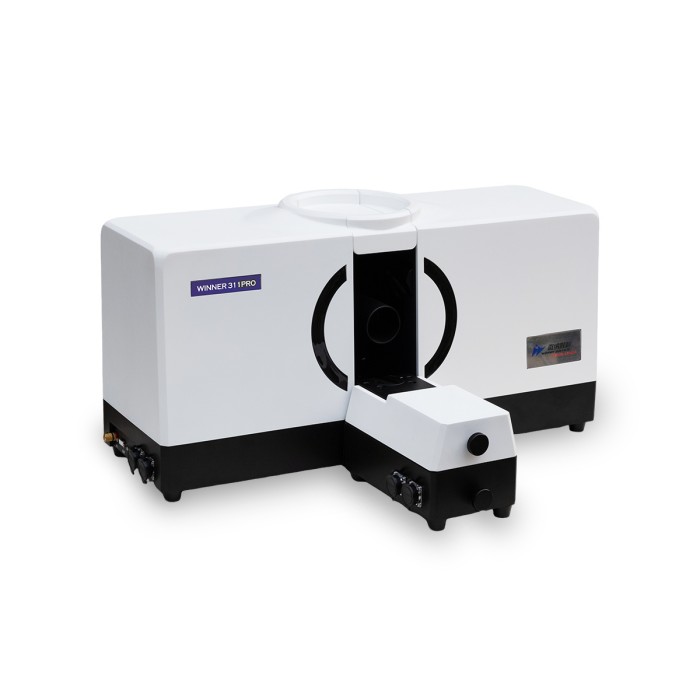

Winner311PRO Spray Laser Particle Size Analyzer

The Winner311PRO is a new generation of benchtop spray laser particle size analyzer developed by Jinan Winner specifically for small spray devices. Based on mature technology, it can accurately detect droplet size distribution in pharmaceutical, chemical, and materials industries.

Winner311PRO Intelligent Model: Equipped with an intelligent control platform, it enables one-click automated operation and data management. Built-in GMP-compliant audit trail functionality ensures process traceability and data compliance. Suitable for the pharmaceutical industry and high-standard quality control laboratories.

Main Specifications

General

Measurement Size

Optics

Software Functions

Model Name	Winner311PRO
Principle	Fraunhofer diffraction principle
Instrument Structure	All-in-one instrument
Sampling Mode	Open style
Intelligent Testing Platform	Linkage testing. Test locations can be set using Standard Operating Procedures (SOPs), remembered, and reset with a single click.
Outer Dimension	L720W620H370mm
Net Weight	30kg

Measurement Range	0.1-100μm
Number of Channels	80pcs
Accuracy Error	≤1.0% (CRM D50)
Repeatability Error	≤1.0% (CRM D50)
Testing Area Length	60mm (Adjustable)

Light Source	Semiconductor laser λ=650nm, P>2mW
Optical Bench Alignment System	Automatic alignment

Analysis Pattern	Free distribution, R-R distribution, log-normal distribution, and statistical models by category.
Statistical Methods	Volume distribution and quantity distribution are used to meet the different statistical requirements of different industries for particle size distribution.
Statistical Comparison	It allows for statistical comparison and analysis of multiple test results. It clearly demonstrates the differences between different batches of samples, samples before and after processing, and test results from different time periods. This has significant practical implications for the quality control of industrial raw materials.
Custom Analysis	User-defined analysis parameters. Calculate percentages based on particle size, particle size based on percentages, or percentages based on particle size ranges to meet the characterization methods of particle size testing in different industries.
Test Report	Test reports can be exported in various formats such as Word, Excel, image (.bmp), text (.txt), and PDF, meeting different requirements for viewing test reports, data reprocessing, and article citation in any situation.
Language	Chinese and English interface. Other language interfaces can be added according to user requirements.
Smart Mode	It features an intelligent operation mode that can automatically control the testing process. This not only reduces the workload of testers but also improves repeatability.
Other Function	GMP (Optional)

+ Advantages

(1) Using the patented software analysis technology of unconstrained free fitting, it truly reflects the particle size distribution

(2) Exquisite structural design

The test area adopts a tubular open structure, which is small in size, flexible in placement, and convenient for testing.

(3) New structure, new optical path, higher testing accuracy

The use of single-beam parallel light path and dual-lens dual-array detector technology increases the number of detectors and makes the optical path layout more reasonable. Ensure high-density collection of scattered light at different angles, extend the lower limit of measurement, improve the resolution of the instrument, and ensure the droplet size test is accurate within the full range.

(4) Unique air flow protection device

Airflow protection system can effectively protect the lens to avoid droplet pollution of the lens in the testing process. Prolong the service life of the instrument.

(5) Spraying triggers particle size test, instant test, instant data

(6) There are three software distribution modes, free distribution, R-R distribution, and Log distribution. It can meet the particlesize testing of various industries

(7) External automatic mobile platform

The test position can be set by SOP, and samples at different distances can be tested respectively. The position and distance of the spray are fixed. One-click arrival and one-click return make the test more intelligent and convenient. It can effectively reduce the error of manual testing and effectively. Reduces the error inrepeatability of test results.

+ Test Principle

+ Application

Medical nebulizer, nasal spray, respiratory nebulizer, ultrasonic sprayer, facial steamer, aromatherapy, facial steamer, anesthesia nebulizer, oxygen concentrator.

+ Patent Technology

(1). Optical bench design is protected by patent No.- ZL 2014 2 0378380.8.

(2). Three dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.

(3). MIE scattering principle application patent No.- ZL 2013 2 0812021.4.

(4). Dry particle size analyzer full sealed sample cuvette application is protected by patent No.- ZL.2011 2 0267646.8.

(5). Dual laser beam orthogonal application is protected by patent No.-ZL 2007 2 0025702.0.

(6). Powder dispersion pump design application is protected by patent No.-ZL 2007 2 0018648.7.

(7). Wet circulation installation is protected by patent No.-ZL2010 2 0593526.2.

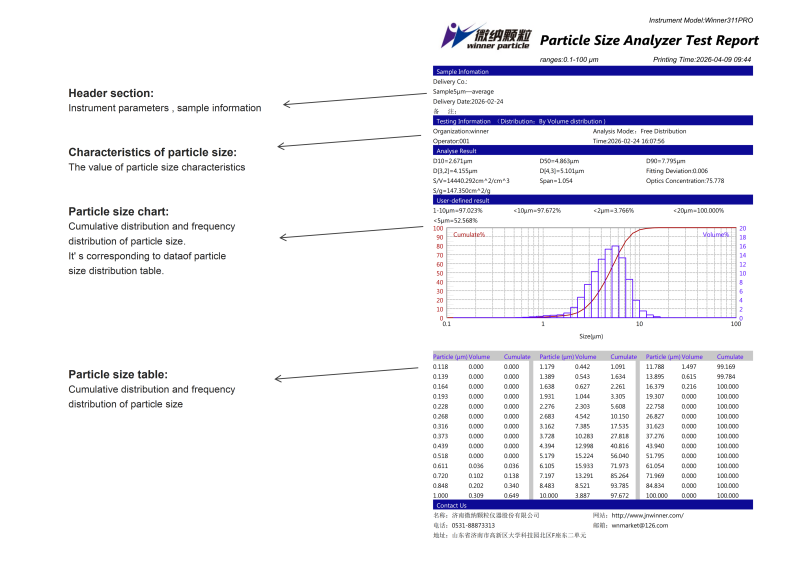

+Test Report
