Measurement Range: 1-2000μm
It is widely applicable to high-end application scenarios such as research institutes, university laboratories, and enterprise R&D centers and quality testing institutions.
Products Description

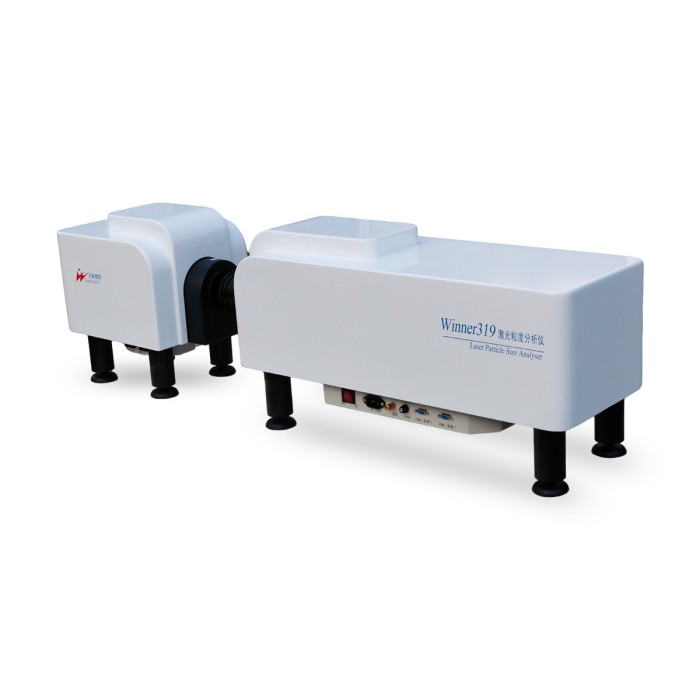

Winner319C is a specially designed and developed bench-top spray laser particle size analyzer for droplet size test. This instrument adopts Fraunhofer diffraction principle and parallel light path design with high-performance and high-power laser, which can meet the requirements of droplet test. Its lifetime is more than 25000hours.
Main Specifications
| Model Name | Winner319C |
| Executive Standard | ISO13320-1：1999，GB/T19077.1-2008，Q/0100JWN001-2013 |
| Principle | Fraunhofer diffraction principle |
| Instrument Structure | Split-Type |
| Data Acquisition Rate | ≧2KHZ |
| Sampling Mode | Open Style |
| Air purging system | Equipped with airflow protection device, which can effectively protect the lens and avoid droplet pollution to lens in testing process. |
| Working temperature | 10-40°C |
| Environment humidity | ≤75% |
| Outer Dimension | Transmit port: L369*W295*H360mm Receive port: L858*W295*H360mm |
| Net weight | 68kg |
| Power Supply | 220V, 50/60HZ |
| >Light Source | LD Pump Laser；λ=532nm, p>40mw, life time>25000 hours |
| Optical Bench Alignment System | Automatic alignment |
| Lens Protection | Double gas episodic |
| Laser Safety | Class 3B |
| Measurement Range | 1-2000μm |
| Number of Channels | 58pcs |
| Accuracy Error | ＜1.0% (CRM D50) |
| Repeatability Error | ＜1.0% (CRM D50) |
| Reproducibility between instruments | ＜1.0% (CRM D50) |
| Testing Area Length | 0.1-10m/adjustable/td> |
| Analysis Pattern | Free distribution, R-R distribution, log-normal distribution, and statistical models by category. |
| Statistical Comparison | Statistical comparison of multiple test results. Users can compare and analyze test data from different batches of samples, before and after sample processing, or at different processing times, effectively guiding product quality and cost control. |
| Data Processing | The system performs intelligent statistical analysis and processing of test data, and outputs the most representative test results. |
| Custom Analysis | The system can customize the output of any characteristic particle size between D1 and D100, the cumulative percentage of particles larger or smaller than a certain particle size, and the cumulative percentage of a certain particle size range, so as to meet the different requirements of different industries for particle size testing and characterization methods. |

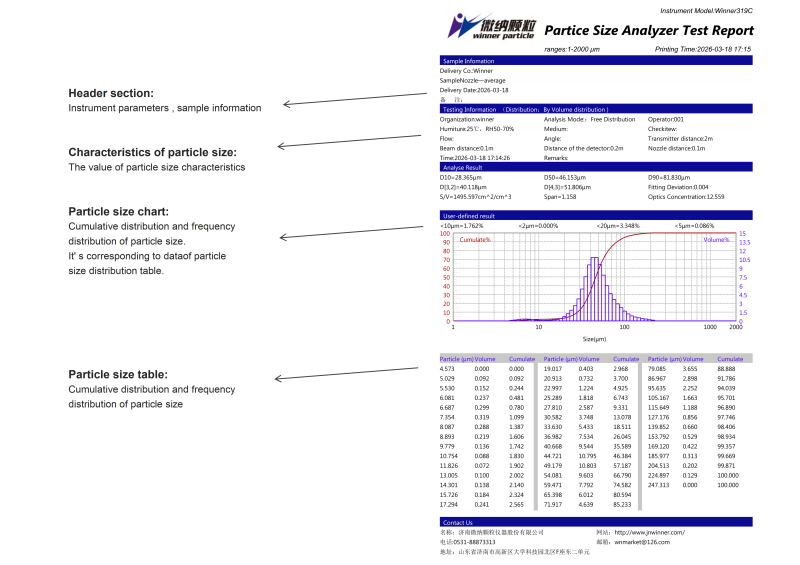

| Output | Typical particle size values, interval particle size distribution (i.e., differential distribution) data and graphs (histograms or curves), cumulative particle size distribution (i.e., integral distribution) data and curves, etc. |
| Test Report | Test reports can be exported in various formats such as Word, Excel, image (.bmp), text (.txt), and PDF, meeting different requirements for viewing test reports, data reprocessing, and article citation in any situation. |
| One-click operation | Wet method: Activate the automatic operation mode and complete all operations such as water intake, air bubble removal, dispersion, testing, cleaning, and data processing with a single button. Dry method: Activate the automatic operation mode to complete all operations such as dust collection, air supply, feeding, testing, and data processing with a single click. |
| Language | Chinese and English interface. Other language interfaces can be added according to user requirements. |
| GMP | GMP (Optional) |

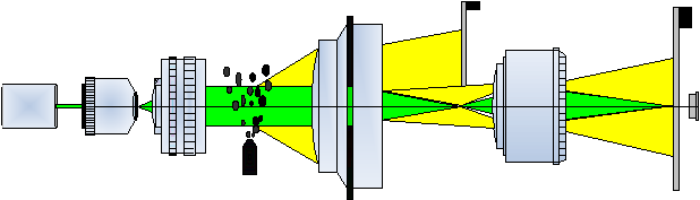

It adopts representative Parallel optical testing technology and Spectrum amplification technique and realizes the wide range expansion in limited space. Besides, it adds several Auxiliary integration photoelectric detector, which can effectively collect scattering light from every angle in the testing range, realizing the testing accuracy and reliability in the whole range.
It has airflow protection device, which can effectively protect the lens and avoid droplet pollution to lens in testing process.
Split-Type structure and adjustable test area can meet the needs of the spray test in any conditions and It has many specialties, such as non-contact measurements, non-interfering etc.
Remove adjusted difficulty caused by the light path movement, the light path alignment system can be corrected by a key.
Free choice standard model, RR distribution and Lognormal distribution. It can convert the volume distribution and individual number distribution freely.
(1). Optical bench design is protected by patent No.- ZL 2014 2 0378380.8.
(2). Three dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.
(3). MIE scattering principle application patent No.- ZL 2013 2 0812021.4.
(4). Dry particle size analyzer full sealed sample cuvette application is protected by patent No.- ZL.2011 2 0267646.8.
(5). Dual laser beam orthogonal application is protected by patent No.-ZL 2007 2 0025702.0.
(6). Powder dispersion pump design application is protected by patent No.-ZL 2007 2 0018648.7.
(7). Wet circulation installation is protected by patent No.-ZL2010 2 0593526.2.
