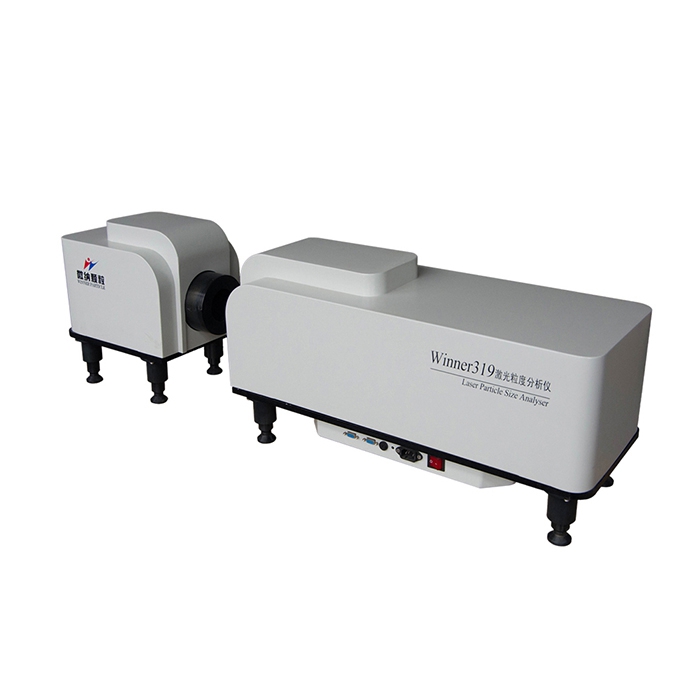

Winner319 sprayparticle size analyzer is a specially designed and developed bench-top spray laser particle size analyzer for droplet size test. This instrument adopts Fraunhofer diffraction principle and parallel light path design with high-performance and high-power laser, lifetime>25000hours, which can meet the requirements of droplet test. And the test range can be adjusted according to the customers’ requirement.
Winner319 is a specially designed and developed bench-top spray laser particle size analyzer for droplet size test. This instrument adopts Fraunhofer diffraction principle and parallel light path design with high-performance and high-power laser, lifetime>25000hours, which can meet the requirements of droplet test. And the test range can be adjusted according to the customers' requirement.
Winner319 can be applied to Fire control,forest,pesticide spray test, Medicine nebulizer droplet test, aircraft engine,spray prilling, Nozzle research,any aerosol spraying particle size test etc., Therefore especially suits the laboratories of enterprises, colleges and universities and research institutes to use.
Schematic Diagram of the Instrument
Production Features and Advantages
1, Exclusive patent technology
It adopts representative Parallel optical testing technology and Spectrum amplification technique and realizes the wide range expansion in limited space. Besides, it adds several Auxiliary integration photoelectric detector, which can effectively collect scattering light from every angle in the testing range, realizing the testing accuracy and reliability in the whole range.
2, Unique Airflow Protection Device
It has airflow protection device, which can effectively protect the lens and avoid droplet pollution to lens in testing process.
3, Split-Type Structure Design
Split-Type structure and adjustable test area can meet the needs of the spray test in any conditions and It has many specialties, such as non-contact measurements, non-interfering etc.
4,Stable automatic optical path alignment system
Remove adjusted difficulty caused by the light path movement, the light path alignment system can be corrected by a key
5,Multiple size distribution model
Free choice standard model, RR distribution and Lognormal distribution. Can convert the volume distribution and individual number distribution freely.
|Principle||Fraunhofer diffraction principle|
|Number of Channels||50 pcs||51 pcs||58 pcs|
|Accuracy error||<1% (Reference to CRM D50)|
|Repeatability error||<1% (Reference to CRM D50)|
|Reproducibility between instruments||<1% (Reference to CRM D50)|
|Data Acquisition Rate||≧2KHZ|
|Laser||LD Pump Laser；λ=532nm, p>40mw, life time>25000 hour|
|Laser safety||Class 3B|
|Air purging system||Equipped with airflow protection device, which can effectively protect the lens and avoid droplet pollution to lens in testing process.|
|Sampling Mode||Open Style|
|Optical alignment system||Automatic|
|Operation platform||Common model, Windows 7/8/10 (64 bits) need install Office 2003|
|Output parameters||Particle volume distribution curve, D10-D100 any parameters|
|Testing Area Length||0.1-10m/adjustable|
|Lens Protection||Double gas episodic|
|Outer Dimension||Transmit port: L369*W295*H360mm Receive port:L858*W295*H360mm|
|Power Supply||220V, 50HZ|
Instrument Test operation interface
After the background test, click on Energy spectrum test" in "test view". And the system will display "test view". Observe the Spectral curve and concentration, After the test result becomes stable, click the "save the results". The System will automatically save the test result at the preset time intervals
Energy Spectrum Test View
Ⅱ Test Report and Its Description
Ⅱ Test Report and Description
Vx : Particle diameter, < X particle volume summation percent of total particle's volume
Nx : Particle diameter, < X particle number summation percent of total numbers of particles
VAD: The volume weighted average particle size.
SMD: Surface area weighted average particle size.
NAD: The number of weighted average particle size.
R.S: Sample dispersion index, characterization of particle size distribution width. Smaller value, higher concentrated distribution.
N/V: N50/V50, Characterization of particle size distribution width. Values closer to 1, the distribution is more centralized.
Size / quantity distribution: Different statistical analysis
● Pressurized aerosol protection device for spray particle size analyzer is protected by patent No. ZL 2011 2 0267651.9
● Spray particle size analyzer with auxiliary probe construction is protected by patent No. ZL 2011 2 0267648.7
● Split spray laser particle size analyzer is protected by patent No. ZL 2011 2 0267654.2
● Optical bench design is protected by patent No.- ZL 2014 2 0378380.8,
● 3 dimensional-optical bench alignment system is protected by patent No.- ZL 2013 2 0835882.4.
● Mie scattering principle application patent No.- ZL 2013 2 0812021.4.
