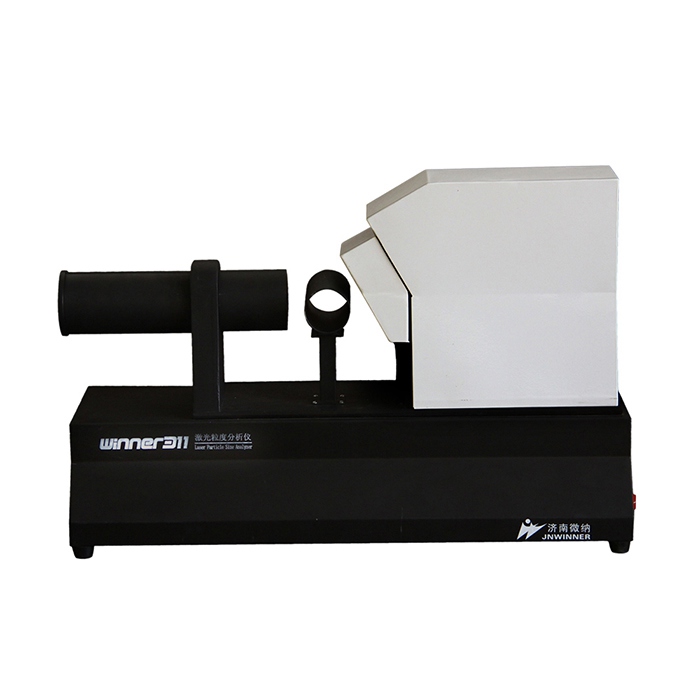

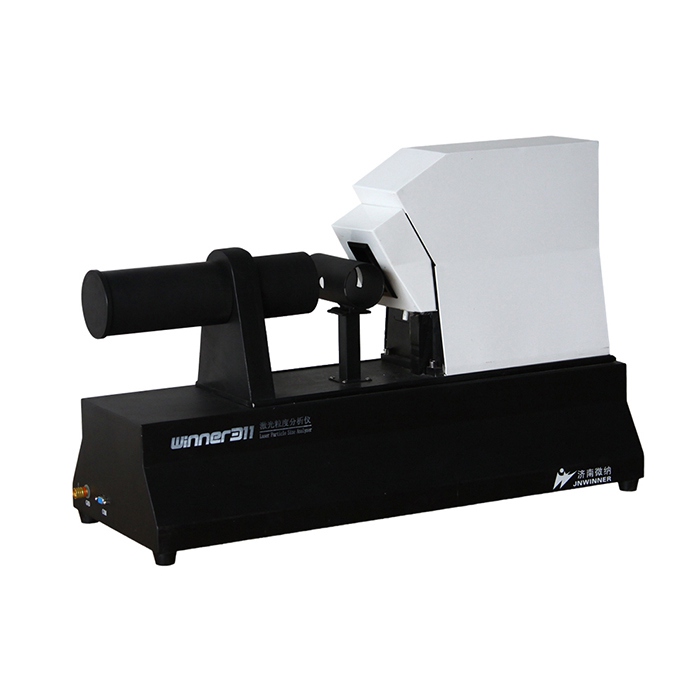

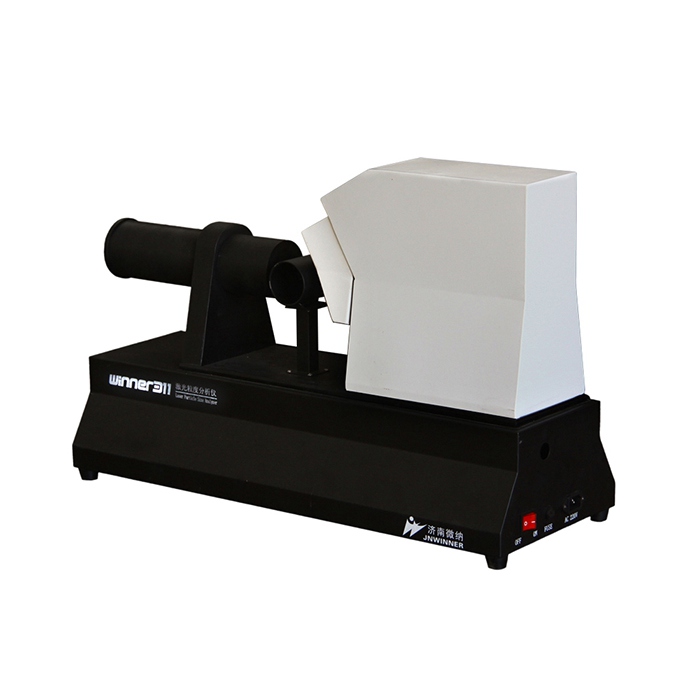

Winner311XP Spray Laser Particle Size Analyzer

Winner311XP desktop spray laser particle size analyzer is designed and developed specially for the droplet particle size distribution test of small spray equipment. It integrates a number of patent technologies including lens protection devices  and unconstrained free fitting analysis software, It can measure droplets particles in the air without touch, It's mainly applied to medical atomizer particle size distribution test.

Products Description

Brief Introduction


Winner311XP desktop spray laser particle size analyzer is designed and developed specially for the droplet particle size distribution test of small spray equipment. It integrates a number of patent technologies including lens protection devices, It can measure droplets particles in the air without touch, It's mainly applied to medical atomizer, atomization medicine, various aerosol, spray and other small spray equipment, especially suitable for the national pharmacopoeia for inhalation aerosol,orally inhaled and nasal drug products, spray, powder mist and other particle size distribution testing requirements.


Main Specification


ModelWinner 311XP
Execute StandardISO13320:2009, GB/T19077-2016,Q/0100JWN001-2013
Size Range0.1-100µm
Detector channels40 pcs
Accuracy error<1% (CRM D50)
Repeatability error<1% (CRM D50)
Light sourceSemiconductor λ= 650nm p>1mw
Feedingopen
Measurement area length6cm
DimensionL66*W26*H45cm
N.W.19KG


Main Features


1) Unique optical path patented technology

Based on laser scattering principle, adopt a single beam of parallel light path and the dual-lens, dual-array detector technology to ensure high collection of scattering light at different angles, extends the measurement limit, improve the resolution of the instrument.


2) Unique air flow protection device

Airflow protection system can effectively protect the lens to avoid droplet pollution of the lens in the testing process,Prolonging the service life of particle size analyzer.


Principle

Winner311XP Spray Laser Particle Size Analyzer
