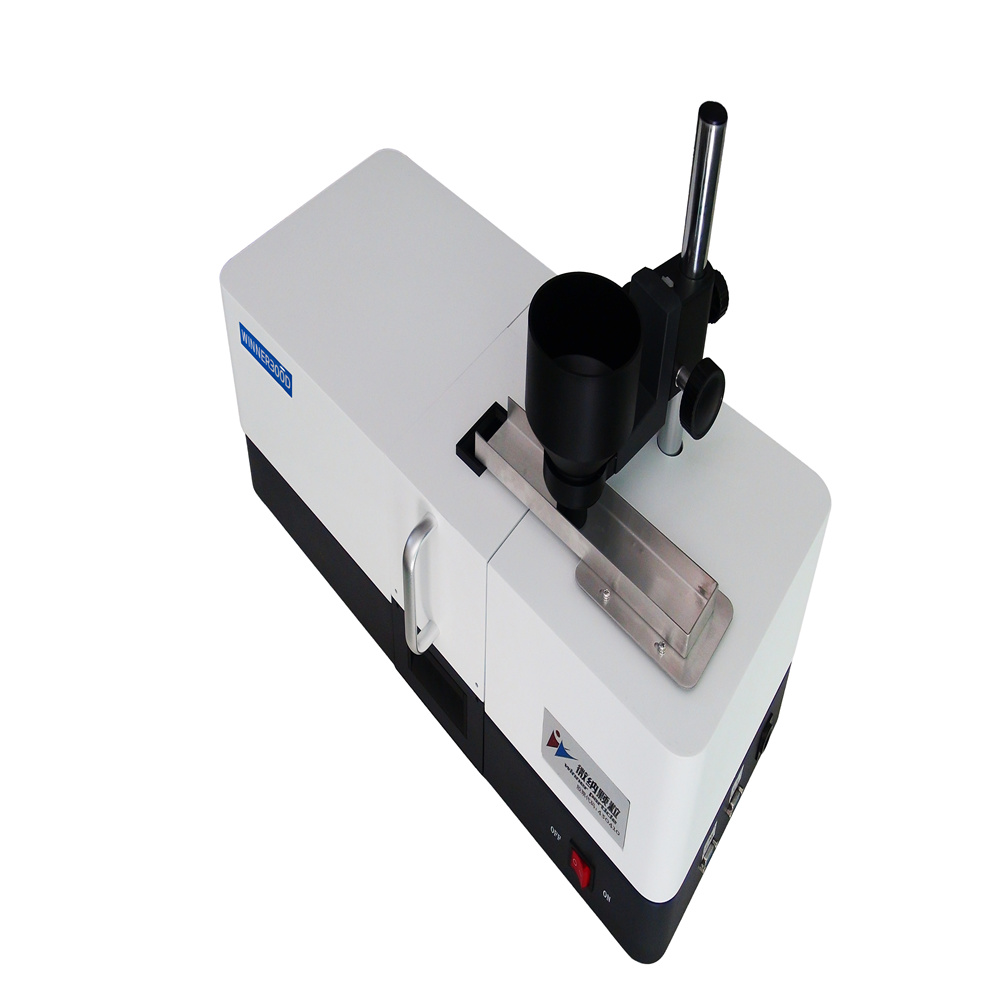

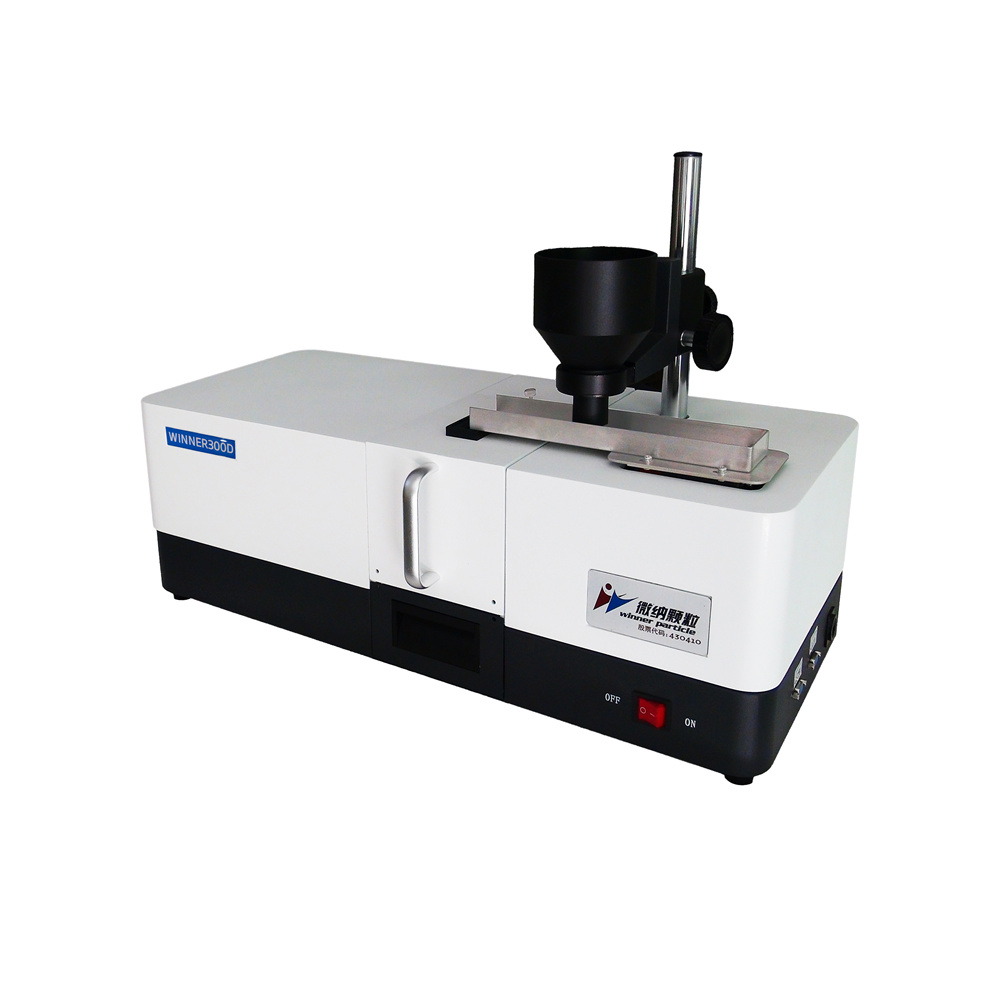

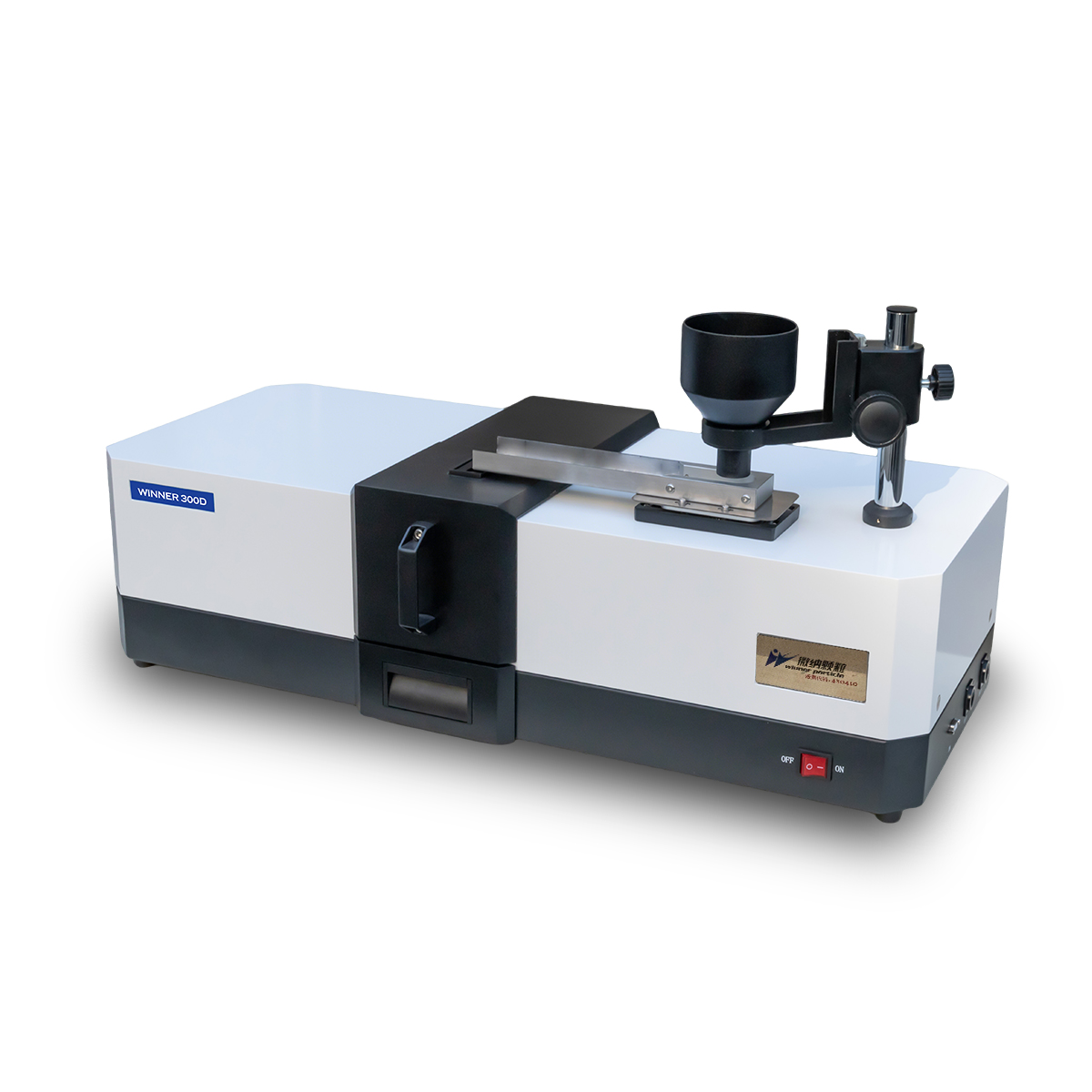

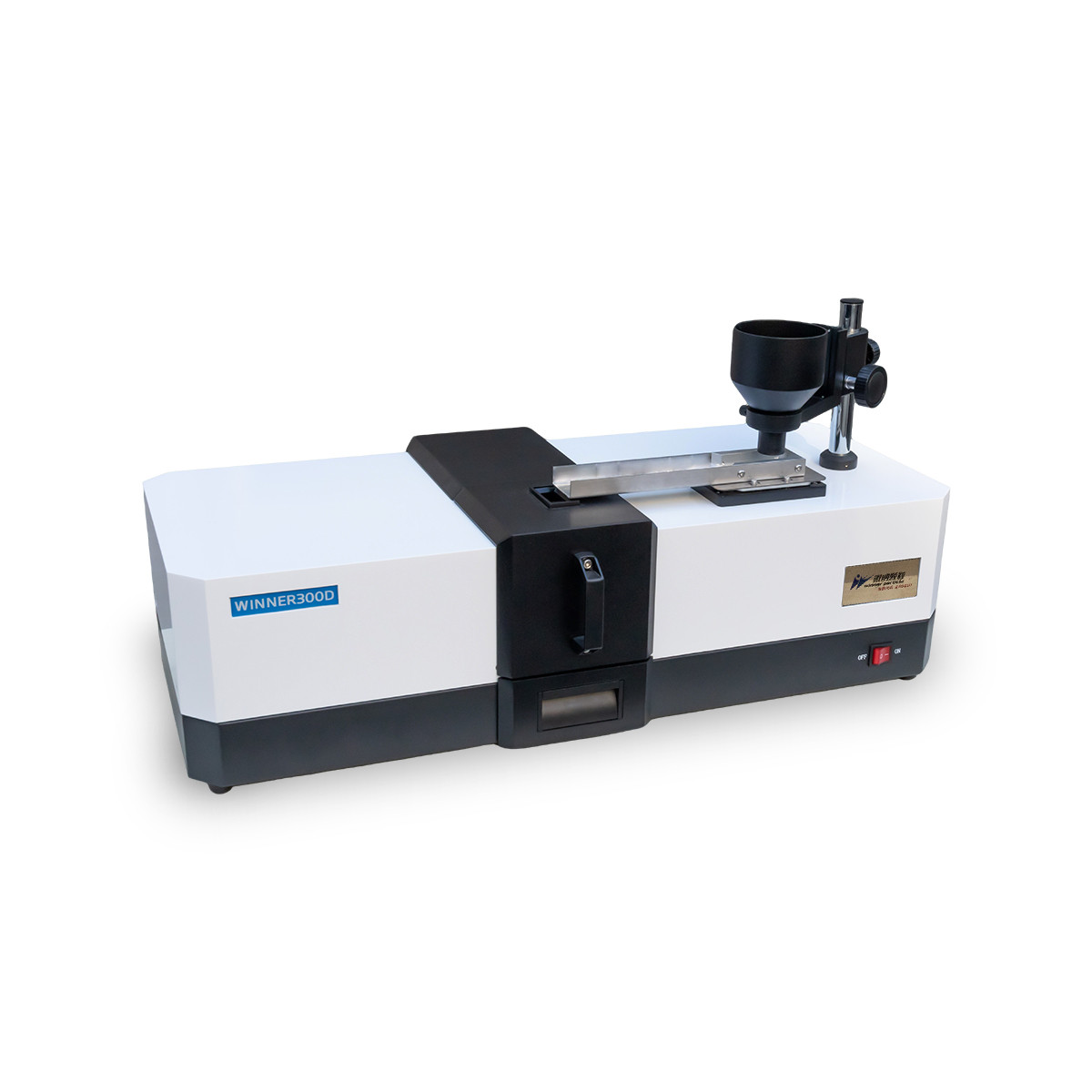

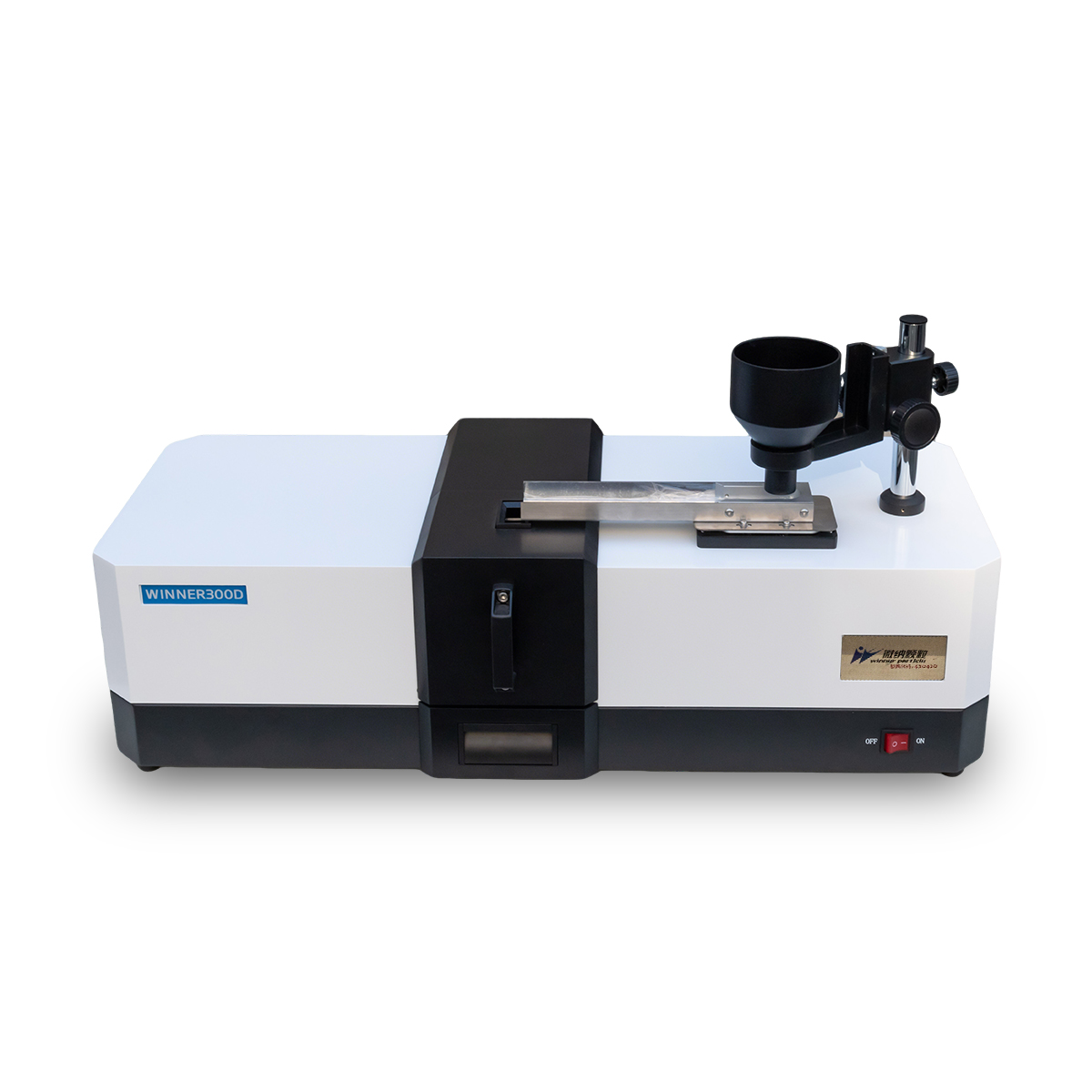

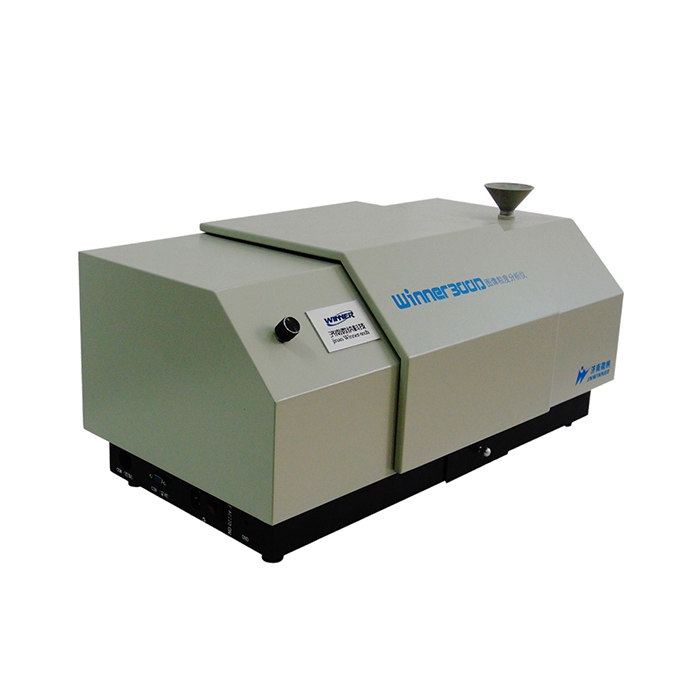

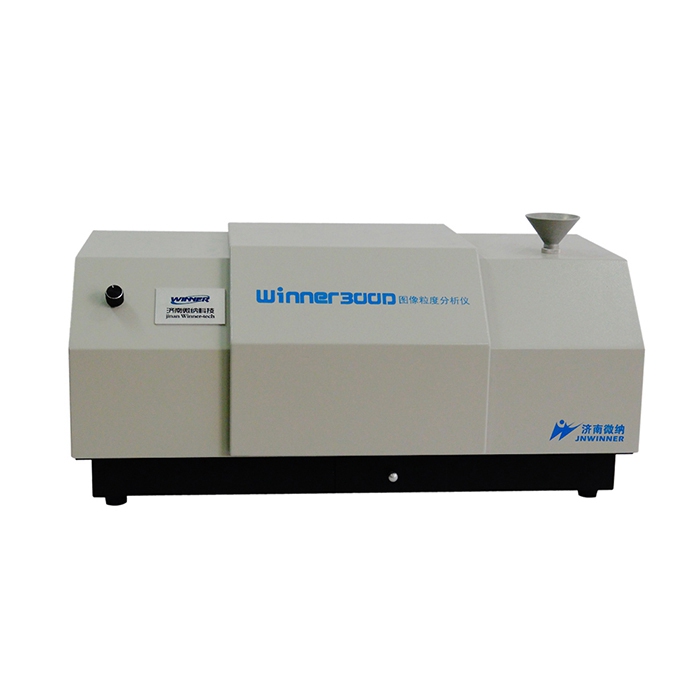

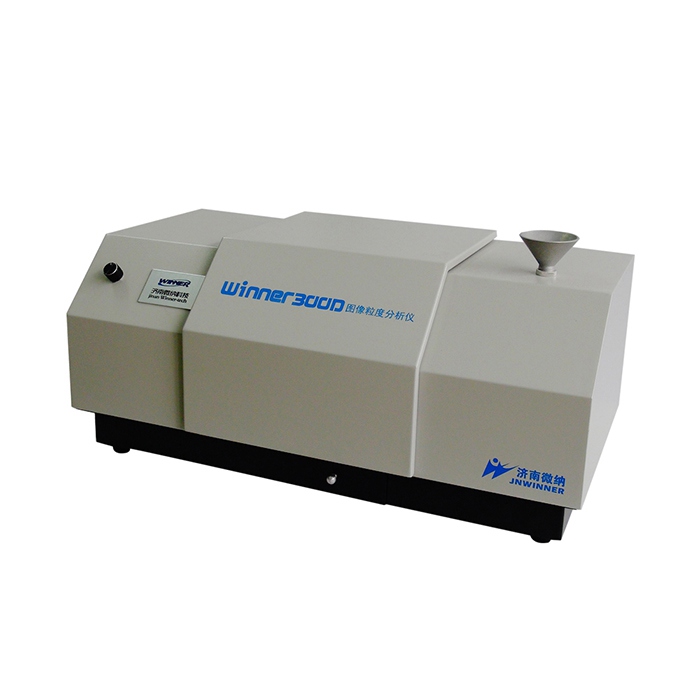

Winner300D Dynamic Particle Image Analyzer for powders

Jinan Winner Particle Instrument Stock Co., Ltd. launched an exclusive dynamic particle image analyzer --Winner300D, which test particle size distribution and Morphology in 10-8000 μm.(Implement International standard:ISO/DIS-13322-2 ), The image of sample particles can be captured in real time, stored and processed. The amount of sample is larger than statistic mode, the analysis result is more representative and reproducible

Products Description

Jinan Winner Particle Instrument Stock Co., Ltd. launched an exclusive dynamic particle image analyzer --Winner300D, which test particle size distribution and Morphology in 10-8000 μm.(Implement International standard:ISO/DIS-13322-2 ), The image of sample particles can be captured in real time, stored and processed. The amount of sample is larger than statistic mode, the analysis result is more representative and reproducible


Application:

All dry and flowing powdery materials can be rapidly analyzed, such as salt/sugar, plastics, catalysts, abrasives, carbon products, sand, coal, coffee, refractories, food, polystyrene, glass, ceramics, fertilizers, medicines, metal powder, standard products, cement, ore, etc.

Winner300D Dynamic Particle Image Analyzer for powders

Main Specification:


Model

Winner 300D

Execute Standard

ISO/DIS-13322-2

Size Range

30-10000um (The lower limit can be extended to 10um)

Lens group

High-definition telecentric lens (specifications optional)

Optical lighting

High light parallel light source

Accuracy error

<1% (CRM D50)

Repeatability error

<1% (CRM D50)

Number of particles analyzed

>100000 pieces/minute

High speed imaging module

Maximum frame rate 120 frames/S

Blanking method

Using electromagnetic pulse vibration 150 levels of speed adjustment and conversion

Decentralized approach

Electromagnetic vibration and ultrasonic dispersion

Dimension

L68.4*W36*H50cm

N.W.

24KG

Analysis Project

Particle size: including particle size distribution, D10, D50, D90 and other typical particle size values (can be customized), maximum particle size, customizable: interval content, content greater than or less than a certain particle size, particle gradation.

Particle shape: aspect ratio and distribution, circularity and distribution, particle image photos.

particle counting


Other functions of the software

Customized header to display logo, tester and other report information, task management mechanism, etc. Customizable display range



Feature:

1) Particle morphology analysis:

Offer Sphericity, circularity, roundness, aspect ratio, sphericity and other particle morphology prepositional parameters,and also add self-developed software for for particle circularity (roundness) computation module. the analysis of the particle circularity in line with US oil and gas standards: API_RP58. And geological plates suitable for this abrasive, oil and gas and other industry standards.


2) Compared with the static sample preparation method of the static imager, Winner300D can measure the massive particle data, which is of great significance for the representativeness of the particle data.


3) Higher clarity: The combination of wide field, far-reaching central light path and constrained plane sampling window can effectively improve the clarity of particle sample photos


4) Off-line testing (test data can be obtained in 2 minutes by adding offline samples to the tank)


On-line testing is available (by installing on-line sampling device, on-line testing can be realized, and the state changes of samples in different sampling periods can be obtained)


Analysis Software Function:

1) Task management mechanism: according to the task management, ensure that the data management is in good order.

2) Video acquisition: Video and pictures are collected at any time to retain the required video data.

3) Scale calibration: Through scale calibration operation, the actual size can be correlated, so that the actual size value can be obtained directly on the image.

4) Picture batch processing mode: With this mode, it can process while collecting, without memory limitation, and get more accurate data by processing a large number of pictures.

5) Tool Set for Automatic Particle Processing: 12 Automatic Processing Tools: Automatic Elimination of Particle Adhesion, Automatic Elimination of Miscellaneous Points, Automatic Elimination of Incomplete Boundary Particles, Automatic Filling of Hollow Areas of Particles, Automatic Smoothing of Particle Edges, etc.

6) Dynamic processing mode: This mode is suitable for processing dynamic flow samples.

7) Report Output: choose the report output style and data type, and customize the report mode according to need.
